CARBURETOR
KE100-B11 1992 USA CANADA

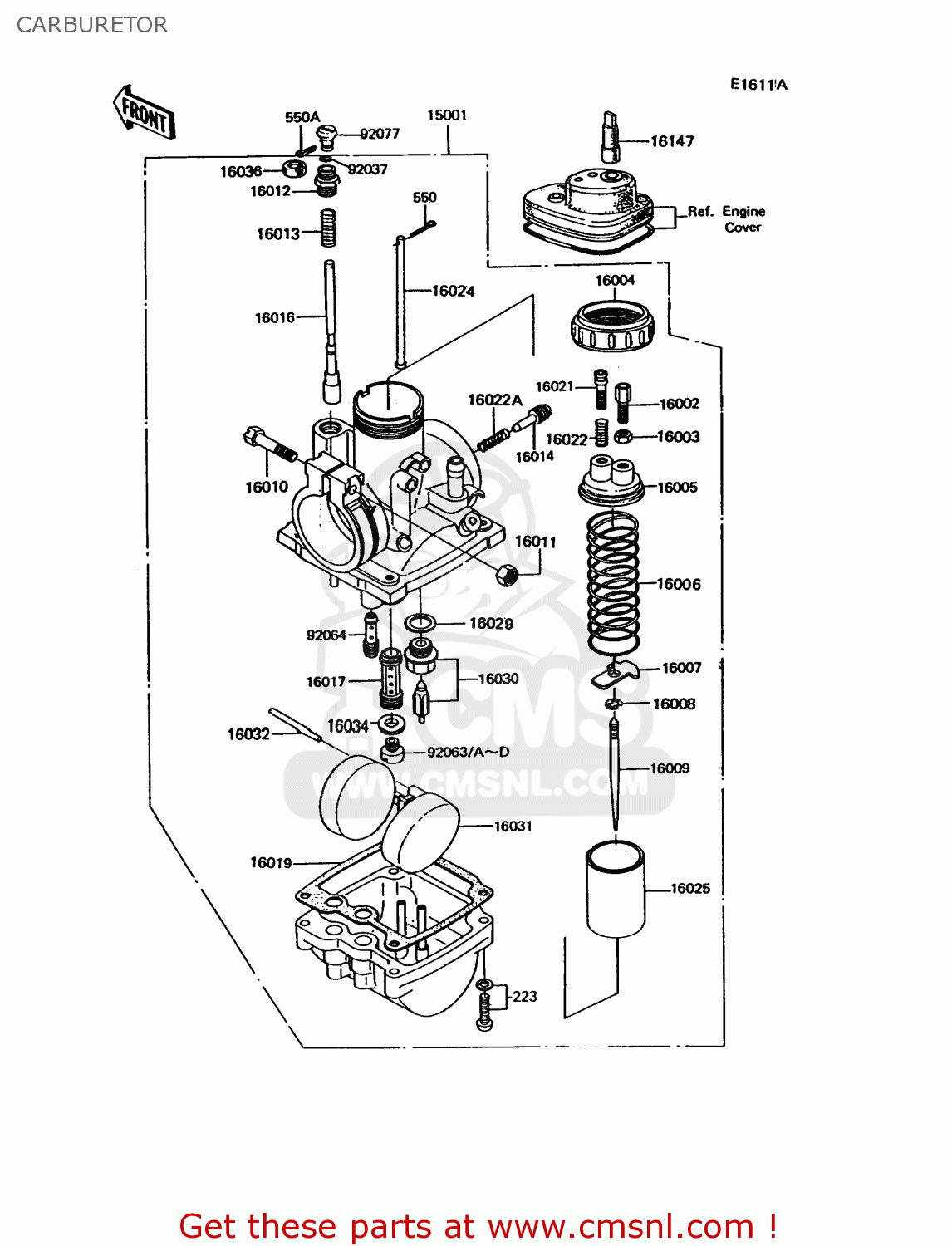

Carburetor diagram KE100-B11 1992 USA CANADA
CARBURETOR KE100-B11 1992 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
15001
150011191
ref: 15001
CN
CARBURETOR ASSEMBLY
€ 140.00
16002
16002017
ref: 16002
CN
ADJUSTER-CABLE
€ 8.00
16003
16003004
ref: 16003
CN
NUT-CABLE ADJUST LOCK
€ 4.50
16004
16004010
ref: 16004
CN
CAP-CHAMBER,MIXING
€ 13.50
16005
16005005
ref: 16005
CN
TOP-CHAMBER,MIXING
€ 12.50
16006
16006013
ref: 16006
CN
SPRING-THROTTLE VALVE
€ 10.00
16007
16007020
ref: 16007
CN
SEAT-SPRING,THROTTLE
€ 7.00
16008
16008010
ref: 16008
CN
CLAMP,E-TYPE
€ 5.00
16009
16009059
ref: 16009
CN
NEEDLE-JET,4EJ7
€ 26.50
16010
16010004
ref: 16010
CN
SCREW-CLAMP
€ 3.50
16011
16011002
ref: 16011
CN
NUT 6MM
€ 0.50
16012
16012021
ref: 16012
CN
CAP-STARTER PLUNGER
€ 11.50
16013
16013010
ref: 16013
CN
SPRING,STARTER PLUNGR
€ 3.50
16014
16014002
ref: 16014
CN
SCREW-PILOT AIR
€ 11.00
16016
16016012
ref: 16016
CN
PLUNGER,STARTER
€ 28.00
16017
16017081
ref: 16017
CN
JET,NEEDLE,#O-4
€ 69.50
16019
16019021
ref: 16019
CN
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
16021
16021002
ref: 16021
CN
SCREW-THROTTLE STOP
€ 12.00
16022
16022005
ref: 16022
CN
SPRING-THR STOP SCREW
€ 5.50
16022A
16022007
ref: 16022A
CN
SPRING-THR STOP SCREW
€ 5.50
16024
16024006
ref: 16024
CN
ROD-THROTTLE VLV STOP
€ 5.50
16025
16025057
ref: 16025
CN
VALVE-THROTTLE,CA2.0
€ 80.50
223
223B0418
ref: 223
CN
SCREW-PAN-WS-CROS
€ 1.00
550
550D1210
ref: 550
CN
PIN-COTTER,1.2X10
€ 1.50
550A
550D1615
ref: 550A
CN
PIN-COTTER,1.6X15
€ 1.50
16029
16029002
ref: 16029
CN
WASHER-VALVE SEAT
€ 2.50
16030
16030001
ref: 16030
CN
VALVE-FLOAT,#2.0
€ 40.50
16031
16031015
ref: 16031
CN
FLOAT
€ 40.50
16032
16032003
ref: 16032
CN
FLOAT PIN
€ 4.00
16034
16034001
ref: 16034
CN
WASHER-MAIN JET
€ 2.50
16036
16036012
ref: 16036
CN
BOOT,STARTER PLUNGER
€ 4.50
16147
16147001
ref: 16147
CN
PLUG,12X40
€ 3.00
92037
920371077
ref: 92037
CN
CLAMP
€ 3.00
92063
92063093
ref: 92063
CN
MAIN JET,#85R
€ 10.50
92063A
920631030
ref: 92063A
CN
JET-MAIN,#A80R
€ 11.00
92063B
920631032
ref: 92063B
CN
JET-MAIN,#A77.5R
€ 10.00
92063C
92063109
ref: 92063C
CN
JET-MAIN,#75R
€ 10.50
92063D
92063124
ref: 92063D
CN
MAIN JET,#82.5R
€ 10.50
92064
92064020
ref: 92064
CN
JET-PILOT,#17.5
€ 13.50
92077
92077022
ref: 92077
CN
KNOB,CARBURETOR
€ 7.00
