REAR HUB
KDX50-A3 KDX50 2005 USA CANADA

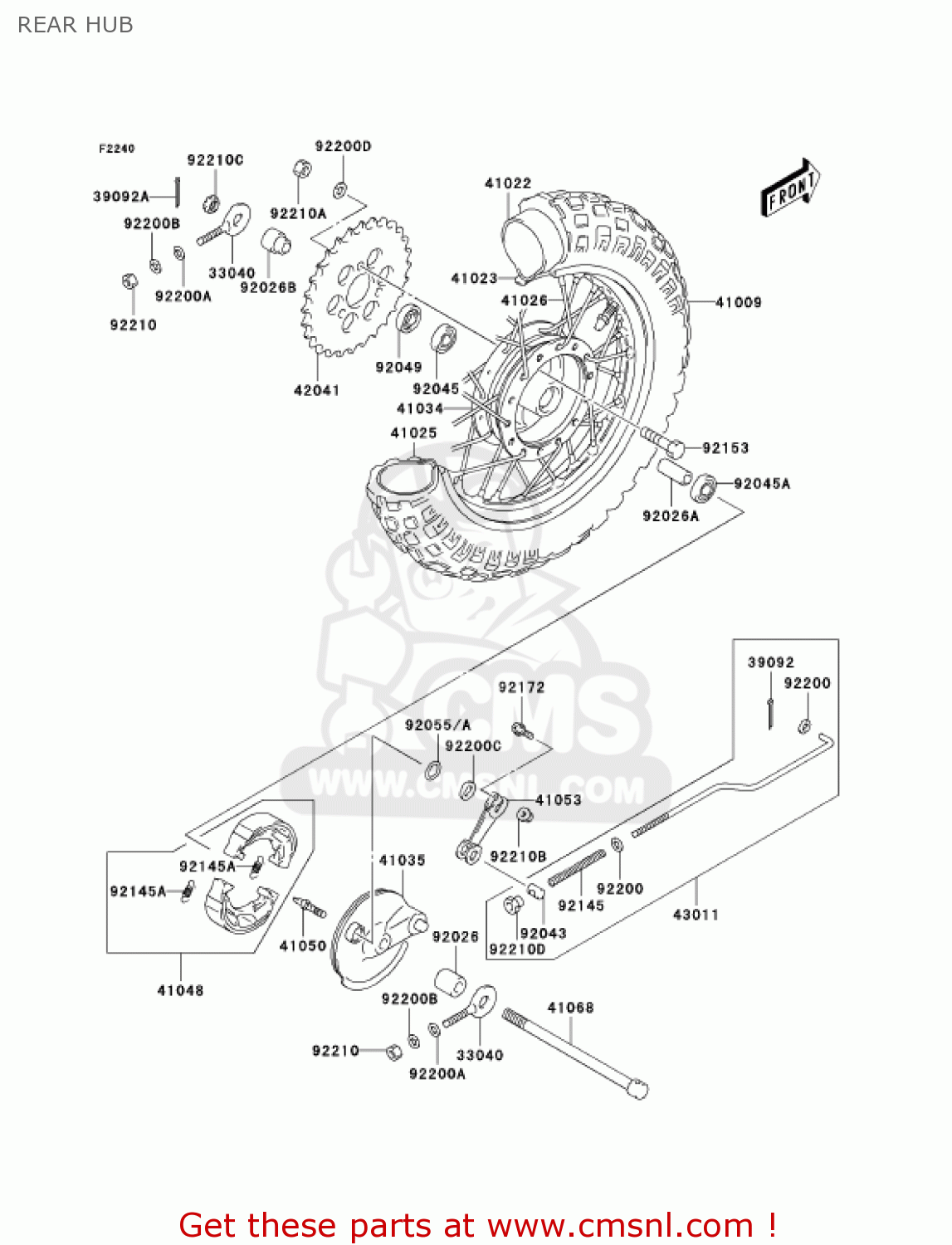

Rear hub diagram KDX50-A3 KDX50 2005 USA CANADA
REAR HUB KDX50-A3 KDX50 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
33040
33040S003
ref: 33040
ADJUSTER-CHAIN
€ 3.50
39092
39092S004
ref: 39092
PIN-HAIR,FR FOOTREST
€ 1.50
39092A
39092S005
ref: 39092A
PIN-HAIR,BRAKE PEDAL
€ 1.50
41009
41009S014
ref: 41009
TIRE,2.50-10
€ 23.00
41022
41022S005
ref: 41022
TUBE-TIRE
€ 9.00
41023
41023S005
ref: 41023
BAND-RIM
€ 1.50
41025
41025S010
ref: 41025
RIM,1.40X10
€ 34.50
41026
41026S005
ref: 41026
SPOKE-ASSY
€ 12.00
41034
41034S006
ref: 41034
DRUM-ASSY,REAR WHEEL
€ 52.50
41035
41035S005
ref: 41035
PANEL-ASSY-BRAKE
€ 35.00
41048
41048S008
ref: 41048
SHOE-BRAKE (NAS)
€ 22.00
41050
41050S007
ref: 41050
CAM-BRAKE
€ 8.50
41053
41053S010
ref: 41053
LEVER-BRAKE CAM
€ 5.50
41068
41068S010
ref: 41068
AXLE
€ 8.50
42041
42041S007
ref: 42041
SPROCKET-HUB,28T
€ 21.00
43011
43011S003
ref: 43011
ROD-BRAKE
€ 4.50
92026
92026S111
ref: 92026
SPACER
€ 3.00
92026A
92026S117
ref: 92026A
SPACER,WHEEL HUB BEAR
€ 3.50
92026B
92026S118
ref: 92026B
SPACER
€ 3.00
92043
92043S006
ref: 92043
PIN
€ 3.00
92045
92045S055
ref: 92045
BEARING-BALL,FRONT WH
€ 8.50
92045A
92045S056
ref: 92045A
BEARING-BALL,FRONT WH
€ 9.50
92049
92049S055
ref: 92049
SEAL-OIL,WHEEL HUB
€ 2.50
92055A
92055S091
ref: 92055A
RING-O
€ 1.00
92145
92145S046
ref: 92145
SPRING,REAR BRAKE ROD
€ 1.50
92145A
92145S122
ref: 92145A
SPRING,BRAKE SHOE
€ 1.50
92153
92153S311
ref: 92153
BOLT,8X36
€ 1.50
92172
92172S192
ref: 92172
SCREW,FRONT BRAKE
€ 1.00
92200
92200S002
ref: 92200
WASHER
€ 1.50
92200A
92200S003
ref: 92200A
WASHER
€ 1.50
92200B
92200S102
ref: 92200B
WASHER,CHAIN ADJUSTER
€ 1.50
92200C
92200S177
ref: 92200C
WASHER,10.5X18X1
€ 1.50
92200D
92200S178
ref: 92200D
WASHER
€ 1.50
92210
92210S001
ref: 92210
NUT
€ 1.50
92210A
92210S051
ref: 92210A
NUT
€ 1.00
92210B
92210S067
ref: 92210B
NUT
€ 1.50
92210C
92210S119
ref: 92210C
NUT,FRONT AXLE
€ 2.00
92210D
92210S120
ref: 92210D
NUT
€ 2.00
