REAR HUB
KDX250-D2 1992 AL

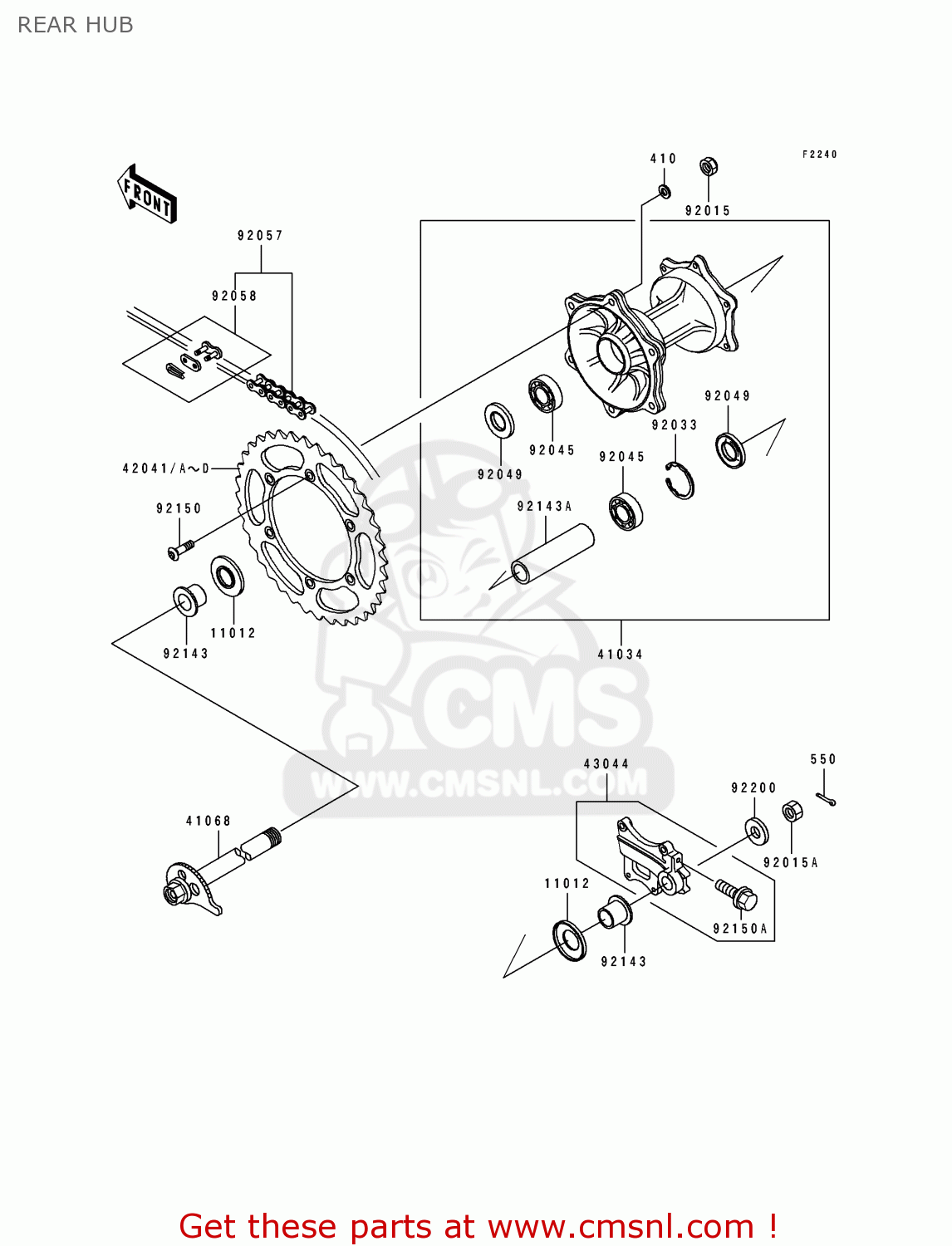

Rear hub diagram KDX250-D2 1992 AL
REAR HUB KDX250-D2 1992 AL
×
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
€ 4.00
41034
410341216
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 424.50
41068
410681325
ref: 41068
AXLE,RR
€ 61.00
42041
420411381
ref: 42041
SPROCKET-HUB,46T
€ 38.50
42041A
420411382
ref: 42041A
SPROCKET-HUB,47T
€ 38.50
42041B
420411383
ref: 42041B
SPROCKET, HUB, 48T
€ 38.50
42041C
420411384
ref: 42041C
SPROCKET-HUB,49T
€ 38.50
42041D
420411413
ref: 42041D
SPROCKET-HUB,45T
€ 38.50
43044
430441099
ref: 43044
HOLDER-COMP-CALIPER
€ 106.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151770
ref: 92015A
NUT,LOCK,20MM
€ 19.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
€ 30.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571117
ref: 92057
CHAIN,DRIVE,112L
€ 50.00
92058
920581051
ref: 92058
JOINT-CHAIN
€ 6.00
92143
921431259
ref: 92143
COLLAR,RR AXLE,L=22
€ 26.00
92143A
921431402
ref: 92143A
COLLAR,RR BRAKE DRUM,
€ 10.50
92150
921501196
ref: 92150
BOLT,SOCKET,8X28
€ 5.50
92150A
921501506
ref: 92150A
BOLT
€ 3.00
92200
922001146
ref: 92200
WASHER,20.2X36X2
€ 3.00
