FENDER
KDX250-C3 1985 AUSTRALIA

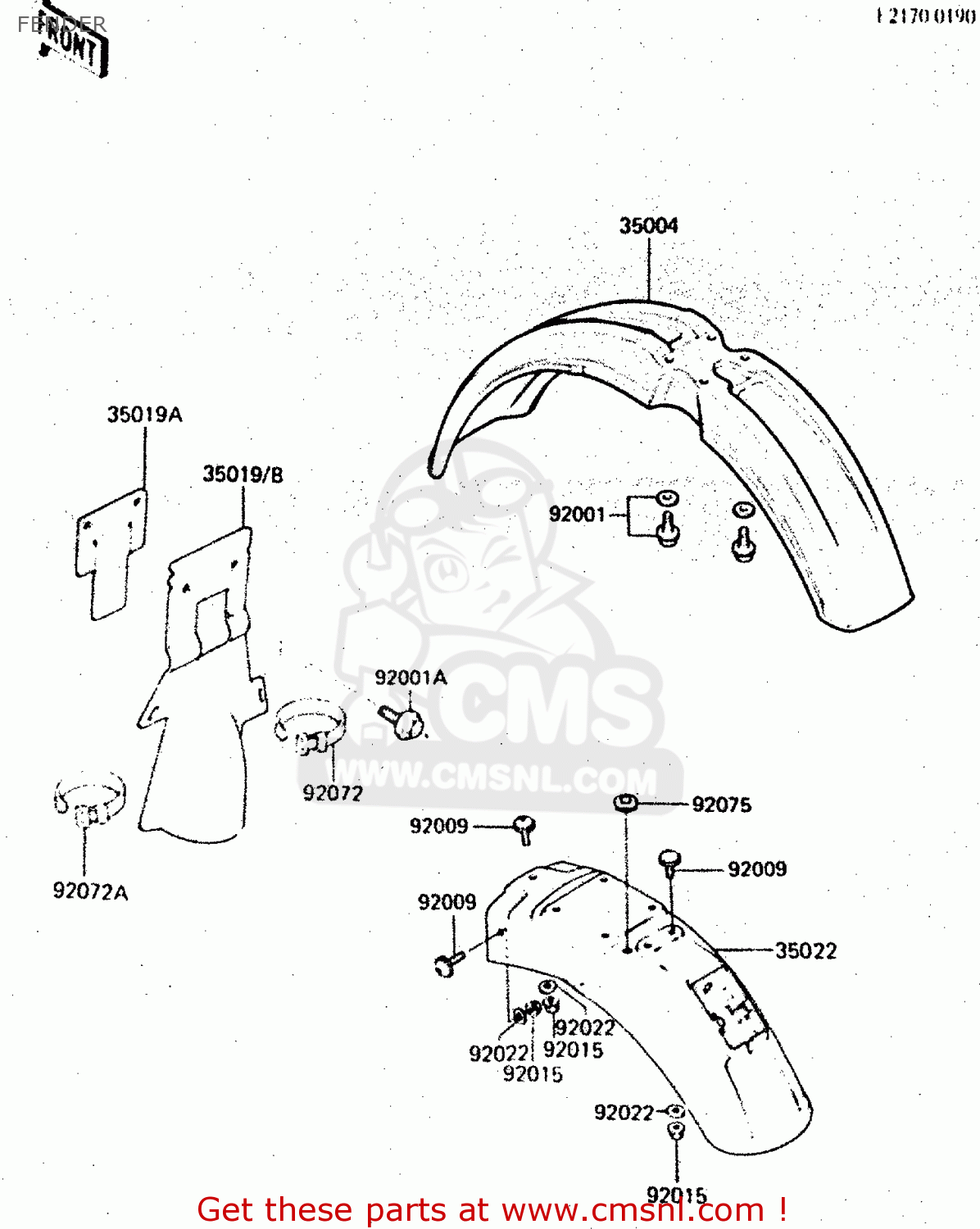

Fender diagram KDX250-C3 1985 AUSTRALIA
FENDER KDX250-C3 1985 AUSTRALIA
×
prices are in EUR
ref
part #
description
quantity
35004
3500410766W
ref: 35004
FENDER-FRONT,L.GREEN
€ 61.50
35019A
350191056
ref: 35019A
FLAP,FENDER,RR
€ 9.50
35019B
350191140
ref: 35019B
FLAP,FENDER,RR
€ 21.00
35022
3502211136W
ref: 35022
FENDER-COMP-REAR,L.GR
€ 91.00
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92001A
920011926
ref: 92001A
BOLT,6X14
€ 2.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92075
92075051
ref: 92075
DAMPER RUBBER
€ 2.50
