FRAME

KDX220-A8 KDX220R 2001 USA CANADA

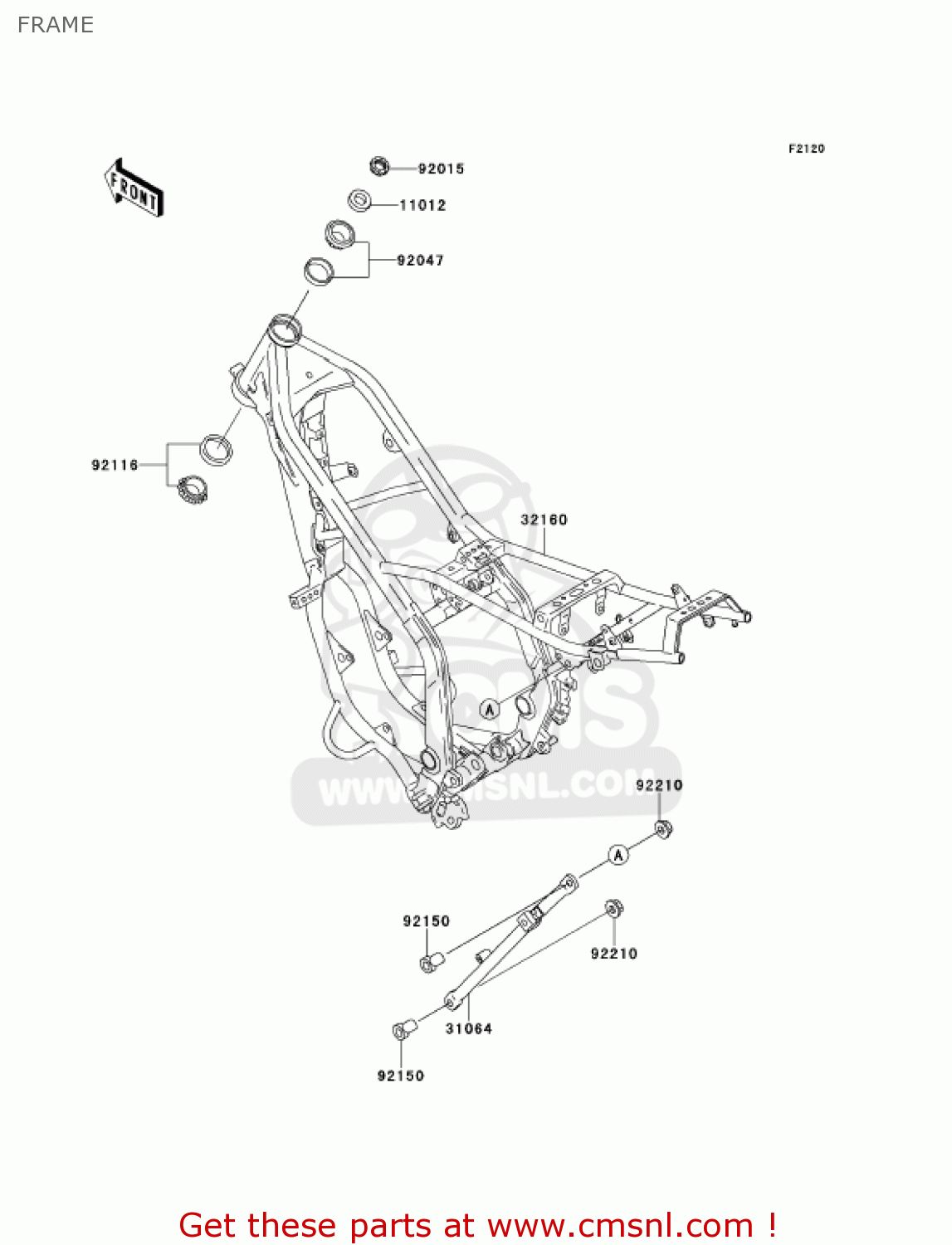

Frame diagram KDX220-A8 KDX220R 2001 USA CANADA

FRAME KDX220-A8 KDX220R 2001 USA CANADA

FRAME KDX220-A8 KDX220R 2001 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121762
ref: 11012

CAP,STEERING STEM

€ 4.00

31064

310641163CC
ref: 31064

PIPE-COMP,SUB FRAME,L

€ 184.50

32160

321601350CC
ref: 32160

FRAME-COMP,L.GREEN

€ 1,153.50

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92116

921161069
ref: 92116

BEARING-ROLLER

€ 69.50

92150

921501221
ref: 92150

BOLT,SOCKET,10X23

€ 3.50

92210

922101080
ref: 92210

NUT

€ 7.00
