Genuine KDX Kawasaki Parts delivered quickly!


FRONT FORK(KDX220-A5/A6/A7)

KDX220-A6 KDX220R 1999 USA CANADA

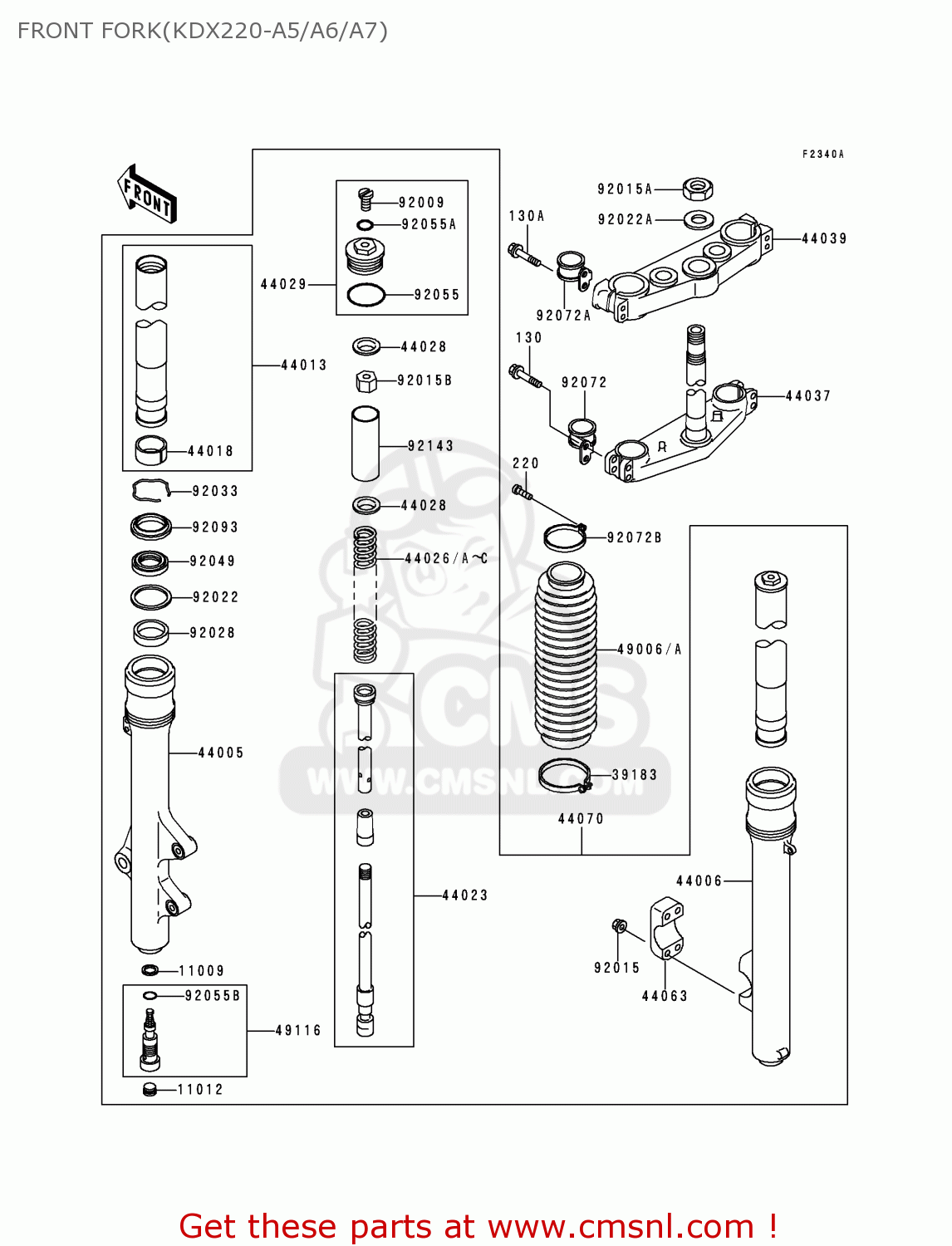

Front fork(kdx220-a5/a6/a7) diagram KDX220-A6 KDX220R 1999 USA CANADA

FRONT FORK(KDX220-A5/A6/A7) KDX220-A6 KDX220R 1999 USA CANADA
FRONT FORK(KDX220-A5/A6/A7) KDX220-A6 KDX220R 1999 USA CANADA
FRONT FORK(KDX220-A5/A6/A7) KDX220-A6 KDX220R 1999 USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
110091592
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
110121381
€ 3.50
39183
391831060
ref: 39183
BAND-ASSY,BOOT
€ 7.00
44005
440051345
ref: 44005
PIPE-LEFT FORK OUTER
€ 380.50
44006
440061343
ref: 44006
PIPE-RIGHT FORK OUTER
440061343
€ 362.00
44013
440131403
ref: 44013
PIPE-FORK INNER
€ 323.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
440181056
€ 19.00
44023
440231109
ref: 44023
CYLINDER-COMP-FORK
440231109
€ 239.00
44026
440261574
ref: 44026
SPRING-FRONT FORK,K=0
€ 76.00
44026A
440261575
ref: 44026A
SPRING-FRONT FORK,K=0
€ 76.00
44026B
440261576
ref: 44026B
SPRING-FRONT FORK,K=0
€ 76.00
44026C
440261638
ref: 44026C
SPRING-FRONT FORK,K=0
€ 76.00
44028
440281010
ref: 44028
GUIDE-FORK SPRING
440281010
€ 7.00
44029
440291152
ref: 44029
SEAT-FORK SPRING
440291152
€ 50.50
44037
440371369
ref: 44037
HOLDER-FORK UNDER
440371369
€ 557.00
44039
440391256
ref: 44039
HOLDER-FORK UPPER
440391256
€ 249.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
440631056
€ 41.50
44070
440701576
ref: 44070
DAMPER-ASSY,FORK SET
€ 1,603.00
49006
490061296BD
ref: 49006
BOOT,FORK,BLACK
490061296BD
€ 59.50
49116
491161132
ref: 49116
VALVE-ASSY,FORK
€ 155.50
92009
920091568
ref: 92009
SCREW
920091568
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
920151653
€ 11.50
92015B
920151839
ref: 92015B
NUT
920151839
€ 13.50
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92022A
920221873
ref: 92022A
WASHER
920221873
€ 5.00
92028
920281581
ref: 92028
BUSHING
920281581
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920491316
ref: 92049
SEAL-OIL,FORK OUTER T
920491316
€ 19.00
92055
920551123
ref: 92055
RING-O
920551123
€ 4.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92055B
920551502
ref: 92055B
RING-O,FORK VALVE
920551502
€ 5.00
92072
920721166
ref: 92072
BAND,CABLE
920721166
€ 18.00
92072A
920721268
ref: 92072A
BAND
920721268
€ 14.50
92072B
920721316
ref: 92072B
BAND,BOOT
920721316
€ 7.50
92093
920931260
ref: 92093
SEAL,FORK DUST
920931260
€ 18.00
130
130G0845
ref: 130
BOLT,FLANGET,8X45
130G0845
€ 1.00
130A
130G0850
ref: 130A
BOLT,8X50
130G0850
€ 1.00
220
220B0416
ref: 220
SCREW-PAN-CROS
220B0416
€ 2.00
92143
921431645
ref: 92143
COLLAR,FORK,L=90
€ 16.00
