TRANSMISSION
KDX220-A12 KDX220R 2005 USA CANADA

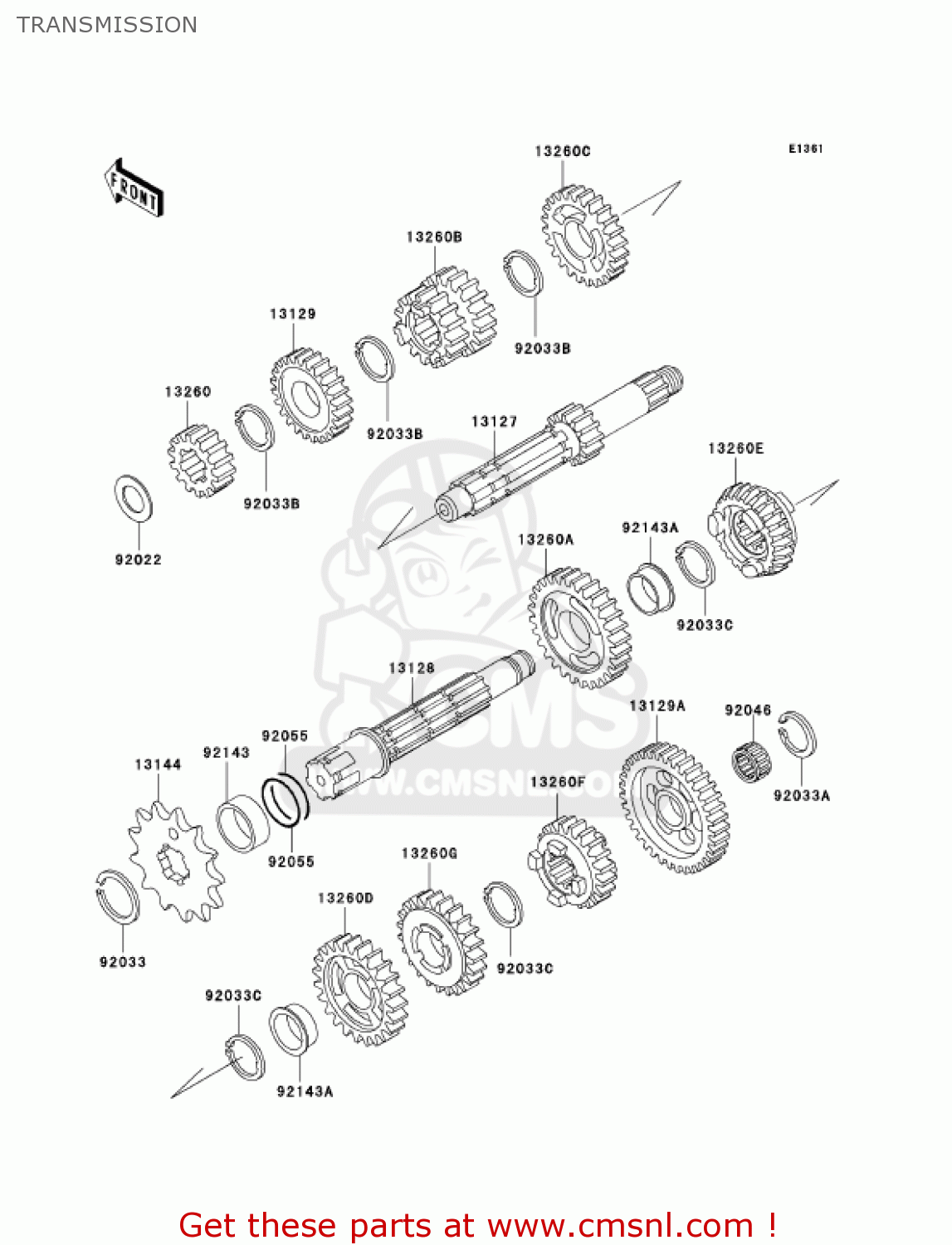

Transmission diagram KDX220-A12 KDX220R 2005 USA CANADA
TRANSMISSION KDX220-A12 KDX220R 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271237
ref: 13127
SHAFT-TRANSMISSION IN
€ 179.50
13128
131281164
ref: 13128
SHAFT-TRANSMISSION OU
€ 154.50
13129
131291753
ref: 13129
GEAR,INPUT 5TH,24T
€ 82.50
13129A
131291755
ref: 13129A
GEAR,OUTPUT LOW,35T
€ 85.50
13144
131441027
ref: 13144
ENGINE SPROCKET,13T
€ 28.50
13260
132601003
ref: 13260
GEAR,INPUT 2ND,14T
€ 63.50
13260A
132601004
ref: 13260A
GEAR,OUTPUT 2ND,28T
€ 87.00
13260B
132601006
ref: 13260B
GEAR,INPUT 3RD&4TH,15
€ 81.50
13260C
132601425
ref: 13260C
GEAR,INPUT TOP,23T
€ 87.00
13260D
132601426
ref: 13260D
GEAR,OUTPUT 3RD,23T
€ 87.00
13260E
132601427
ref: 13260E
GEAR,OUTPUT 5TH,25T
€ 83.00
13260F
132601489
ref: 13260F
GEAR,OUTPUT TOP,20T
€ 92.50
13260G
132601567
ref: 13260G
GEAR,OUTPUT 4TH,21T
€ 87.00
92022
92022170
ref: 92022
WASHER-THRUST
€ 6.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033032
ref: 92033A
CIRCLIP
€ 3.00
92033B
920331231
ref: 92033B
RING-SNAP,20MM
€ 3.50
92033C
920331258
ref: 92033C
RING-SNAP,20MM
€ 4.00
92046
920461059
ref: 92046
BEARING-NEEDLE,K17X23
€ 20.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431433
ref: 92143
COLLAR
€ 9.50
92143A
921431472
ref: 92143A
COLLAR
€ 18.50
