SWINGARM
KDX220-A11 KDX220R 2004 USA CANADA

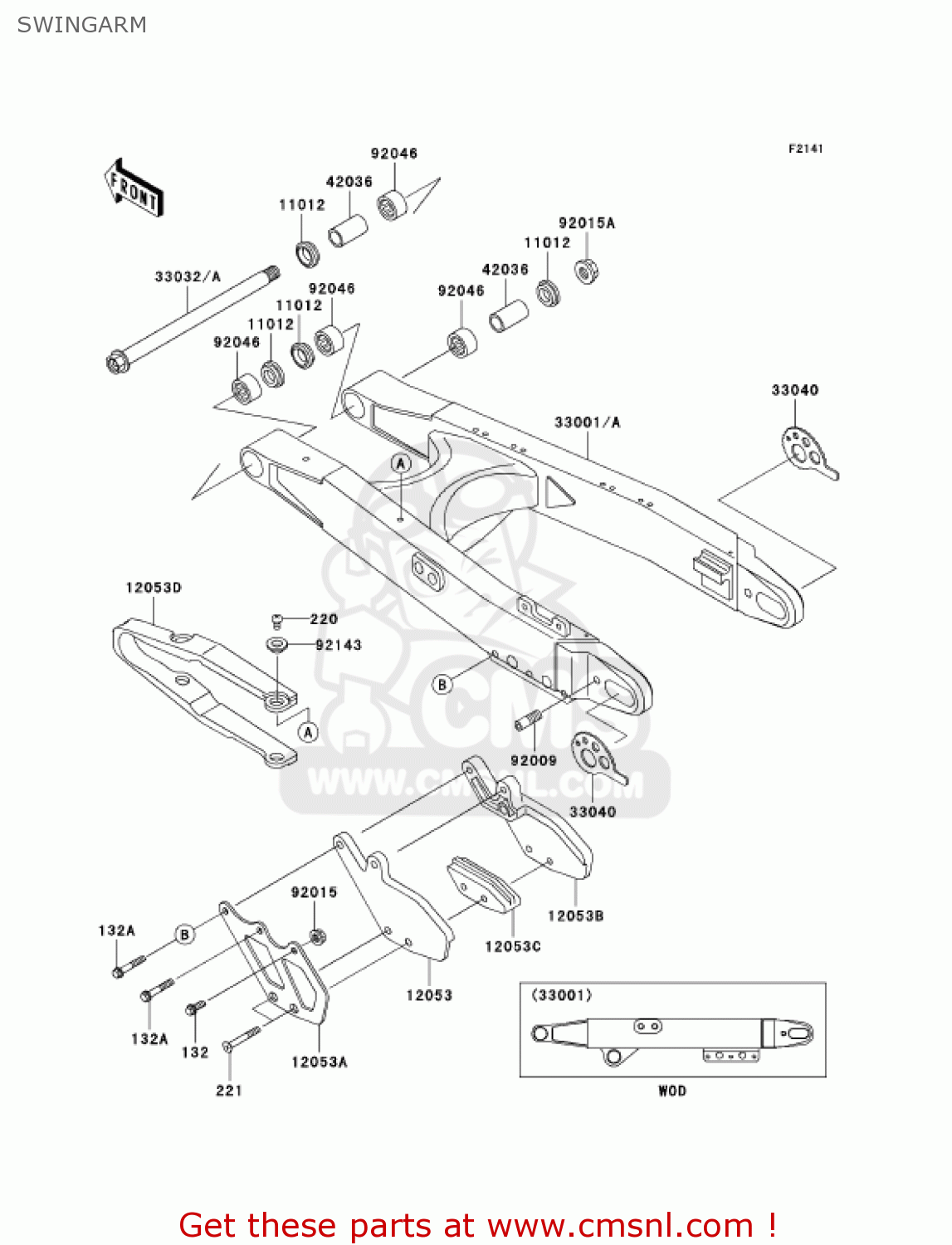

Swingarm diagram KDX220-A11 KDX220R 2004 USA CANADA
SWINGARM KDX220-A11 KDX220R 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
221
221B0645
ref: 221
SCREW-CSK-CROS,6X45
€ 2.50
11012
110121259
ref: 11012
CAP,SWING ARM
€ 15.00
12053
120531234
ref: 12053
GUIDE-CHAIN,RR,INSIDE
€ 19.50
12053A
120531235
ref: 12053A
GUIDE-CHAIN,RR,OUTSID
€ 23.50
12053B
120531236
ref: 12053B
GUIDE-CHAIN,RR,OUTSID
€ 28.00
12053C
120531270
ref: 12053C
GUIDE-CHAIN,DRIVE,RR,
€ 33.00
12053D
120531328
ref: 12053D
GUIDE-CHAIN,DRIVE,FR
€ 36.00
33001
330011451CE
ref: 33001
ARM-COMP-SWING,SILVER
€ 1,147.50
33032A
330321137
ref: 33032A
SHAFT-SWING ARM
€ 43.00
33040
330401113
ref: 33040
ADJUSTER-CHAIN
€ 22.00
42036
420361056
ref: 42036
SLEEVE,SWING ARM
€ 13.50
92009
920091686
ref: 92009
SCREW,SET,10X29
€ 5.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151407
ref: 92015A
NUT,14MM
€ 6.50
92046
920461118
ref: 92046
BEARING-NEEDLE,TA2027
€ 23.00
92143
921431156
ref: 92143
COLLAR
€ 4.00
