REAR SUSPENSION
KDX200-H9 KDX200 2003

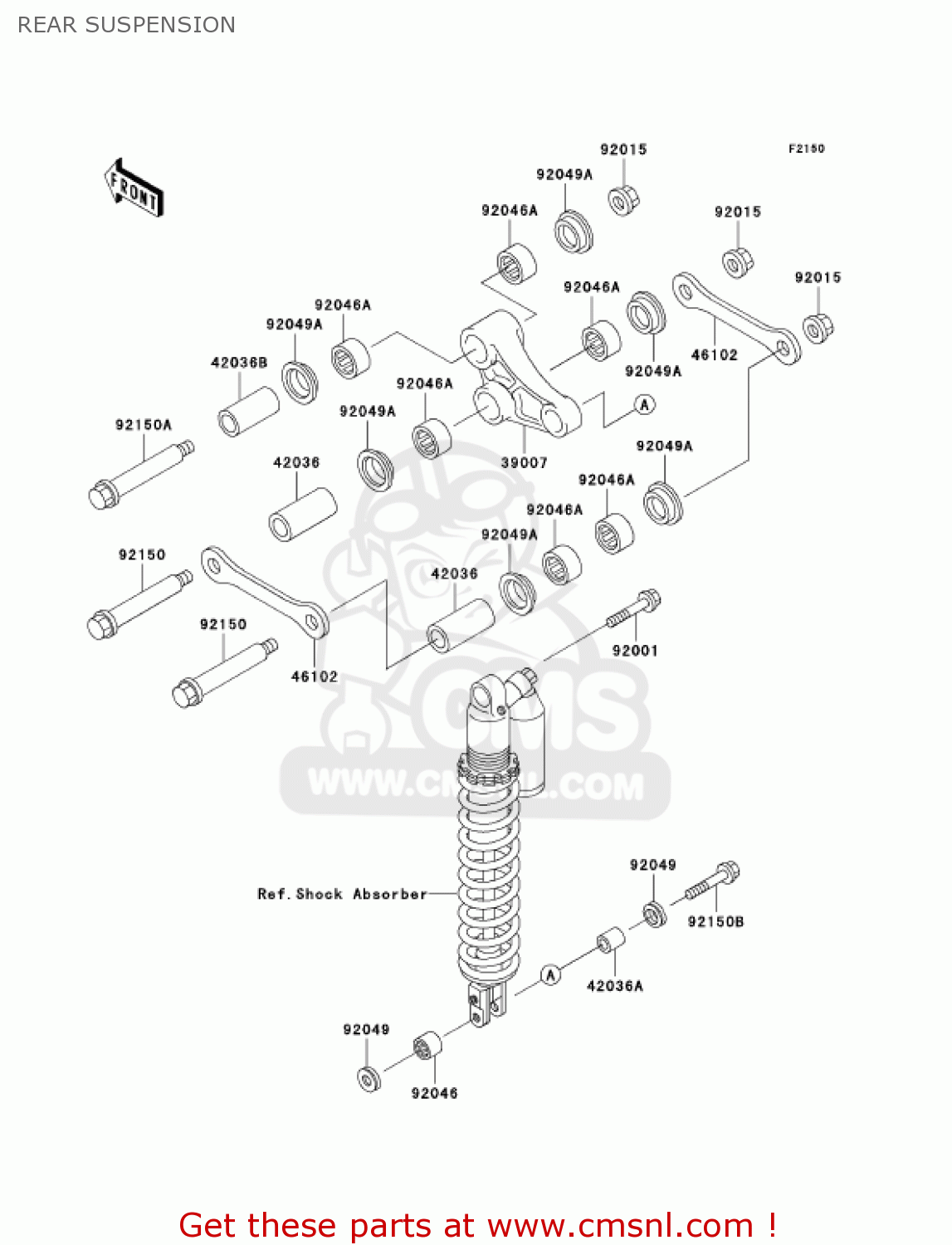

Rear suspension diagram KDX200-H9 KDX200 2003
REAR SUSPENSION KDX200-H9 KDX200 2003
×
prices are in EUR
ref
part #
description
quantity
39007
390071229
ref: 39007
ARM-SUSP,UNI TRAK
€ 173.50
42036
420361245
ref: 42036
SLEEVE,15X22X57
€ 14.50
42036A
420361248
ref: 42036A
SLEEVE,10X16X19
€ 6.50
42036B
420361309
ref: 42036B
SLEEVE,15X22X45
€ 15.50
46102
461021358
ref: 46102
ROD,SUSPENSION
€ 45.50
92001
920011499
ref: 92001
BOLT,10X44
€ 3.50
92015
920151433
ref: 92015
NUT,12MM
€ 6.00
92046
920461192
ref: 92046
BEARING-NEEDLE,16BM22
€ 19.50
92046A
920461216
ref: 92046A
BEARING-NEEDLE,22BM28
€ 22.50
92049
920491330
ref: 92049
SEAL-OIL
€ 9.00
92049A
920491402
ref: 92049A
SEAL-OIL,MHA22 28 5.7
€ 7.50
92150
921501213
ref: 92150
BOLT,ROD,12X85
€ 16.50
92150A
921501701
ref: 92150A
BOLT,FLANGED,12X76
€ 19.50
92150B
921501711
ref: 92150B
BOLT
€ 8.50
