CRANKCASE
KDX200-H6 2000 USA

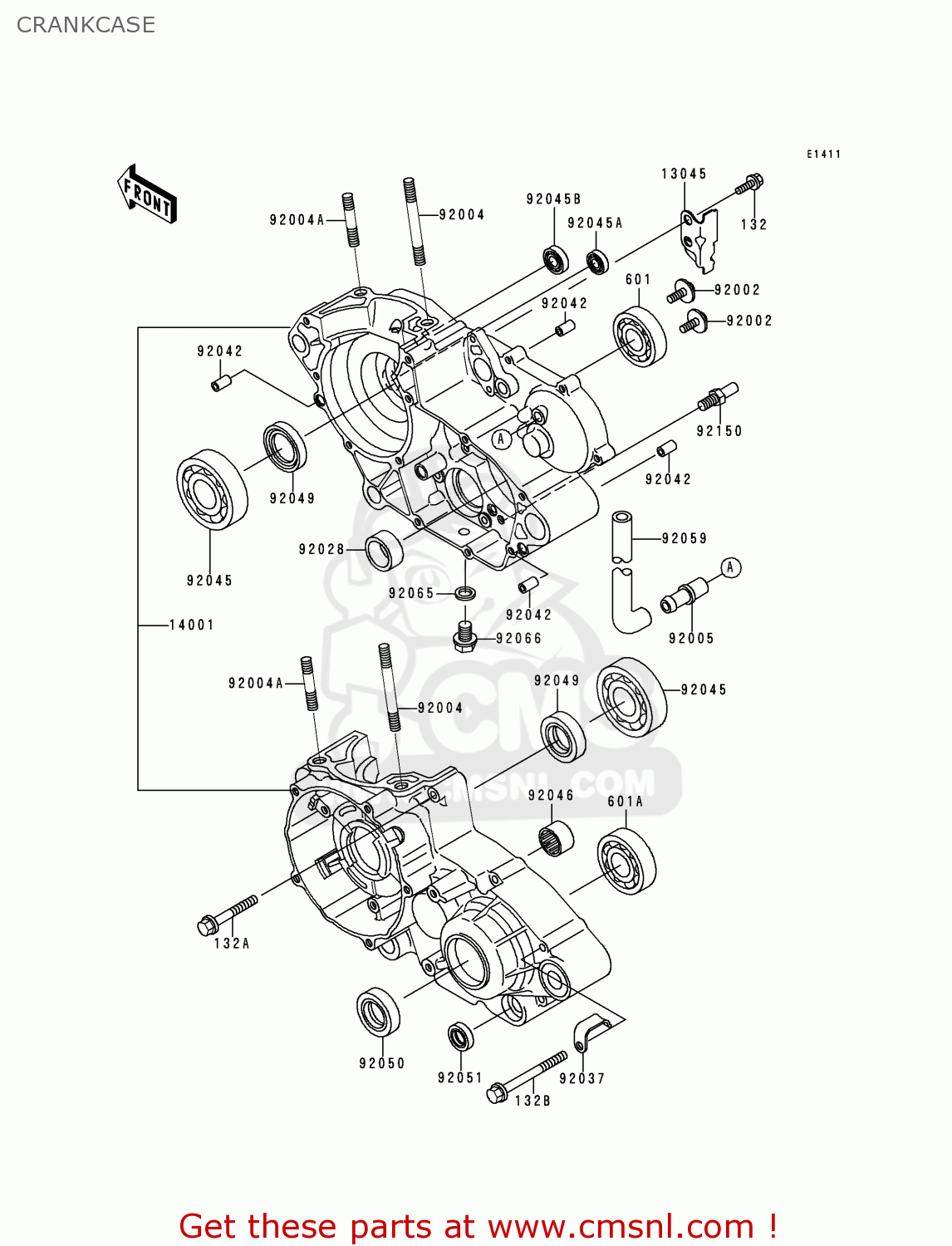

Crankcase diagram KDX200-H6 2000 USA
CRANKCASE KDX200-H6 2000 USA
×
prices are in EUR
ref
part #
description
quantity
132
132Y0614
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132Y0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
132B
132Y0660
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
601
601B6204
ref: 601
BEARING-BALL,#6204C3
€ 8.00
601A
601B6205
ref: 601A
BEARING-BALL,#6205C3
€ 14.00
13045
130451056
ref: 13045
RECEIVER-OIL
€ 3.50
14001
140011212
ref: 14001
SET-CRANKCASE
€ 835.00
92002
920021659
ref: 92002
BOLT
€ 3.00
92004
920041132
ref: 92004
STUD
€ 6.00
92004A
920041142
ref: 92004A
STUD,8X28.5
€ 6.00
92005
920051210
ref: 92005
FITTING,BREATHER
€ 8.50
92028
92028132
ref: 92028
BUSHING
€ 28.00
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92045
920451120
ref: 92045
BEARING-BALL,6305JR2C
€ 34.00
92045A
920451304
ref: 92045A
BEARING-BALL,626MC3
€ 11.00
92045B
920451305
ref: 92045B
BEARING-BALL,608MC3
€ 11.50
92046
92046026
ref: 92046
BEARING-NEEDLE,#7E-HK
€ 24.50
92049
920491365
ref: 92049
SEAL-OIL,TBY25X40X6
€ 8.00
92050
92050033
ref: 92050
SEAL-OIL,TB3040
€ 14.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92059
920591805
ref: 92059
TUBE,5X9X400,BLUE
€ 22.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661334
ref: 92066
PLUG,10MM
€ 4.00
92150
921501467
ref: 92150
BOLT,RETURN SPRING
€ 5.00
