ENGINE COVER(S)
KDX200-H6 2000 EUROPE

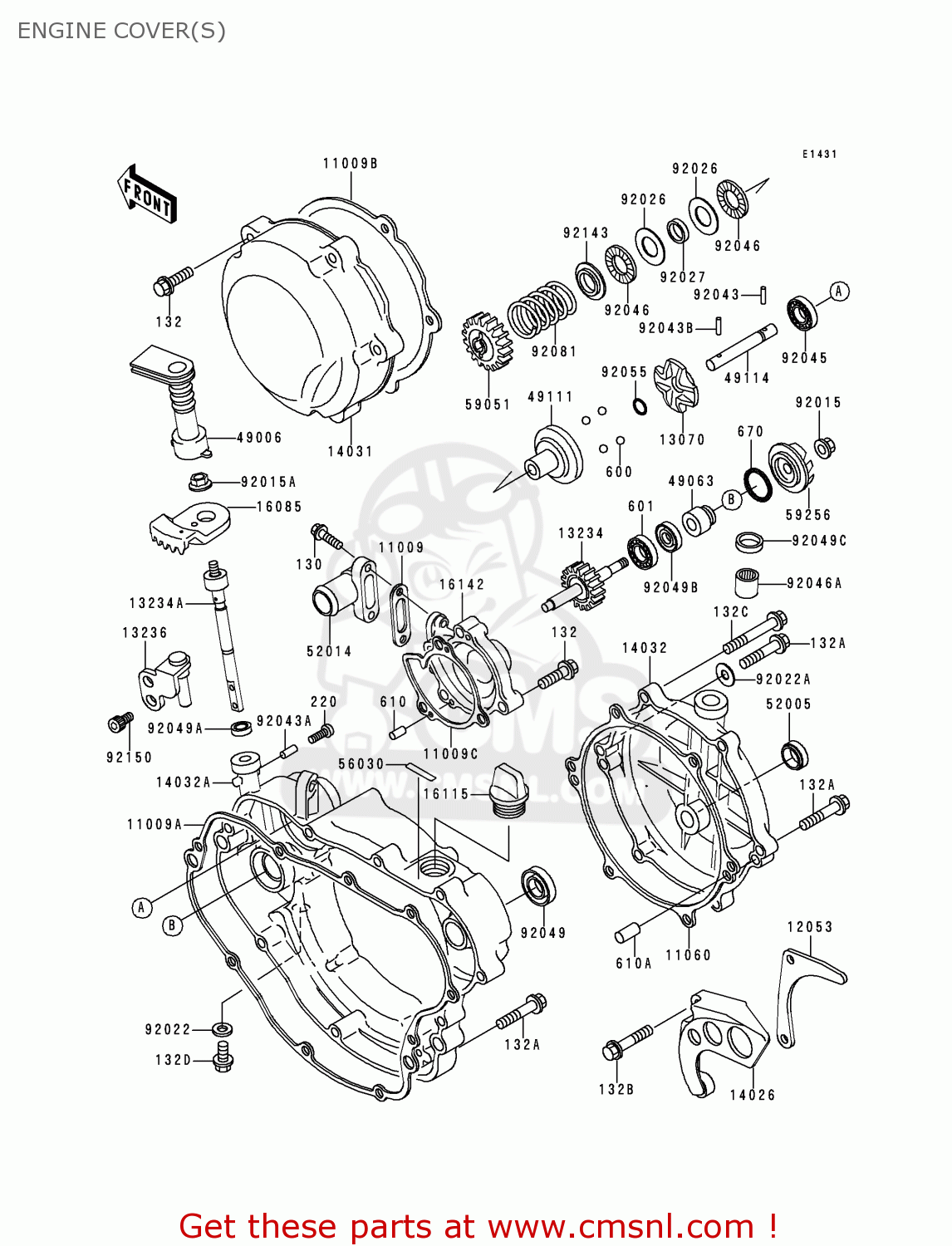

Engine cover(s) diagram KDX200-H6 2000 EUROPE
ENGINE COVER(S) KDX200-H6 2000 EUROPE
×
prices are in EUR
ref
part #
description
quantity
11009
110091952
ref: 11009
GASKET,ELBOW (NAS)
€ 3.50
11009A
110091996
ref: 11009A
GASKET,CLUTCH COVER (NAS)
€ 13.50
11009B
110091997
ref: 11009B
GASKET,GENERATOR COVE (NAS)
€ 10.00
11009C
110091998
ref: 11009C
GASKET,WATER PUMP COV (MCA)
€ 6.00
11060
110601630
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 13.50
12053
120531228
ref: 12053
GUIDE-CHAIN
€ 16.50
13070
130701122
ref: 13070
GUIDE
€ 45.50
13234
132341091
ref: 13234
SHAFT-COMP,PUMP
€ 60.00
13234A
132341101
ref: 13234A
SHAFT-COMP,GOVERNOR
€ 72.50
13236
132361260
ref: 13236
LEVER-COMP,GOVERNOR
€ 8.00
14026
140261159
ref: 14026
COVER-CHAIN
€ 17.00
14031
140311231
ref: 14031
COVER-GENERATOR
€ 48.50
14032
140321382
ref: 14032
COVER-CLUTCH,OUT
€ 72.00
14032A
140321418
ref: 14032A
COVER-CLUTCH
€ 221.50
16085
160851273
ref: 16085
GEAR
€ 73.50
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421090
ref: 16142
COVER-PUMP
€ 74.50
49006
490061291
ref: 49006
BOOT,GOVERNOR SHAFT
€ 5.00
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
49114
491141058
ref: 49114
SHAFT-GOVERNOR
€ 19.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141067
ref: 52014
ELBOW
€ 10.50
56030
560301150
ref: 56030
LABEL,CLUTCH COVER,0.
€ 3.00
59051
590511189
ref: 59051
GEAR-SPUR,GOVERNOR,18
€ 22.50
59256
592561063
ref: 59256
IMPELLER
€ 23.00
92015
920151365
ref: 92015
NUT,6MM
€ 3.00
92015A
920151572
ref: 92015A
NUT,6MM
€ 2.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92027
920271839
ref: 92027
COLLAR,15.2X17X4
€ 8.50
92043
920431256
ref: 92043
PIN,3X12.8
€ 3.00
92043A
920431293
ref: 92043A
PIN,2X9.8
€ 4.00
92043B
920431319
ref: 92043B
PIN,3X19.8
€ 2.50
92045
920451305
ref: 92045
BEARING-BALL,608MC3
€ 11.50
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92046A
920461230
ref: 92046A
BEARING-NEEDLE
€ 15.50
92049
92049013
ref: 92049
OIL SEAL,SB18307
€ 9.50
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
130
130Z0520
ref: 130
BOLT-FLANGED
€ 2.50
132
132Y0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132Y0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0640
ref: 132B
BOLT-FLANGED-SMALL
€ 3.50
132C
132Y0680
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132Y0810
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
601
601B6201U
ref: 601
BEARING-BALL,#6201LUC
€ 18.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
610A
610A0612
ref: 610A
ROLLER,6X12
€ 3.00
670
670B1506
ref: 670
O RING,6MM
€ 1.00
92049B
920491259
ref: 92049B
SEAL-OIL,SC12 28.555
€ 5.50
92049C
920491262
ref: 92049C
SEAL-OIL
€ 4.00
92055
920551343
ref: 92055
RING-O,5.5X1.5
€ 3.00
92081
920811769
ref: 92081
SPRING,GOVERNOR
€ 3.00
92143
921431001
ref: 92143
COLLAR
€ 15.50
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
