FRAME FITTINGS
KDX200-H5 1999 USA

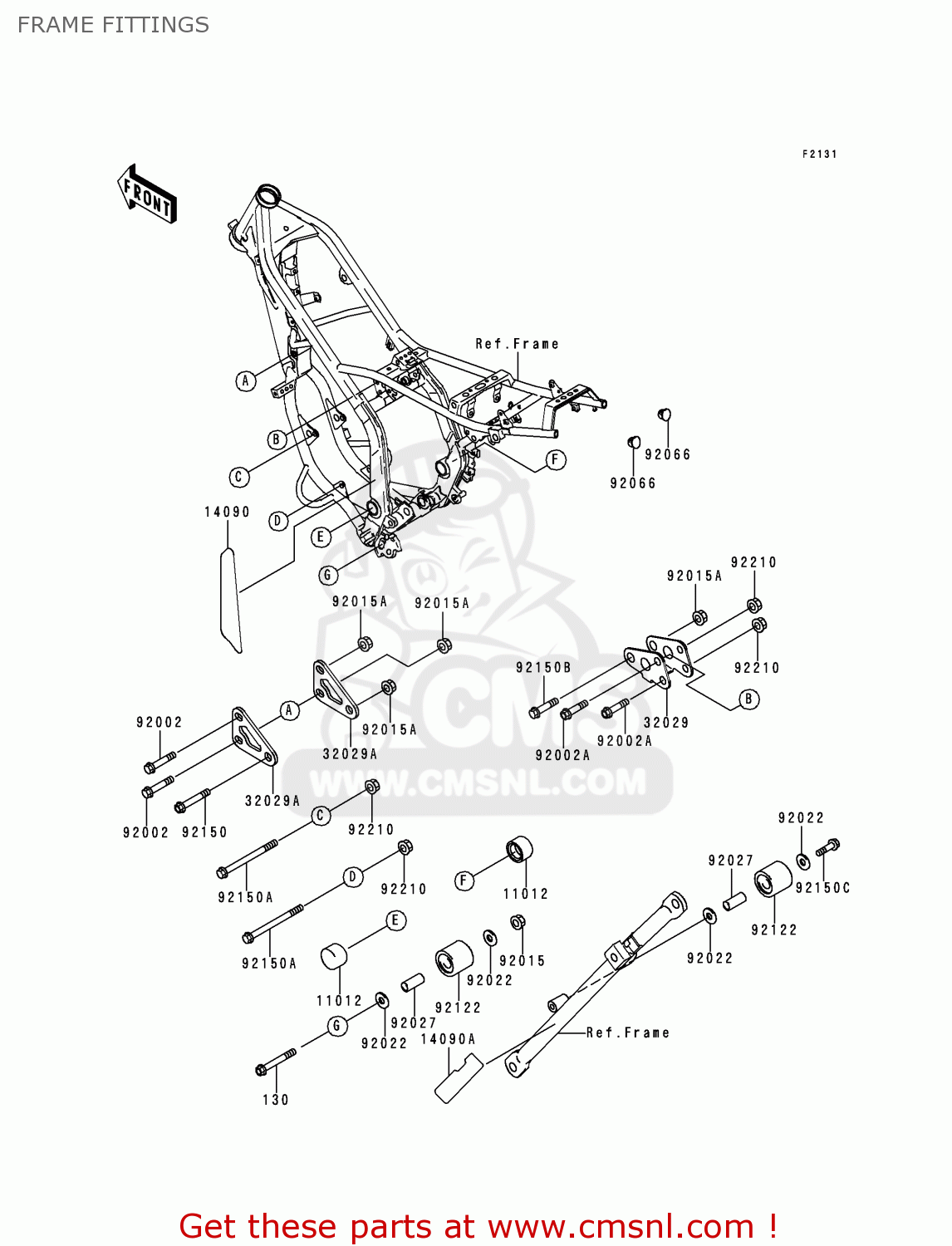

Frame fittings diagram KDX200-H5 1999 USA
FRAME FITTINGS KDX200-H5 1999 USA
×
prices are in EUR
ref
part #
description
quantity
130
130G0855
ref: 130
BOLT-FLANGED,8X55
€ 1.50
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
14090
140901514
ref: 14090
COVER
€ 9.00
14090A
140901557
ref: 14090A
COVER
€ 3.50
32029
320291913
ref: 32029
BRACKET-ENGINE,HEAD,R
€ 19.00
32029A
320291944
ref: 32029A
BRACKET-ENGINE
€ 18.00
92002
920021221
ref: 92002
BOLT
€ 5.00
92002A
920021850
ref: 92002A
BOLT,FLANGED,8X47
€ 3.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151668
ref: 92015A
NUT
€ 3.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92066
920661093
ref: 92066
PLUG
€ 3.50
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92150
921501227
ref: 92150
BOLT
€ 5.50
92150A
921501624
ref: 92150A
BOLT,FLANGED,10X105
€ 6.50
92150B
921501719
ref: 92150B
BOLT,FLANGED,10X51
€ 6.50
92150C
921501961
ref: 92150C
BOLT,FLANGED,8X40
€ 3.00
92210
922101080
ref: 92210
NUT
€ 7.00
