CLUTCH
KDX200-H4 1998 EUROPE UK FR

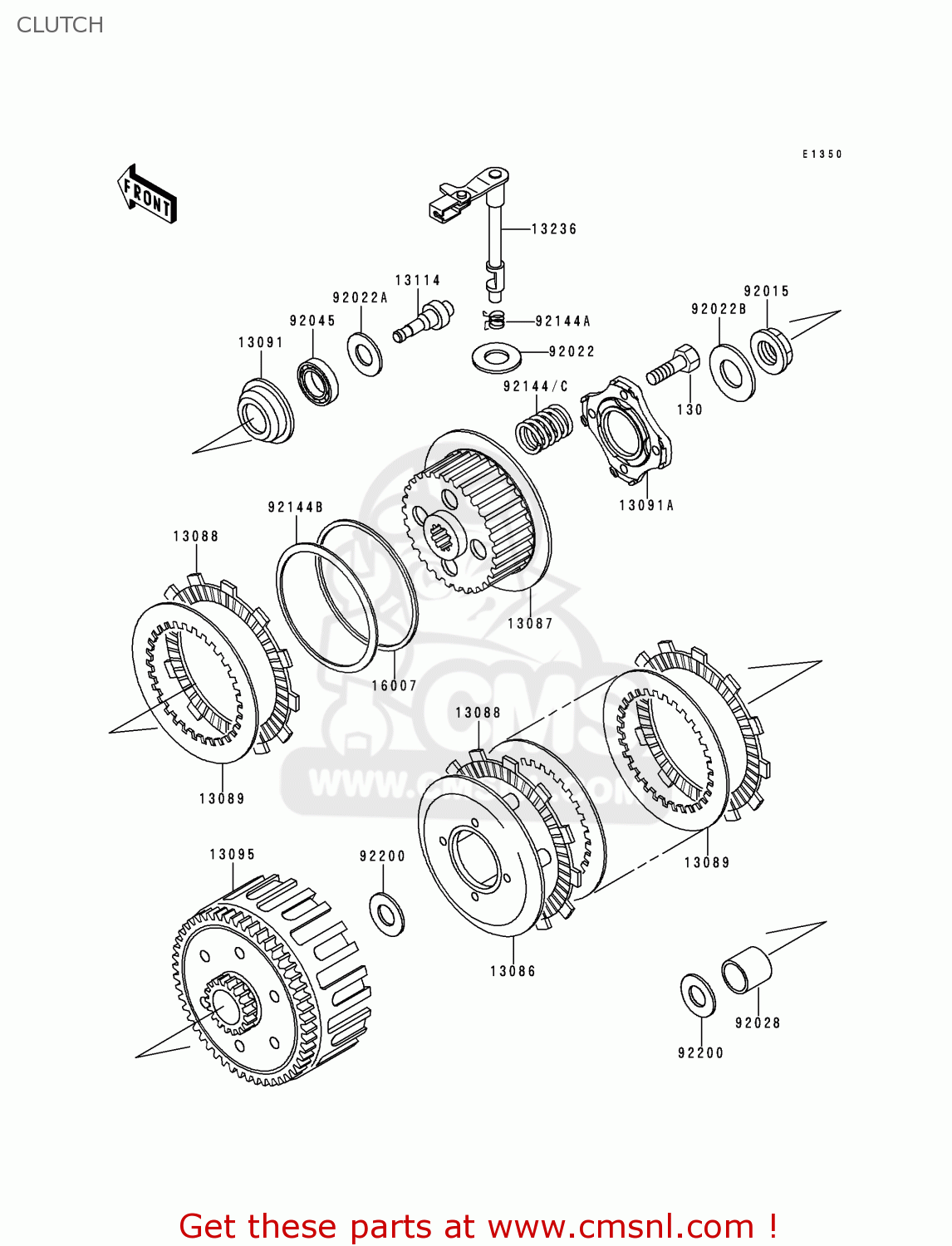

Clutch diagram KDX200-H4 1998 EUROPE UK FR
CLUTCH KDX200-H4 1998 EUROPE UK FR
×
prices are in EUR
ref
part #
description
quantity
130
130Y0625
ref: 130
BOLT-FLANGED
€ 2.00
13086
130861069
ref: 13086
WHEEL-CLUTCH
€ 61.00
13087
130871158
ref: 13087
HUB-CLUTCH
€ 89.00
13088
130881085
ref: 13088
PLATE-FRICTION (NAS)
€ 10.00
13089
130891076
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.50
13091
130911712
ref: 13091
HOLDER,CLUTCH PUSHER
€ 15.50
13091A
130911872
ref: 13091A
HOLDER,CLUTCH SPRING
€ 18.50
13095
130951287
ref: 13095
HOUSING-COMP-CLUTCH
€ 334.50
13114
131141067
ref: 13114
PUSHER-CLUTCH
€ 15.50
13236
132361264
ref: 13236
LEVER-COMP,CLUTCH REL
€ 34.00
16007
160071162
ref: 16007
SEAT-SPRING
€ 11.00
92015
920151581
ref: 92015
NUT,16MM
€ 13.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92022A
920221181
ref: 92022A
WASHER,10.2X14.5X1.0
€ 2.50
92022B
920221356
ref: 92022B
WASHER,16.3X29X1.75
€ 4.50
92028
920281388
ref: 92028
BUSHING,20X25X26.85
€ 19.50
92045
920451225
ref: 92045
BEARING-BALL,6000
€ 16.50
92144
921441160
ref: 92144
SPRING
€ 4.50
92144A
921441287
ref: 92144A
SPRING
€ 4.00
92144B
921441522
ref: 92144B
SPRING
€ 9.00
92200
922001238
ref: 92200
WASHER,20.3X30X2.3
€ 3.50
