GEAR CHANGE MECHANISM
KDX200-H2 1996 USA CANADA

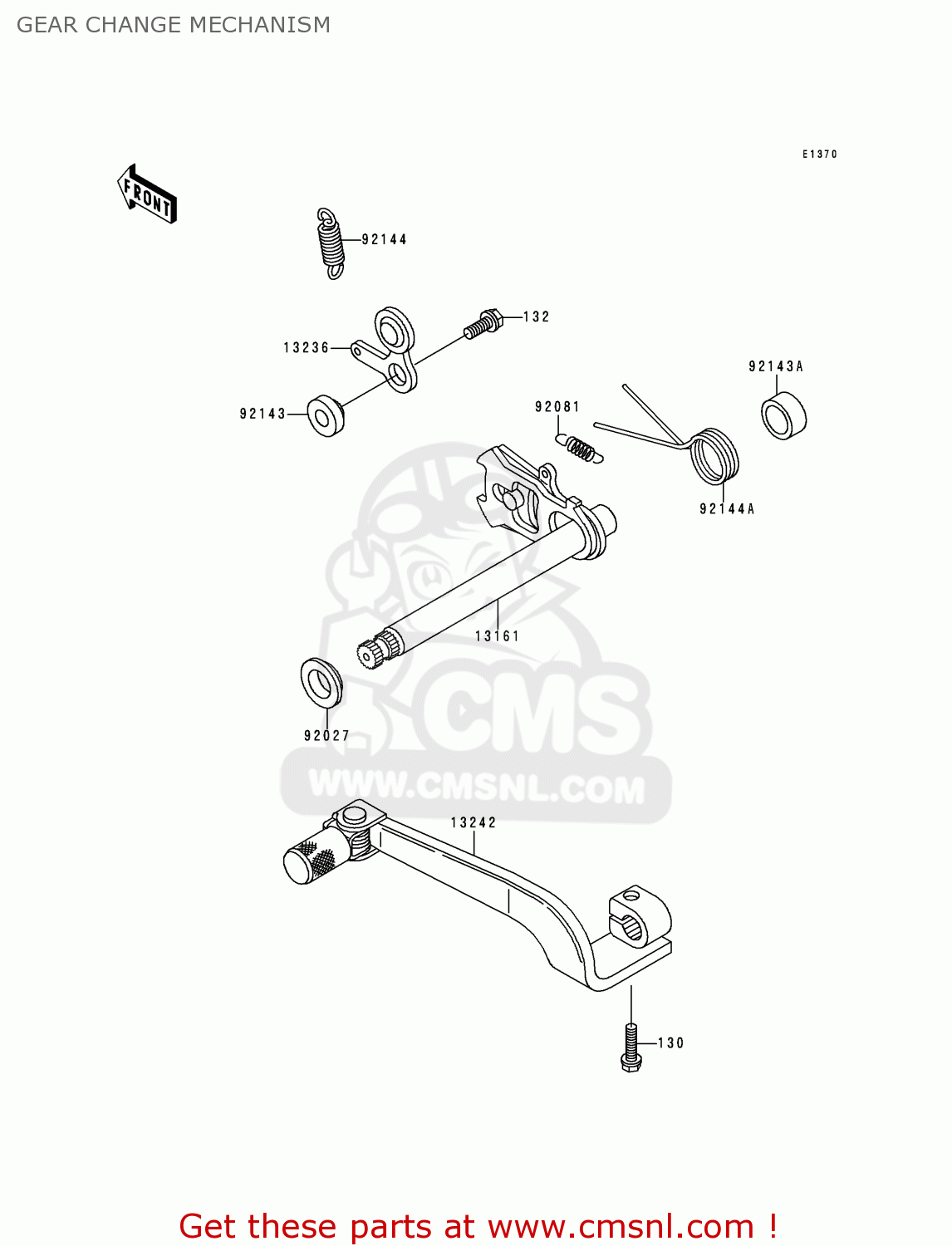

Gear change mechanism diagram KDX200-H2 1996 USA CANADA
GEAR CHANGE MECHANISM KDX200-H2 1996 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130Z0630
ref: 130
BOLT-FLANGED
€ 2.00
132
132Y0616
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
13161
131611217
ref: 13161
LEVER-COMP-CHANGE SHA
€ 48.50
13236
132361189
ref: 13236
LEVER-COMP,POSITION
€ 7.50
13242
132421319
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 32.00
92027
920271512
ref: 92027
COLLAR,CHANGE SHAFT,L
€ 8.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92143
921431055
ref: 92143
COLLAR
€ 4.50
92143A
921431148
ref: 92143A
COLLAR
€ 3.00
92144
921441382
ref: 92144
SPRING
€ 6.50
92144A
921441736
ref: 92144A
SPRING
€ 9.50
