CYLINDER HEAD/CYLINDER
KDX200-H2 1996 EUROPE UK FR

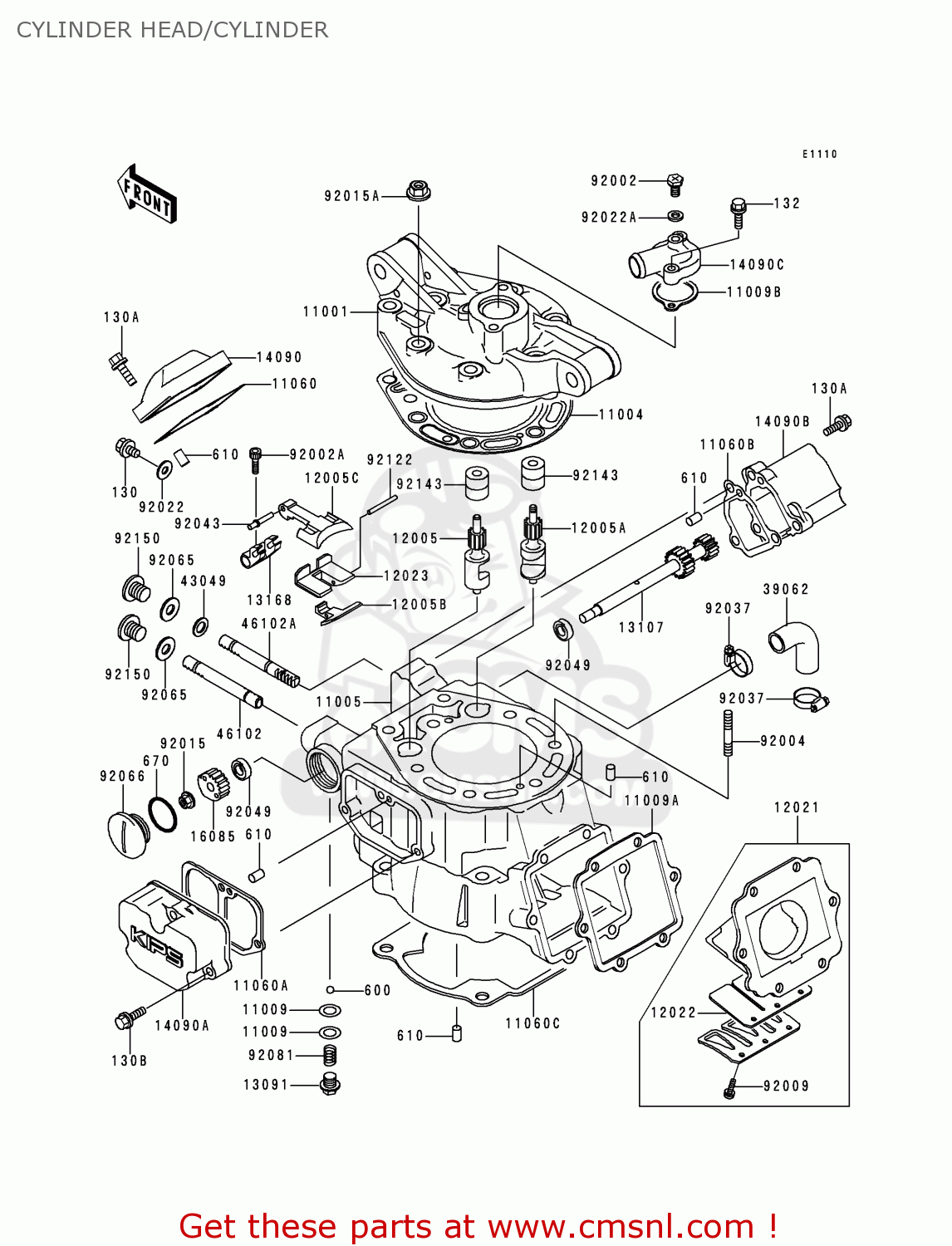

Cylinder head/cylinder diagram KDX200-H2 1996 EUROPE UK FR
CYLINDER HEAD/CYLINDER KDX200-H2 1996 EUROPE UK FR
×
prices are in EUR
ref
part #
description
quantity
11001
110011409
ref: 11001
HEAD-CYLINDER
€ 216.50
11004
110041298
ref: 11004
GASKET-HEAD (NAS)
€ 28.00
11005
110051742
ref: 11005
CYLINDER-ENGINE
€ 781.00
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11009A
110091941
ref: 11009A
GASKET,REED VALVE (NAS)
€ 6.00
11009B
110091993
ref: 11009B
GASKET,ELBOW (NAS)
€ 3.50
11060
110601627
ref: 11060
GASKET,CENTER VALVE C (NAS)
€ 7.00
11060A
110601628
ref: 11060A
GASKET,RESONATOR COVE (NAS)
€ 8.00
11060B
110601629
ref: 11060B
GASKET,RH,COVER (NAS)
€ 6.50
11060C
110601659
ref: 11060C
GASKET,CYLINDER BASE (NAS)
€ 7.50
12005
120051199
ref: 12005
VALVE-EXHAUST,LH
€ 75.00
12005A
120051200
ref: 12005A
VALVE-EXHAUST,RH
€ 61.00
12005B
120051272
ref: 12005B
VALVE-EXHAUST,MAIN
€ 47.50
12005C
120051274
ref: 12005C
VALVE-EXHAUST,MAIN
€ 72.00
12021
120211067
ref: 12021
VALVE-ASSY-REED
€ 100.50
12022
120221063
ref: 12022
VALVE-REED
€ 18.50
12023
120231085
ref: 12023
HOLDER-VALVE,MAIN
€ 83.50
13091
130911889
ref: 13091
HOLDER
€ 5.00
13107
131071324
ref: 13107
SHAFT,CENTER
€ 74.50
13168
131681499
ref: 13168
LEVER,MAIN VALVE
€ 74.50
14090
140901441
ref: 14090
COVER,CENTER VALVE
€ 22.00
14090A
140901442
ref: 14090A
COVER,LH RESONATOR
€ 11.50
14090B
140901443
ref: 14090B
COVER,RH
€ 12.50
14090C
140901534
ref: 14090C
COVER,THERMOSTAT
€ 15.50
16085
160851274
ref: 16085
GEAR,LH VALVE ROD
€ 73.50
39062
390621419
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 11.00
43049
430491076
ref: 43049
PACKING (NAS)
€ 3.00
46102
461021383
ref: 46102
ROD,LH
€ 29.50
46102A
461021384
ref: 46102A
ROD,RH
€ 29.50
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92002A
920021403
ref: 92002A
BOLT,SOCKET,4X8
€ 2.00
92004
920041197
ref: 92004
STUD,8X32
€ 3.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92015
920151386
ref: 92015
NUT,6MM
€ 3.00
92015A
920151406
ref: 92015A
NUT,8MM
€ 3.00
92022
920221380
ref: 92022
WASHER,5.2X13X1
€ 2.50
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92043
920431470
ref: 92043
PIN,MAIN VALVE
€ 3.00
92049
920491238
ref: 92049
SEAL-OIL,SD088144
€ 8.50
130
130Y0508
ref: 130
BOLT-FLANGED
€ 1.50
130A
130Y0520
ref: 130A
BOLT-FLANGED
€ 2.50
130B
130Y0525
ref: 130B
BOLT-FLANGED
€ 2.50
132
132Y0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B2022
ref: 670
O RING,22MM
€ 3.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661414
ref: 92066
PLUG
€ 9.00
92081
920811527
ref: 92081
SPRING,CLUTCH PLATE
€ 2.50
92122
921221187
ref: 92122
ROLLER,3X31.8
€ 2.50
92143
921431694
ref: 92143
COLLAR,6X15X17.2
€ 8.50
92150
921501867
ref: 92150
BOLT 10 X 10
€ 3.50
