FRAME FITTING
KDX200-E6 1994 USA CANADA

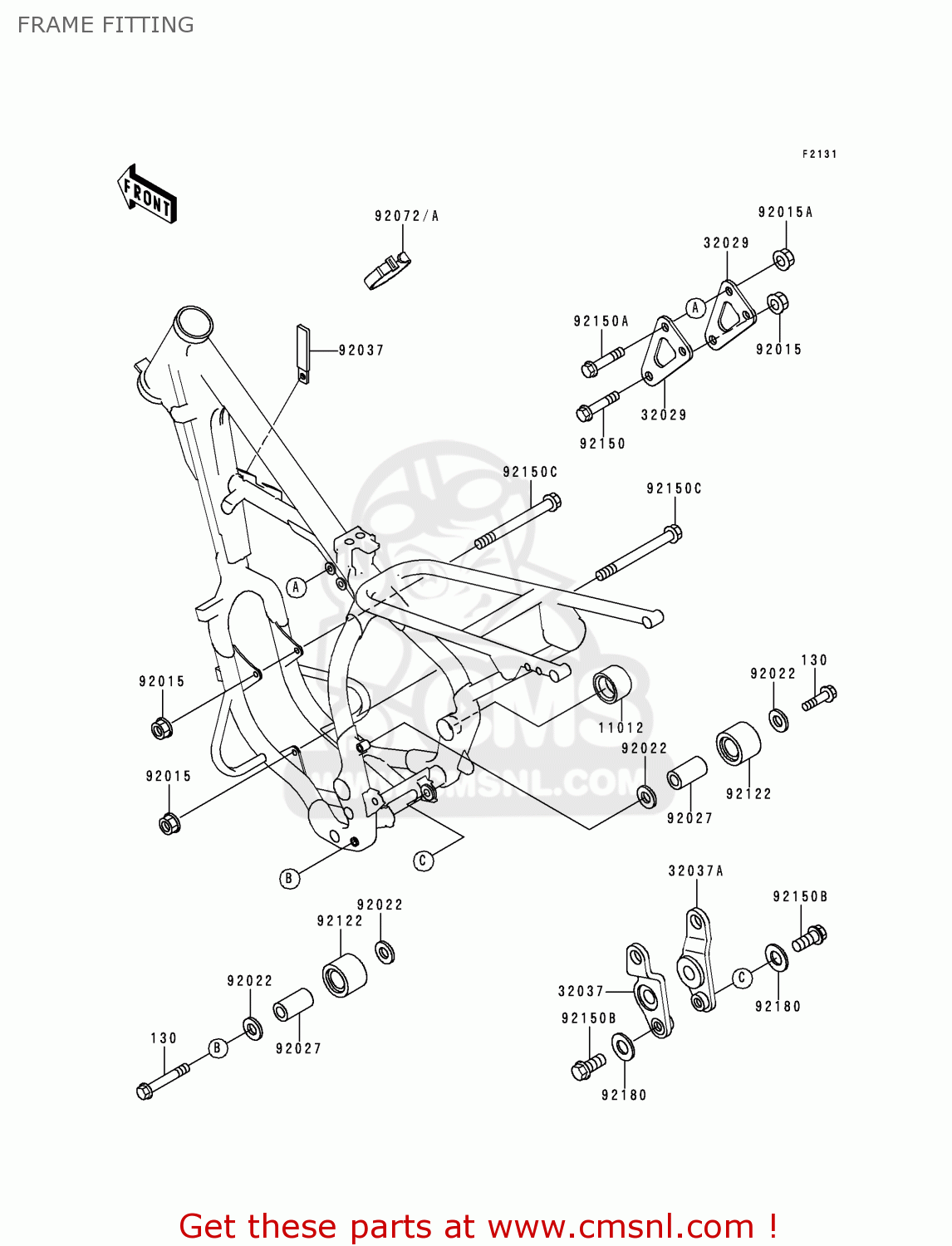

Frame fitting diagram KDX200-E6 1994 USA CANADA
FRAME FITTING KDX200-E6 1994 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
32029
320291688
ref: 32029
BRACKET-ENGINE,UPP
€ 12.50
32037
320371535
ref: 32037
BRACKET-SHOCKABSORBER
€ 30.00
32037A
320371536
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.00
92015
920151502
ref: 92015
NUT,FLANGED,10MM
€ 7.00
92015A
920151668
ref: 92015A
NUT
€ 3.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501214
ref: 92150A
BOLT,FLANGED,8X50
€ 4.00
92150B
921501359
ref: 92150B
BOLT,FLANGED,12X30
€ 5.00
92150C
921501624
ref: 92150C
BOLT,FLANGED,10X105
€ 6.50
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
€ 2.50
