FUEL TANK
KDX200-E2 1990 USA CANADA

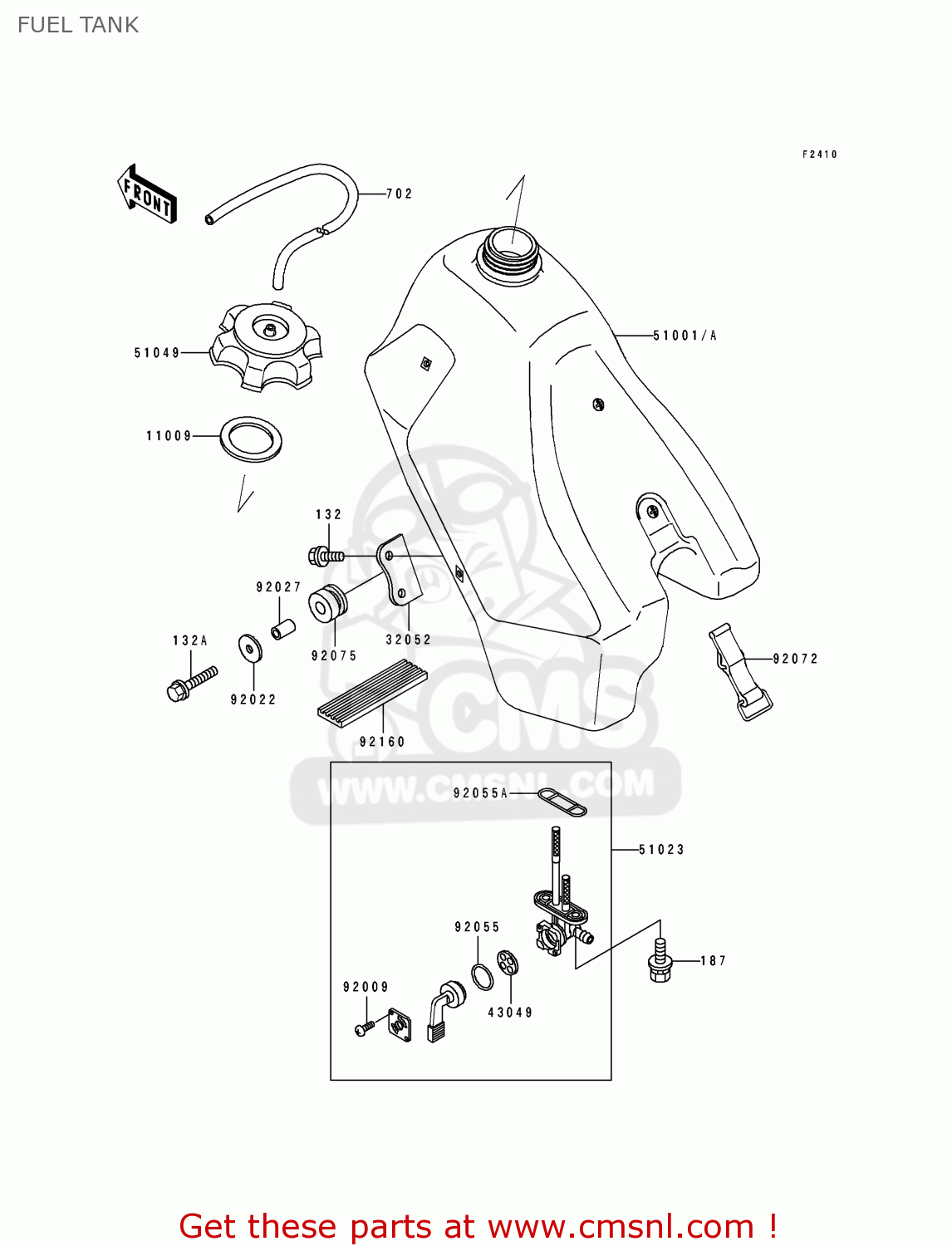

Fuel tank diagram KDX200-E2 1990 USA CANADA
FUEL TANK KDX200-E2 1990 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11009
110091622
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 4.00
32052
320521169
ref: 32052
BRACKET-TANK
€ 12.50
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
51001
5100113016F
ref: 51001
TANK-COMP-FUEL,P.WHIT
€ 371.00
51001A
5100113016W
ref: 51001A
TANK-COMP-FUEL,L.GREE
€ 586.50
51023
510231165
ref: 51023
TAP-ASSY,FUEL
€ 49.50
51049
510491089
ref: 51049
CAP-TANK
€ 19.00
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92022
920221690
ref: 92022
WASHER
€ 2.50
92027
920271833
ref: 92027
COLLAR,6.8X10X17
€ 3.50
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551348
ref: 92055A
RING-O,FUEL TAP PACKI
€ 4.50
92072
920721229
ref: 92072
BAND,FUEL TANK
€ 8.50
92075
920751660
ref: 92075
DAMPER
€ 5.50
92160
920751987
ref: 92160
DAMPER,FUEL TANK
€ 8.00
