FRAME FITTING
KDX200-E1 1989 UNITED KINGDOM AL

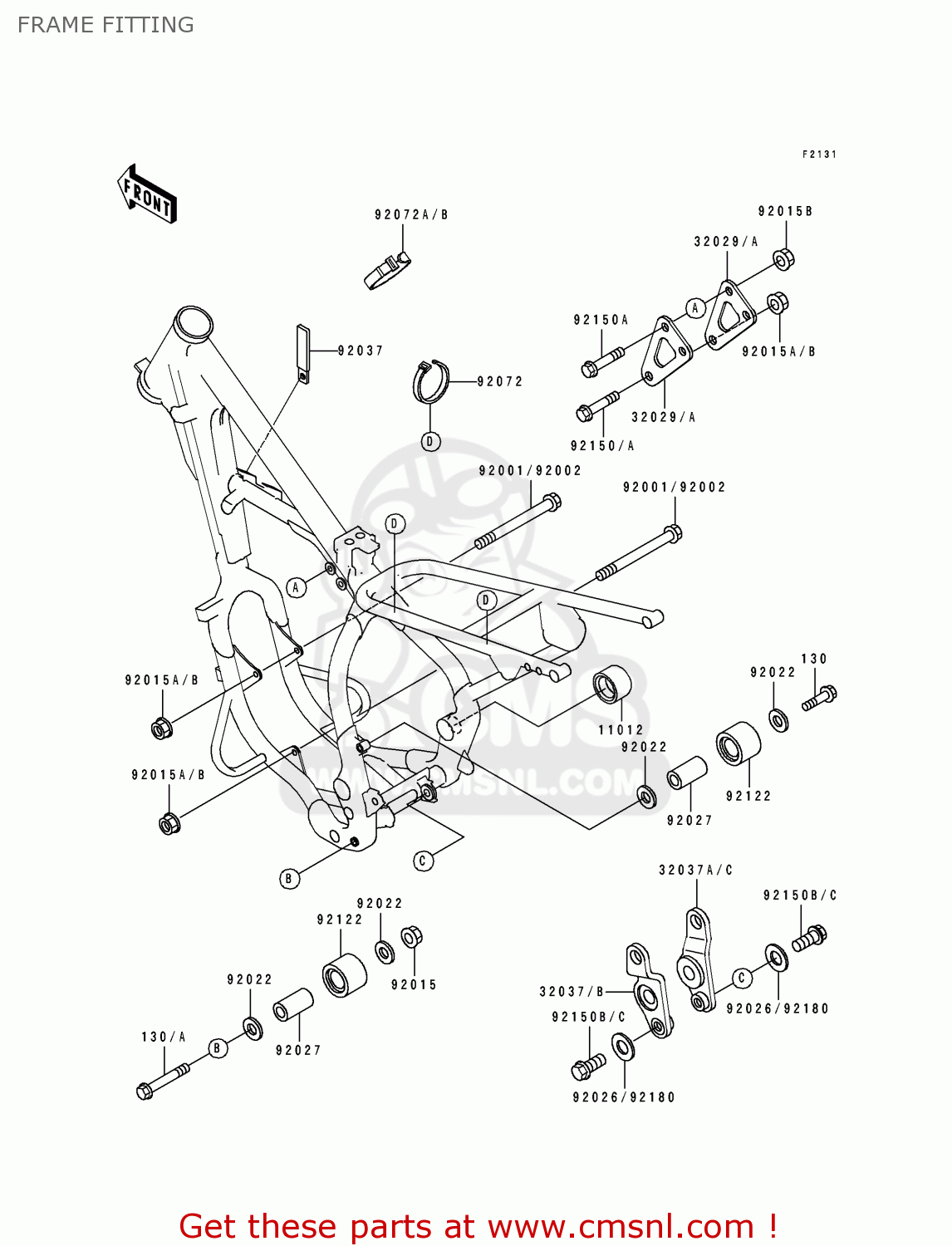

Frame fitting diagram KDX200-E1 1989 UNITED KINGDOM AL
FRAME FITTING KDX200-E1 1989 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
130A
130G0870
ref: 130A
BOLT-FLANGED,8X70
€ 1.50
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
32029
320291648
ref: 32029
BRACKET-ENGINE,UPP
€ 13.00
32037
320371526
ref: 32037
BRACKET-SHOCKABSORBER
€ 28.50
32037A
320371527
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.00
92001
920011185
ref: 92001
BOLT,TENSION,8X105
€ 7.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015B
920151668
ref: 92015B
NUT
€ 3.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92026
920261091
ref: 92026
SPACER
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
€ 4.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92150A
921501214
ref: 92150A
BOLT,FLANGED,8X50
€ 4.00
92150B
921501357
ref: 92150B
BOLT,FLANGED,12X24
€ 5.00
