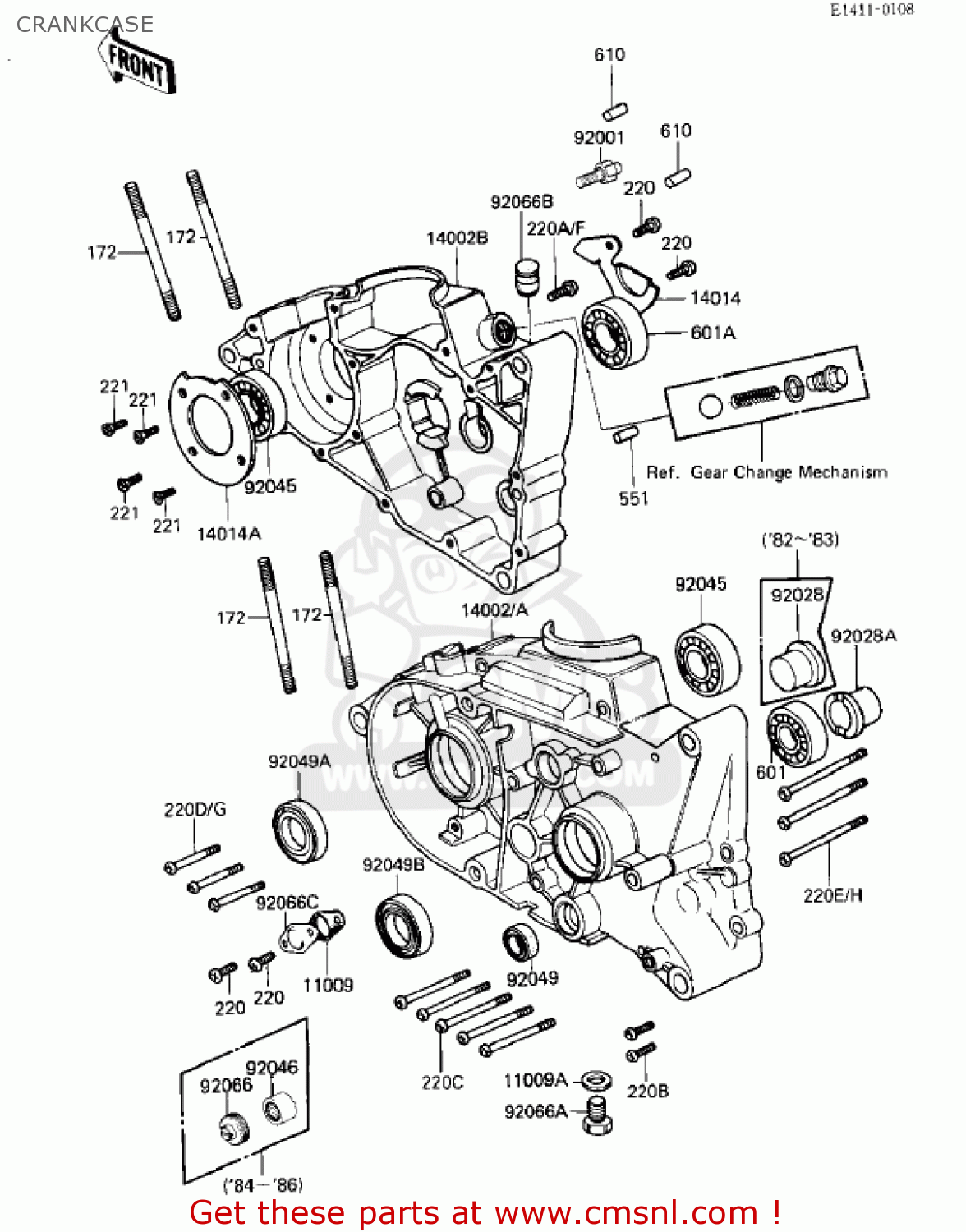

CRANKCASE

ref

part #

description

quantity

11009

13146002
ref: 11009

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

11009A

92065058
ref: 11009A

GASKET, 10,5X16X1 (NAS)

€ 2.50

14002

140021072
ref: 14002

CRANKCASE,LH

€ 447.00

14002A

140021181
ref: 14002A

CRANKCASE,LH

€ 346.00

14002B

140021205
ref: 14002B

CRANKCASE,RH

€ 359.00

14014

14014008
ref: 14014

PLATE-POSITION

€ 4.00

14014A

14014017
ref: 14014A

PLATE-POSITION

€ 3.50

92001

920011426
ref: 92001

BOLT,CRANK BRG HOLDER

€ 5.00

92028

92028025
ref: 92028

BUSHING,L=23.5

€ 28.00

92028A

92028069
ref: 92028A

BUSH-OUTPUT SHAFT

€ 25.00

92045

920451032
ref: 92045

BEARING-BALL,#6204

€ 25.50

92046

92046037
ref: 92046

BEARING-NEEDLE,7E-HK1

€ 17.00

92049

92049004
ref: 92049

OIL SEAL SB12205

€ 6.00

92049A

920491240
ref: 92049A

SEAL-OIL

€ 10.50

92049B

92050013
ref: 92049B

OIL SEAL SC25376

€ 9.50

92066

920661071
ref: 92066

PLUG

€ 11.00

92066A

92067001
ref: 92066A

PLUG-OIL DRAIN

€ 3.00

92066B

92074035
ref: 92066B

PLUG,15X19

€ 4.50

92066C

92084004
ref: 92066C

PLUG,OIL PUMP HOLE

€ 2.00

172

172G08115
ref: 172

STUD,8X115

€ 8.00

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220B0620
ref: 220A

SCREW-PAN HEAD,6X20

€ 2.50

220B

220B0625
ref: 220B

SCREW-PAN HEAD,6X25

€ 1.50

220C

220B0640
ref: 220C

SCREW-PAN HEAD,6X40

€ 2.00

220D

220B0660
ref: 220D

SCREW-PAN HEAD,6X60

€ 2.50

220E

220B0665
ref: 220E

SCREW-PAN HEAD,6X65

€ 2.50

220F

220X0620
ref: 220F

SCREW-PAN-CROS

€ 3.00

220G

220X0660
ref: 220G

SCREW-PAN-CROS

€ 2.50

220H

220X0665
ref: 220H

SCREW-PAN-CROS

€ 2.50

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

551

551A0816
ref: 551

PIN-DOWEL,8X16

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6005
ref: 601A

BEARING-BALL,#6005C3

€ 11.50

610

610A0512
ref: 610

ROLLER,5X12

€ 3.00

all assemblies
