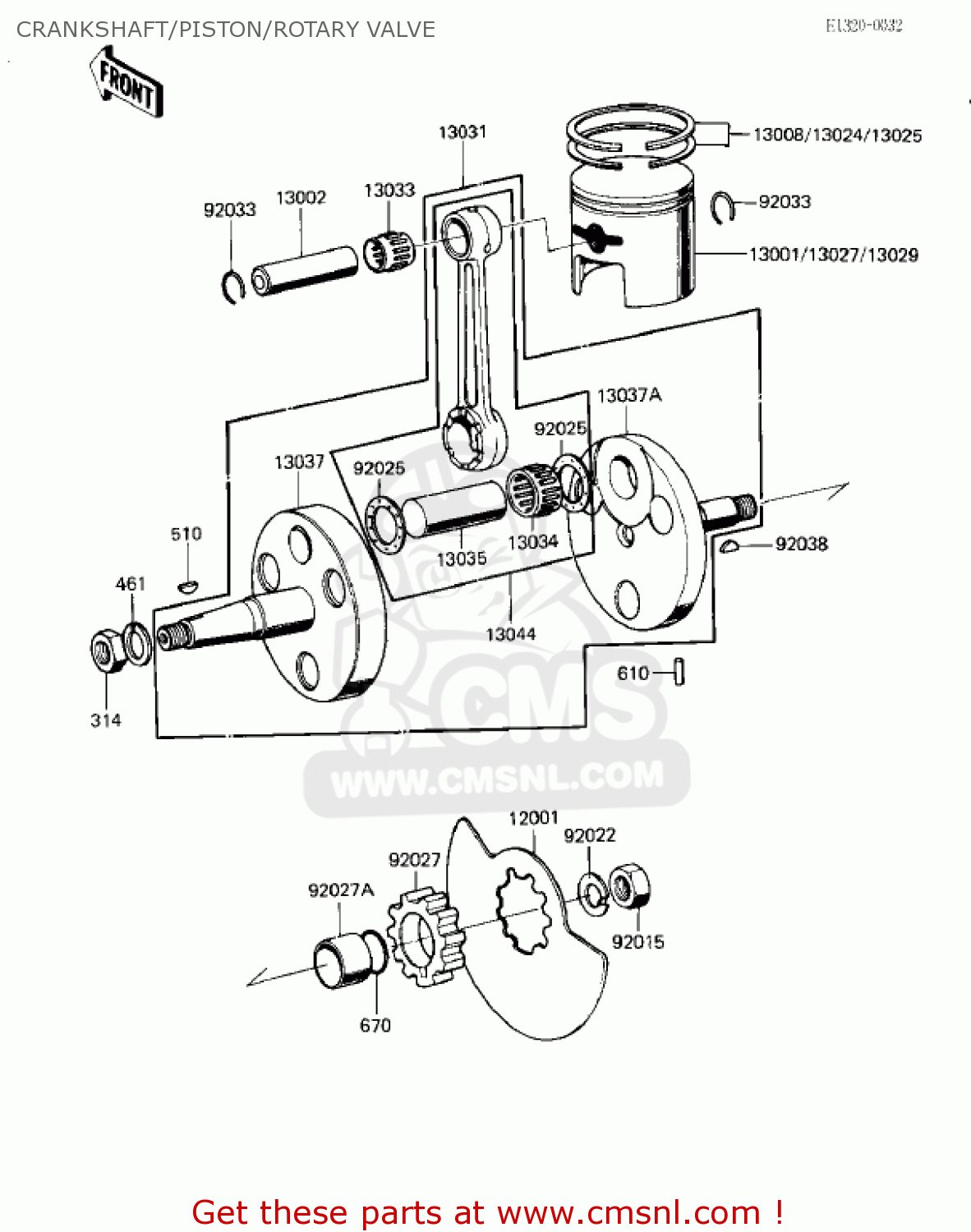

CRANKSHAFT/PISTON/ROTARY VALVE

ref

part #

description

quantity

12001

12002030
ref: 12001

VALVE-ROTARY

€ 15.00

13001

13001061
ref: 13001

PISTON-ENGINE,STD

€ 36.50

13002

13002003A
ref: 13002

PIN-PISTON

€ 11.50

13008

13008047
ref: 13008

RING-SET-PISTON,STD

€ 38.00

13024

13024052
ref: 13024

RING-SET-PISTON LL,O/

€ 43.50

13025

13025051
ref: 13025

RING-SET-PISTON L,O/S

€ 48.50

13027

13027059
ref: 13027

PISTON-ENGINE-LL,O/S

€ 48.50

13029

13029061
ref: 13029

PISTON-ENGINE-L,O/S 0

€ 43.50

13031

13036050
ref: 13031

CRANK AND CONNECTING ROD ASSEMBLY

€ 627.50

13033

13033030
ref: 13033

BEARING-NEEDLE,KTV141

€ 23.50

13034

13034034
ref: 13034

BEARING-NEEDLE,KT1928

€ 24.50

13035

13035025
ref: 13035

PIN-CRANK

€ 19.00

13037

13037068
ref: 13037

CRANKSHAFT,LH

€ 277.50

13037A

13038057
ref: 13037A

CRANKSHAFT,RH

€ 290.50

13044

130445015
ref: 13044

SET-CONNECTING ROD

€ 143.50

92015

92015006
ref: 92015

NUT,12MM

€ 3.50

92022

92024003
ref: 92022

WASHER,CLAW,12.5X25X0

€ 2.50

92025

92025047
ref: 92025

SHIM,T=1.0

€ 7.50

92027

920271245
ref: 92027

COLLAR,ROTARY VALVE

€ 15.50

92027A

92027285
ref: 92027A

COLLAR,20X25X9.5

€ 7.50

92033

92036003
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

CRANKSHAFT/PISTON/ROTARY VALVE

all assemblies
