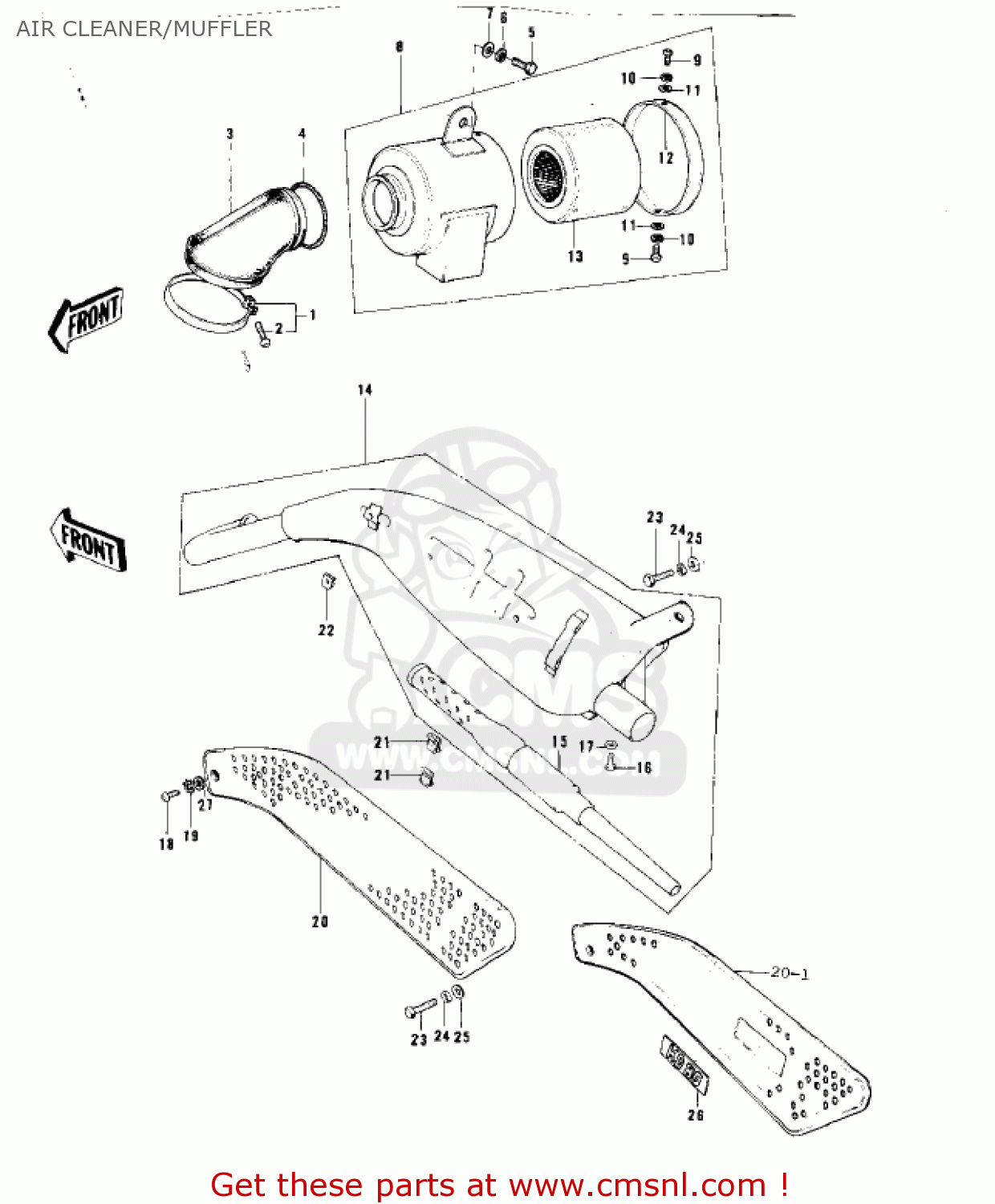

AIR CLEANER/MUFFLER

ref

part #

description

quantity

1

92037068
ref: 1

CLAMP

€ 7.50

2

220B0635
ref: 2

SCREW-PAN HEAD,6X35

€ 1.00

3

11026009
ref: 3

DUCT,AIR FILTER

€ 8.50

4

92081047
ref: 4

SPRING,COIL

€ 7.50

5

220B0612
ref: 5

SCREW-PAN HEAD,6X12

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

1101006810
ref: 8
BLACK

AIR CLEANER ASSY,BLAK

€ 98.50

9

220B0508
ref: 9

SCREW-PAN-CROS,5X8

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

411B0500
ref: 11

WASHER-PLAIN,5MM

€ 0.50

12

11012041
ref: 12

CAP,AIR FILTER

€ 8.50

13

11013044
ref: 13

ELEMENT-AIR FILTER

€ 8.00

14

1800116721
ref: 14
FLAT BLACK

MUFFLER ASSY,F.BLACK

€ 229.50

15

18033096
ref: 15

BAFFLE TUBE

€ 60.00

16

112G0610
ref: 16

BOLT,6X10

€ 0.50

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

220E0612
ref: 18

SCREW-PAN HEAD,6X12

€ 3.00

19

463H0600
ref: 19

WASHER-LOCK,6MM

€ 0.50

20

18064018
ref: 20
FLAT BLACK

COVER,MUFFLER

€ 24.00

20-1

18064018
ref: 20-1
KD80-A2

COVER,MUFFLER

€ 24.00

21

18065007
ref: 21

INSULATOR,HEAT

€ 3.00

22

18065009
ref: 22

INSULATOR,HEAT

€ 3.00

23

115G0816
ref: 23

BOLT-HEX,HEAD 8X16

€ 0.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

411B0800
ref: 25

WASHER-PLAIN,8MM

€ 0.50

26

56018217
ref: 26
KD80-A2

SIDE COVER EMBLEM

€ 23.50

27

92022183
ref: 27
KD80-A2

WASHER,6.2X11X1.5

€ 2.50
