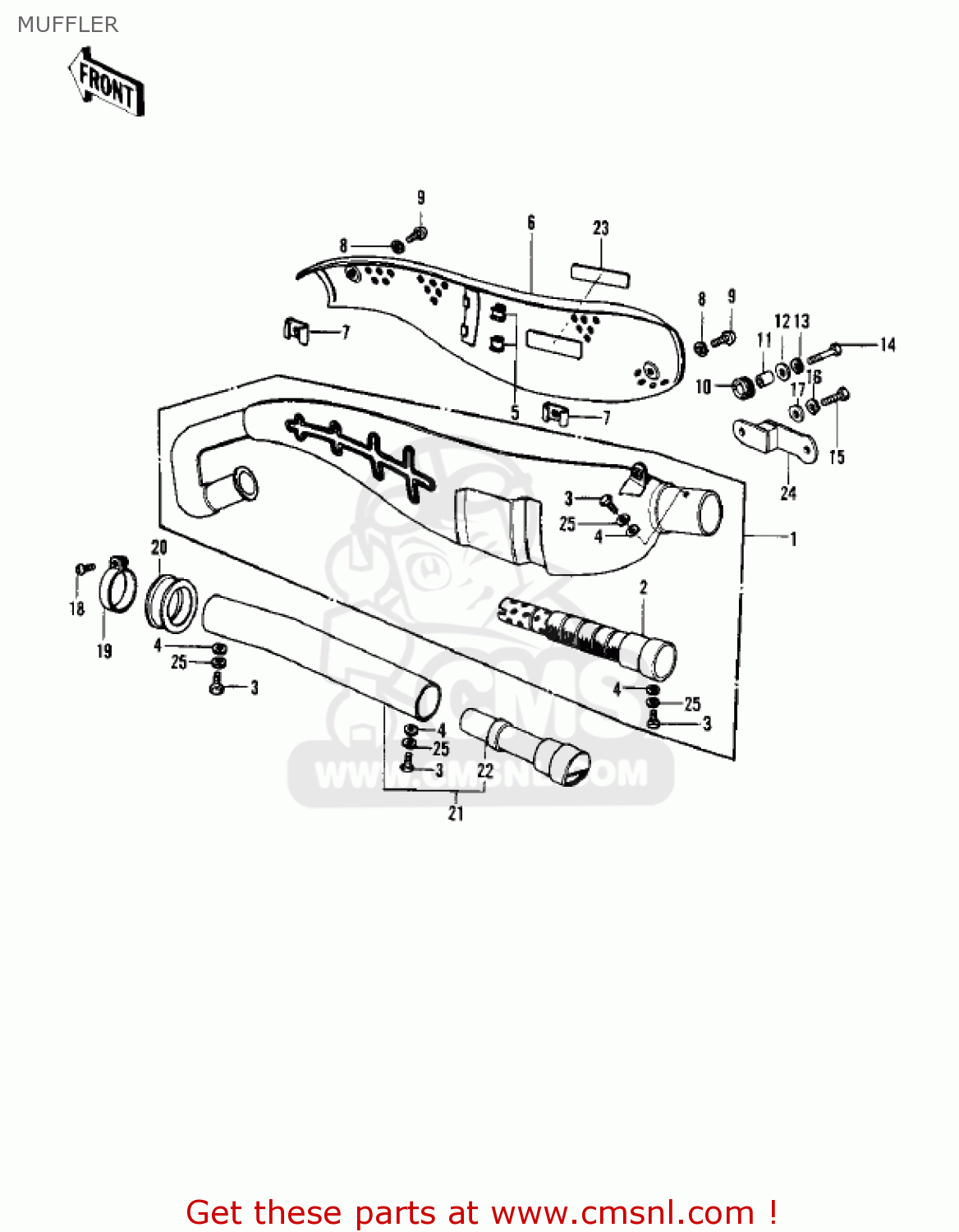

MUFFLER

ref

part #

description

quantity

1

18001154
ref: 1
KD125/A2

MUFFLER ASSY

€ 264.50

1

18001154
ref: 1
KD125-A3/A4/A5

MUFFLER ASSY

€ 264.50

2

18033077
ref: 2

BAFFLE TUBE

€ 35.50

3

112G0612
ref: 3

BOLT-UPSET

€ 2.50

4

92022183
ref: 4
KD125/A2/A3

WASHER,6.2X11X1.5

€ 2.50

4

92022077
ref: 4
KD125-A4/A5

WASHER,6.1X12X1

€ 0.50

5

18065007
ref: 5

INSULATOR,HEAT

€ 3.00

6

18064016
ref: 6
KD125

COVER,MUFFLER

€ 75.50

6

18064016
ref: 6
KD125-A2/A3/A4/A5

COVER,MUFFLER

€ 75.50

7

18065010
ref: 7

INSULATOR,HEAT

€ 2.50

8

463H0600
ref: 8

WASHER-LOCK,6MM

€ 0.50

9

220B0612
ref: 9

SCREW-PAN HEAD,6X12

€ 1.00

10

18063005
ref: 10

DAMPER,MUFFLER

€ 3.00

11

92027102
ref: 11

COLLAR

€ 1.00

12

920221564
ref: 12

WASHER

€ 2.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

115G0830
ref: 14

BOLT-SMALL-UPSET,8X30

€ 3.00

15

112G0616
ref: 15
KD125

BOLT UPSET,6X16

€ 1.00

15

92001121
ref: 15
KD125-A2/A3/A4/A5

BOLT,HEX HEAD,6X14

€ 2.50

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

411B0600
ref: 17
KD125

WASHER-PLAIN,6MM

€ 0.50

17

410B0600
ref: 17
KD125-A2/A3/A4/A5

WASHER-PLAIN-SMALL,6M

€ 0.50

18

92011032
ref: 18

SCREW,PAN HEAD,5X30

€ 2.50

19

92037122
ref: 19

CLAMP,SPARK ARRESTOR

€ 8.50

20

920931042
ref: 20

SEAL,BAFFLETUBE

€ 13.50

21

18077001
ref: 21

ARRESTER,SPARK

€ 115.50

22

18033086
ref: 22

BAFFLE TUBE,ARRESTOR

€ 60.00

23

56018219
ref: 23
KD125-A2/A3/A4

SIDE COVER EMBLEM

€ 23.50

23

560181037
ref: 23
KD125-A5

MARK,MUFFLER COVER

€ 8.50

24

18061046
ref: 24

BRACKET,MUFFLER

€ 19.50

25

410B0600
ref: 25
KD125-A2/A3/A4/A5

WASHER-PLAIN-SMALL,6M

€ 0.50
