CARBURETOR
KD100-M3 1978 CANADA

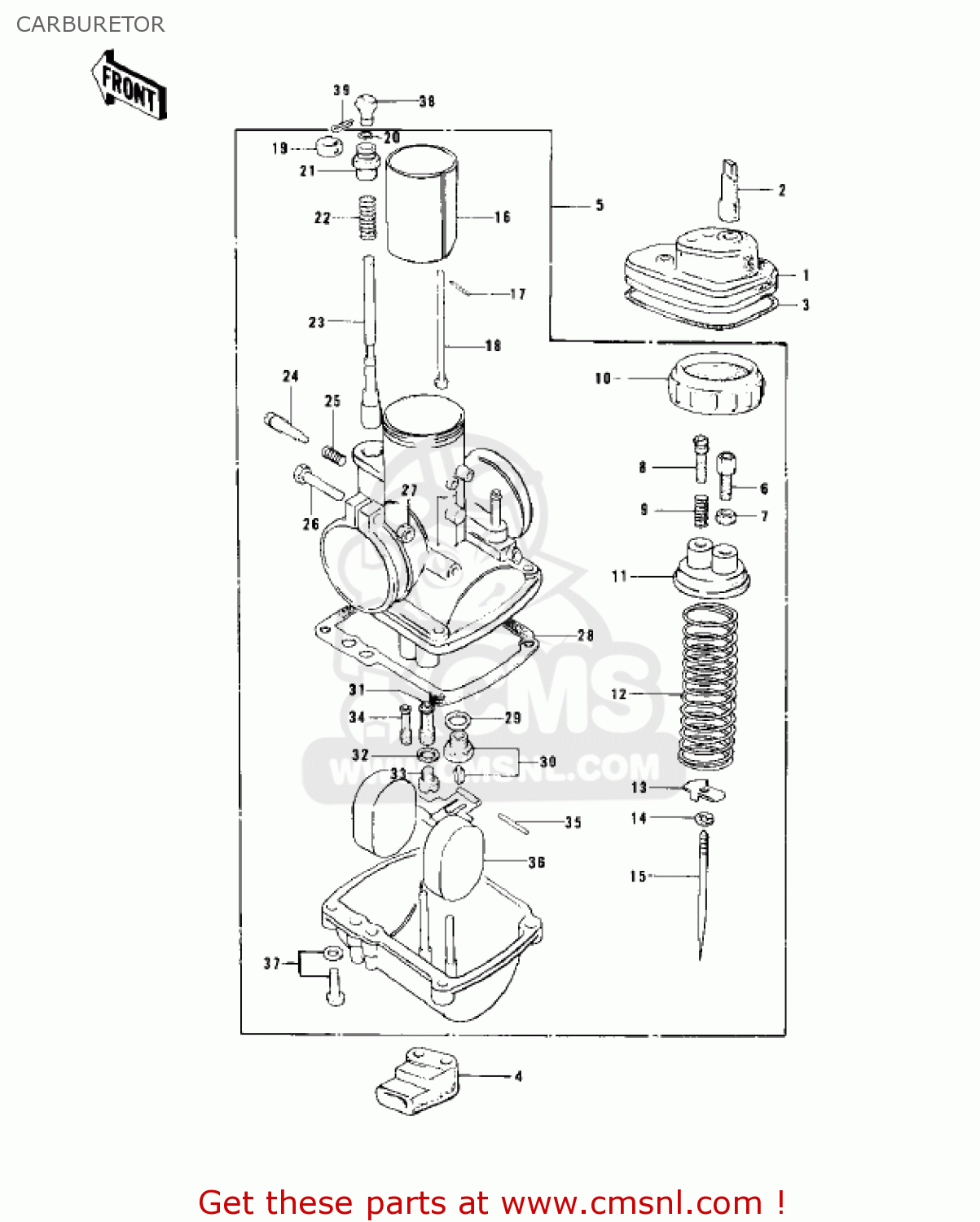

Carburetor diagram KD100-M3 1978 CANADA
CARBURETOR KD100-M3 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
14038035
ref: 1
BOOT,CARBURETOR
€ 9.50
2
16147001
ref: 2
PLUG,12X40
€ 3.00
3
92081047
ref: 3
SPRING,COIL
€ 7.50
4
16136007
ref: 4
GROMMET,OVERFLOW PIPE
€ 5.50
5
16001264
ref: 5
CARBURETOR ASSY
€ 153.00
6
16002017
ref: 6
ADJUSTER-CABLE
€ 8.00
7
16003004
ref: 7
NUT-CABLE ADJUST LOCK
€ 4.50
8
16021002
ref: 8
SCREW-THROTTLE STOP
€ 12.00
9
16022005
ref: 9
SPRING-THR STOP SCREW
€ 5.50
10
16004010
ref: 10
CAP-CHAMBER,MIXING
€ 13.50
11
16005005
ref: 11
TOP-CHAMBER,MIXING
€ 12.50
12
16006013
ref: 12
SPRING-THROTTLE VALVE
€ 10.00
13
16007020
ref: 13
SEAT-SPRING,THROTTLE
€ 7.00
14
16008010
ref: 14
CLAMP,E-TYPE
€ 5.00
15
16009059
ref: 15
NEEDLE-JET,4EJ7
€ 26.50
16
16025057
ref: 16
VALVE-THROTTLE,CA2.0
€ 80.50
17
550D1210
ref: 17
PIN-COTTER,1.2X10
€ 1.50
18
16024012
ref: 18
ROD,THROTTLE VALVE ST
€ 5.50
19
16036012
ref: 19
BOOT,STARTER PLUNGER
€ 4.50
20
920371077
ref: 20
CLAMP
€ 3.00
21
16012021
ref: 21
CAP-STARTER PLUNGER
€ 11.50
22
16013010
ref: 22
SPRING,STARTER PLUNGR
€ 3.50
23
16016012
ref: 23
PLUNGER,STARTER
€ 28.00
24
16014002
ref: 24
SCREW-PILOT AIR
€ 11.00
25
16022007
ref: 25
SPRING-THR STOP SCREW
€ 5.50
26
16010004
ref: 26
SCREW-CLAMP
€ 3.50
27
311B0600
ref: 27
NUT,6MM
€ 0.50
28
16019021
ref: 28
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
29
16029002
ref: 29
WASHER-VALVE SEAT
€ 2.50
30
16030001
ref: 30
VALVE-FLOAT,#2.0
€ 40.50
31
16017088
ref: 31
NEEDLE JET
€ 13.00
32
16034001
ref: 32
WASHER-MAIN JET
€ 2.50
33
920631032
ref: 33
STD
JET-MAIN,#A77.5R
€ 10.00
33
92063109
ref: 33
JET-MAIN,#75R
€ 10.50
33
920631030
ref: 33
JET-MAIN,#A80R
€ 11.00
33
92063124
ref: 33
MAIN JET,#82.5R
€ 10.50
33
92063093
ref: 33
MAIN JET,#85R
€ 10.50
34
92064020
ref: 34
JET-PILOT,#17.5
€ 13.50
35
16032003
ref: 35
FLOAT PIN
€ 4.00
36
16031015
ref: 36
FLOAT
€ 40.50
37
16033012
ref: 37
SCREW-FLOAT CHAMBER
€ 1.00
38
92077022
ref: 38
KNOB,CARBURETOR
€ 7.00
39
550D1615
ref: 39
PIN-COTTER,1.6X15
€ 1.50
