FUEL TANK

EX500D8 NINJA 500R 2001 USA CALIFORNIA CANADA

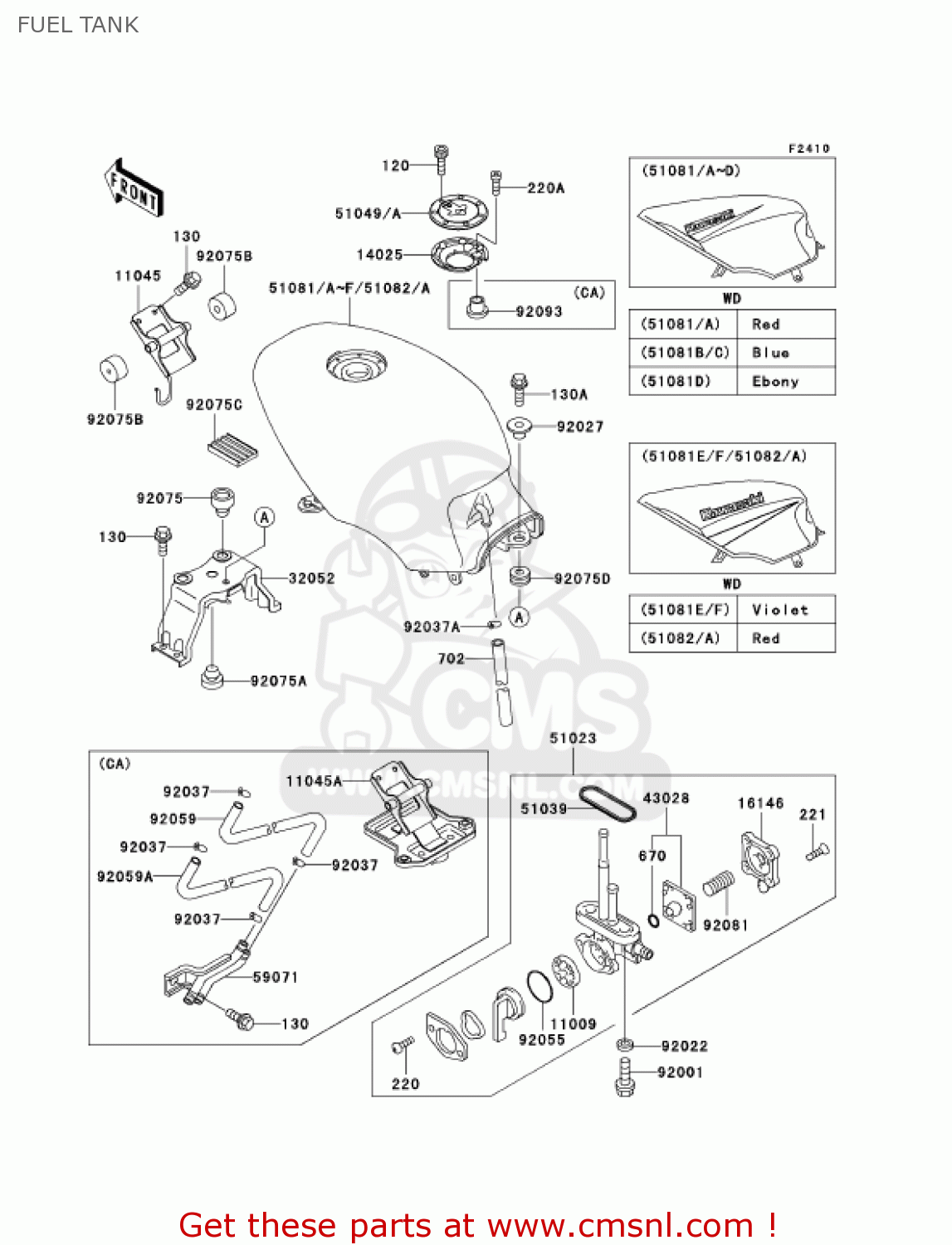

Fuel tank diagram EX500D8 NINJA 500R 2001 USA CALIFORNIA CANADA

FUEL TANK EX500D8 NINJA 500R 2001 USA CALIFORNIA CANADA
FUEL TANK EX500D8 NINJA 500R 2001 USA CALIFORNIA CANADA
FUEL TANK EX500D8 NINJA 500R 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
11045
110451362
ref: 11045
[CN,US
BRACKET,FUEL TANK,FR
110451362
€ 28.50
11045A
110451389
ref: 11045A
[CA]
FUEL TANK BRACKET,FRONT
€ 36.00
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
161461010
€ 17.00
32052
320521394
ref: 32052
BRACKET-TANK,FUEL,RR
320521394
€ 39.00
43028
430281033
ref: 43028
DIAPHRAGM
430281033
€ 15.00
51023
510231142
ref: 51023
TAP-ASSY,FUEL
€ 95.50
51039
51039003
ref: 51039
'O' RING
51039003
€ 4.00
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
51081B
510815190E1
ref: 51081B
[CN]
TANK-COMP-FUEL,C.L.BL
€ 919.50
51081E
510815369JW
ref: 51081E
[CN,US
TANK-COMP-FUEL,VIOLET
€ 575.00
51081F
510815370JW
ref: 51081F
[CA]
TANK-COMP-FUEL,VIOLET
€ 575.00
59071
590711122
ref: 59071
[CA]
EVAPORATOR JOINT
€ 26.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130B0612
ref: 130
[CN,US
BOLT-FLANGED,6X12
€ 0.50
130
130B0612
ref: 130
[CA]
BOLT-FLANGED,6X12
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
130G0830
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037010
ref: 92037
[CA]
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
920371712
ref: 92037A
CLAMP
920371712
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
920551085
€ 3.00
92059
920591767
ref: 92059
[CA]
EVAPORATOR TUBE
€ 5.50
92059A
920591768
ref: 92059A
[CA]
TUBE,EVAPO
920591768
€ 6.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
920751045
ref: 92075A
DAMPER,STAND STOPPER
920751045
€ 5.00
92075B
920751115
ref: 92075B
DAMPER,FUEL TANK FRON
920751115
€ 4.00
92075C
920751489
ref: 92075C
DAMPER,SIDE BAG BRACK
920751489
€ 6.00
92075D
920751736
ref: 92075D
DAMPER
920751736
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
