WATER PUMP

EX500D7F NINJA 500R 2007 USA CALIFORNIA CANADA

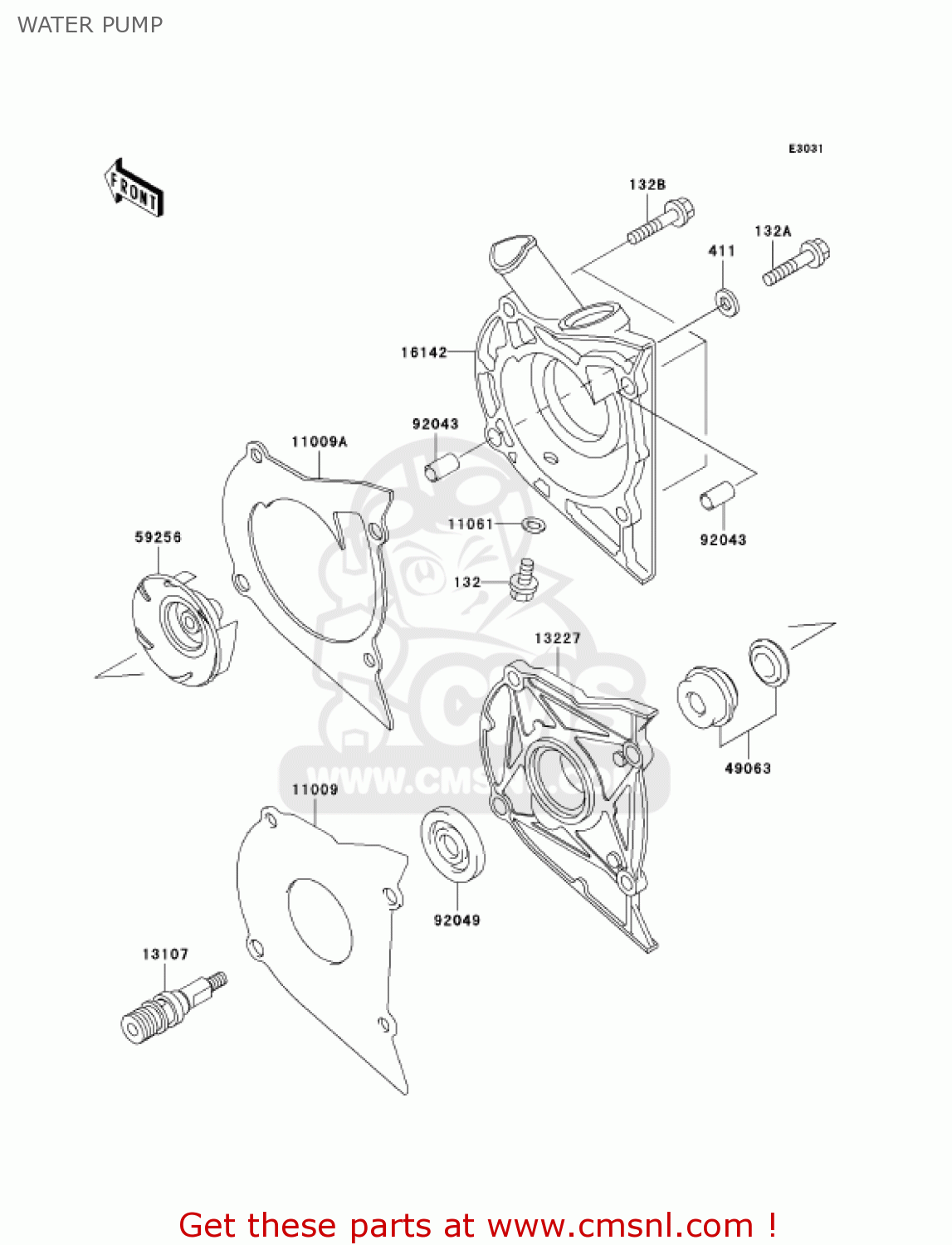

Water pump diagram EX500D7F NINJA 500R 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0635
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

11009

110091838
ref: 11009

GASKET, PUMP HOUSING (NAS)

€ 7.50

11009A

110091839
ref: 11009A

GASKET, PUMP COVER (NAS)

€ 9.50

11061

110610107
ref: 11061

GASKET (NAS)

€ 1.50

13107

131071203
ref: 13107

SHAFT,IMPELLER

€ 38.50

13227

132271064
ref: 13227

HOUSING,WATER PUMP

€ 58.00

16142

161421073
ref: 16142

COVER-PUMP

€ 131.00

49063

490631056
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561060
ref: 59256

IMPELLER

€ 24.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491215
ref: 92049

SEAL-OIL

€ 10.00
