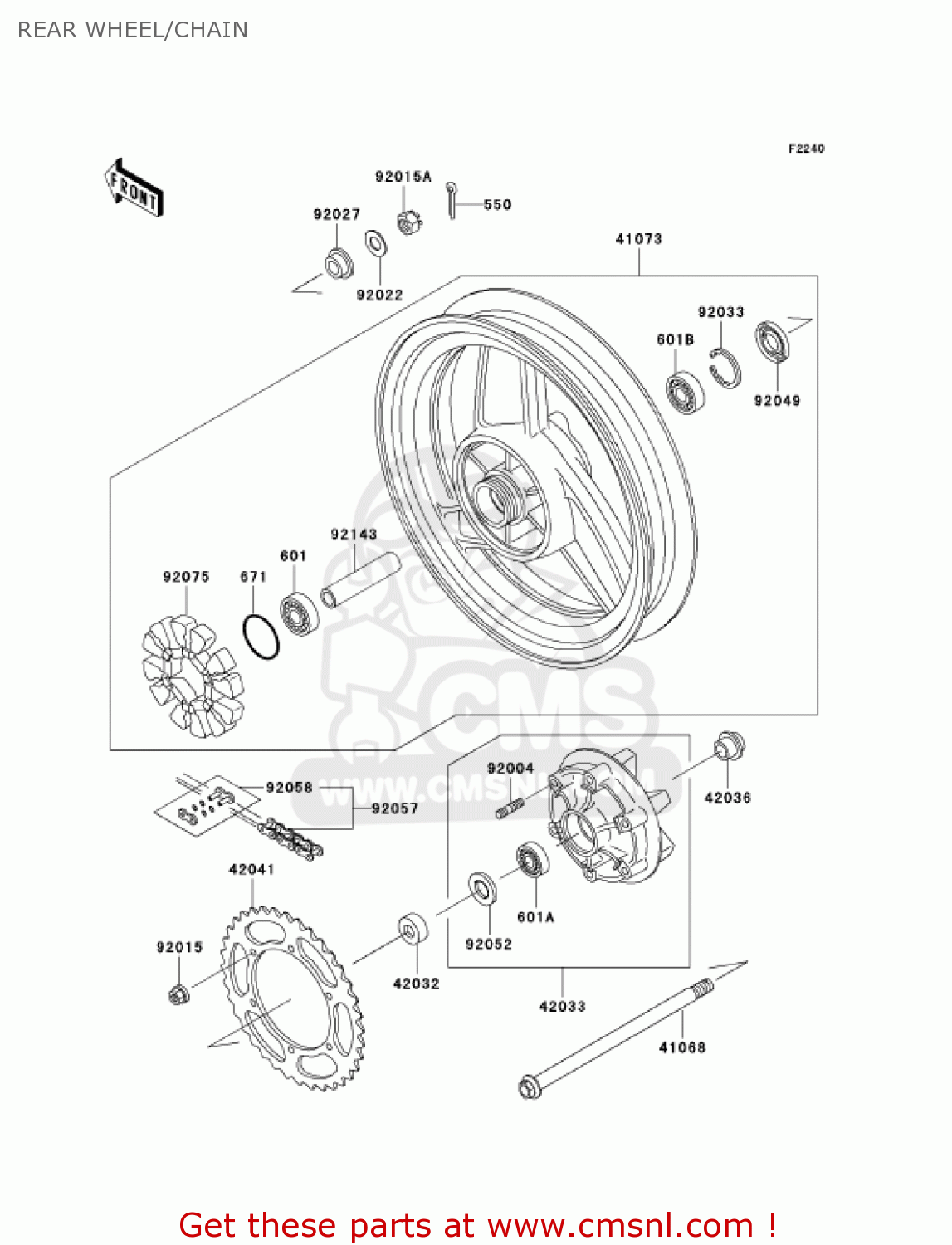

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203UU
ref: 601

BEARING-BALL,#6203UUC

€ 25.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

601B

601B6303UU
ref: 601B

BEARING-BALL,6303LLUC

€ 30.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50

41068

410681223
ref: 41068

AXLE,RR

€ 48.00

41073

410731474R2
ref: 41073

WHEEL-ASSY,RR,BLACK

€ 522.00

42032

42032063
ref: 42032

COLLAR,RR AXLE,L=13

€ 15.00

42033

4203312107J
ref: 42033

COUPLING-ASSY,RR HUB,

€ 213.00

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411354
ref: 42041

SPROCKET-HUB,41T

€ 42.50

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92015A

920151947
ref: 92015A

NUT

€ 6.50

92022

920221916
ref: 92022

WASHER

€ 3.00

92027

920271785
ref: 92027

COLLAR,RR HUB

€ 20.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92049

920491056
ref: 92049

OIL SEAL,BJN28475

€ 8.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920570048
ref: 92057

CHAIN,DRIVE,EK520MVXL

€ 151.50

92058

920580002
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.50

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92143

921431416
ref: 92143

COLLAR,RR HUB,L=111

€ 16.50
