CYLINDER/PISTON(S)
EX500D5 GPZ500S 1998 UNITED KINGDOM

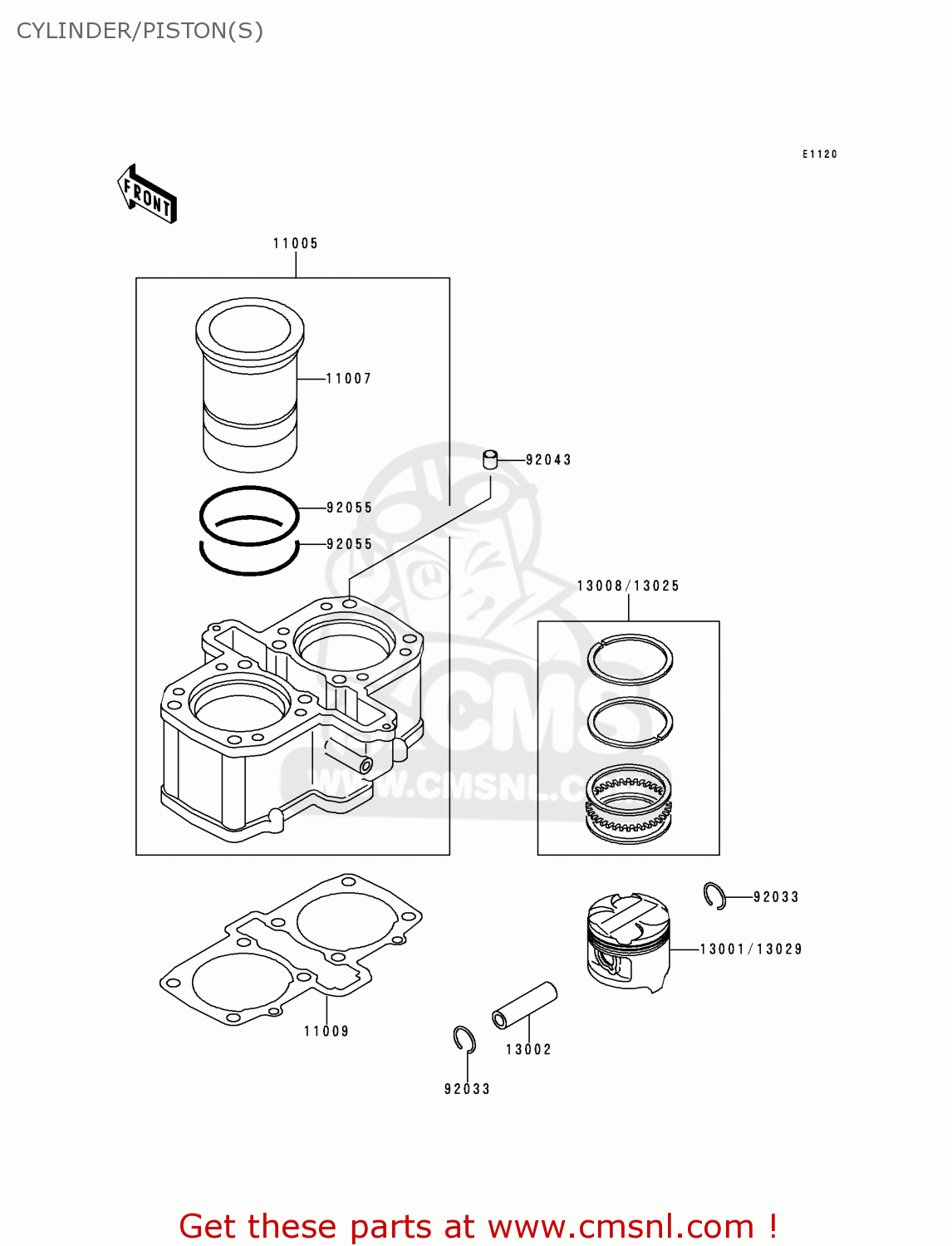

Cylinder/piston(s) diagram EX500D5 GPZ500S 1998 UNITED KINGDOM
CYLINDER/PISTON(S) EX500D5 GPZ500S 1998 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11005
110051517
ref: 11005
CYLINDER-ENGINE
€ 1,094.50
11007
110071096
ref: 11007
LINER-CYLINDER
€ 93.50
11009
110091640
ref: 11009
GASKET,CYLINDER BASE (NAS)
€ 33.00
13001
130011251
ref: 13001
PISTON-ENGINE,STD
€ 73.00
13002
130021058
ref: 13002
PIN-PISTON
€ 17.00
13008
130081084
ref: 13008
RING-SET-PISTON,STD
€ 63.00
13025
130251084
ref: 13025
RING-SET-PISTON L,O/S
€ 75.00
13029
130291160
ref: 13029
PISTON-ENGINE L,O/S 0
€ 79.00
92033
920331099
ref: 92033
RING-SNAP,18MM
€ 0.50
92043
920431279
ref: 92043
PIN,11.5X14X14
€ 3.00
92055
920551247
ref: 92055
RING-O,80.6X2.4
€ 8.00
