SUSPENSION
EX500D2 GPZ500S 1995 UNITED KINGDOM SD

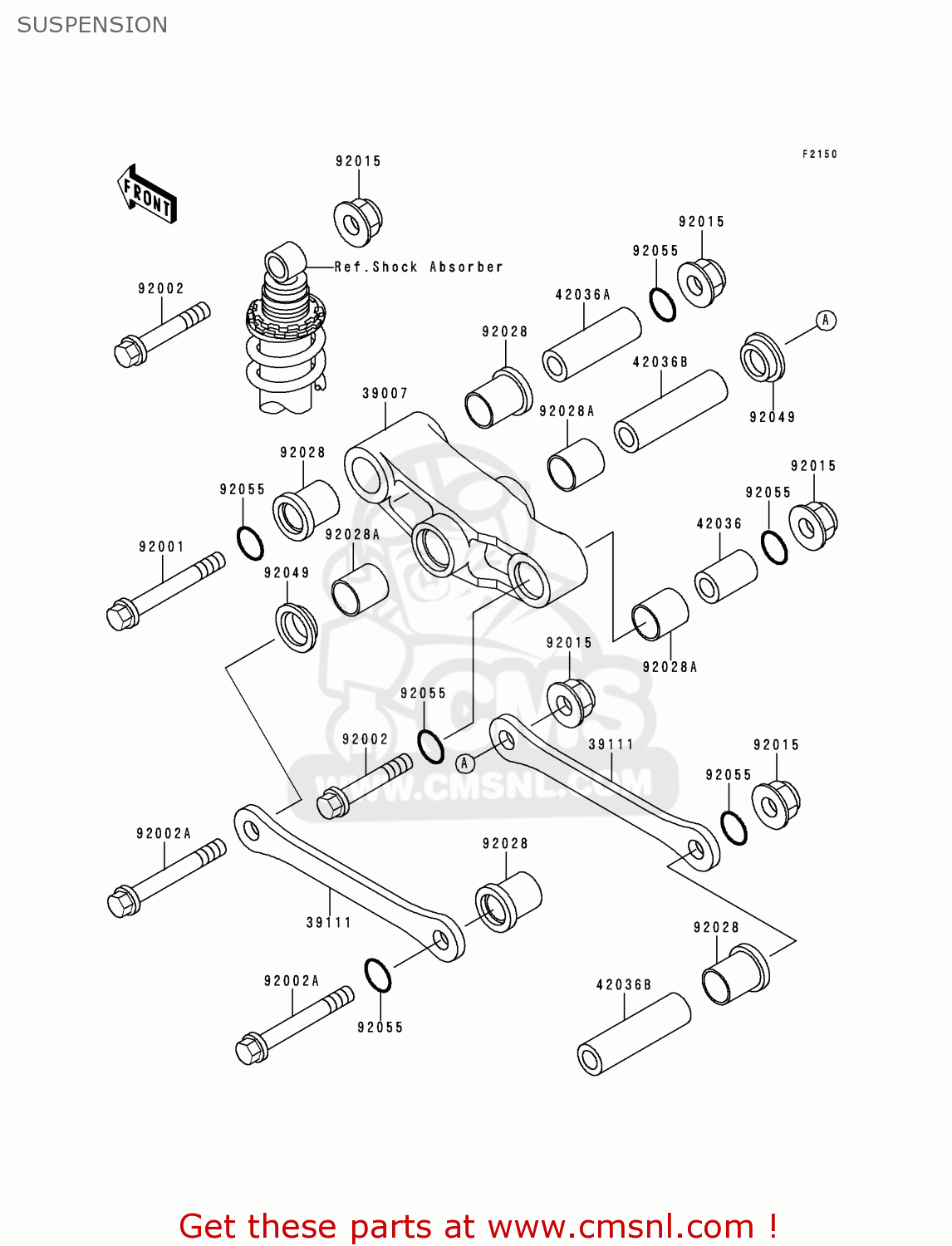

Suspension diagram EX500D2 GPZ500S 1995 UNITED KINGDOM SD
SUSPENSION EX500D2 GPZ500S 1995 UNITED KINGDOM SD
×
prices are in EUR
ref
part #
description
quantity
39007
390071120
ref: 39007
ARM-SUSP,UNI TRAK
€ 184.00
39111
391111133
ref: 39111
ROD-TIE,SUSPENSION
€ 69.50
42036
420361077
ref: 42036
SLEEVE,ARM,RR
€ 11.50
42036A
420361078
ref: 42036A
SLEEVE,ARM,FR
€ 17.00
42036B
420361102
ref: 42036B
SLEEVE,12.1X20X74
€ 19.50
92001
920011937
ref: 92001
BOLT,12X90
€ 10.50
92002
920021130
ref: 92002
BOLT,12X55
€ 7.00
92002A
920021886
ref: 92002A
BOLT,FLANGED,12X100
€ 11.50
92015
920151433
ref: 92015
NUT,12MM
€ 6.00
92028
920281597
ref: 92028
BUSHING
€ 6.50
92028A
920281598
ref: 92028A
BUSHING
€ 5.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
€ 2.50
