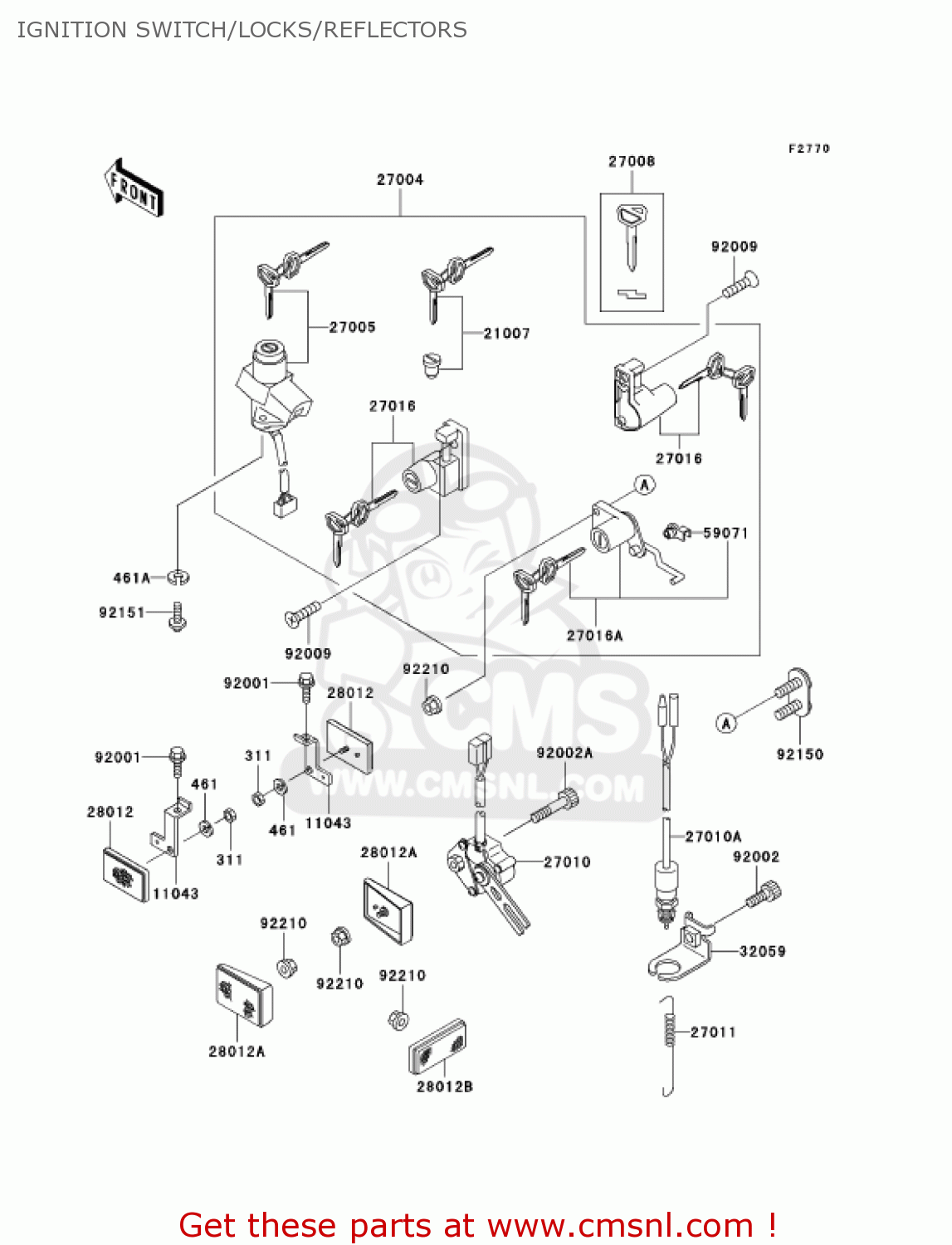

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

311

311C0500
ref: 311

NUT-HEX

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

461A

461L0600
ref: 461A

WASHER-SPRING

€ 0.50

11043

110431423
ref: 11043

BRACKET,FR,REFLECTOR

€ 6.50

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27004

270045464
ref: 27004

SWITCH ASSEMBLY

€ 235.00

27005

270055101
ref: 27005

SWITCH-ASSY-IGNITION

€ 246.00

27008

270081173
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.00

27010

270101467
ref: 27010

SWITCH,SIDE STAND

€ 47.50

27010A

270101479
ref: 27010A

SWITCH,REAR BRAKE

€ 20.00

27011

27011006
ref: 27011

SPRING-BRAKE LAMP SW

€ 3.50

27016

270165211
ref: 27016

LOCK-ASSY,HELMET

€ 56.50

27016A

270165217
ref: 27016A

LOCK-ASSY,SEAT

€ 54.00

28012

280121003
ref: 28012

REFLECTOR,REFLEX

€ 15.00

28012A

280121056
ref: 28012A

REFLECTOR,REAR,REFLEX

€ 13.50

28012B

280121077
ref: 28012B

REFLECTOR-REFLEX

€ 16.00

32059

320591121
ref: 32059

BRACKET-SWITCH,REAR B

€ 6.50

59071

590711103
ref: 59071

JOINT

€ 5.50

92001

920011847
ref: 92001

BOLT,6X14,BLACK

€ 2.50

92002

920021175
ref: 92002

BOLT,SOCKET,6X14

€ 3.00

92002A

920021537
ref: 92002A

BOLT,6X28

€ 4.00

92009

920091305
ref: 92009

SCREW,5X16

€ 2.50

92150

921501820
ref: 92150

BOLT,SEAT LOCK

€ 2.00

92151

921511911
ref: 92151

BOLT,TORX,6X16

€ 1.50

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
