AIR FILTER
EX500B1 1988 EUROPE FR GR IT NR ST

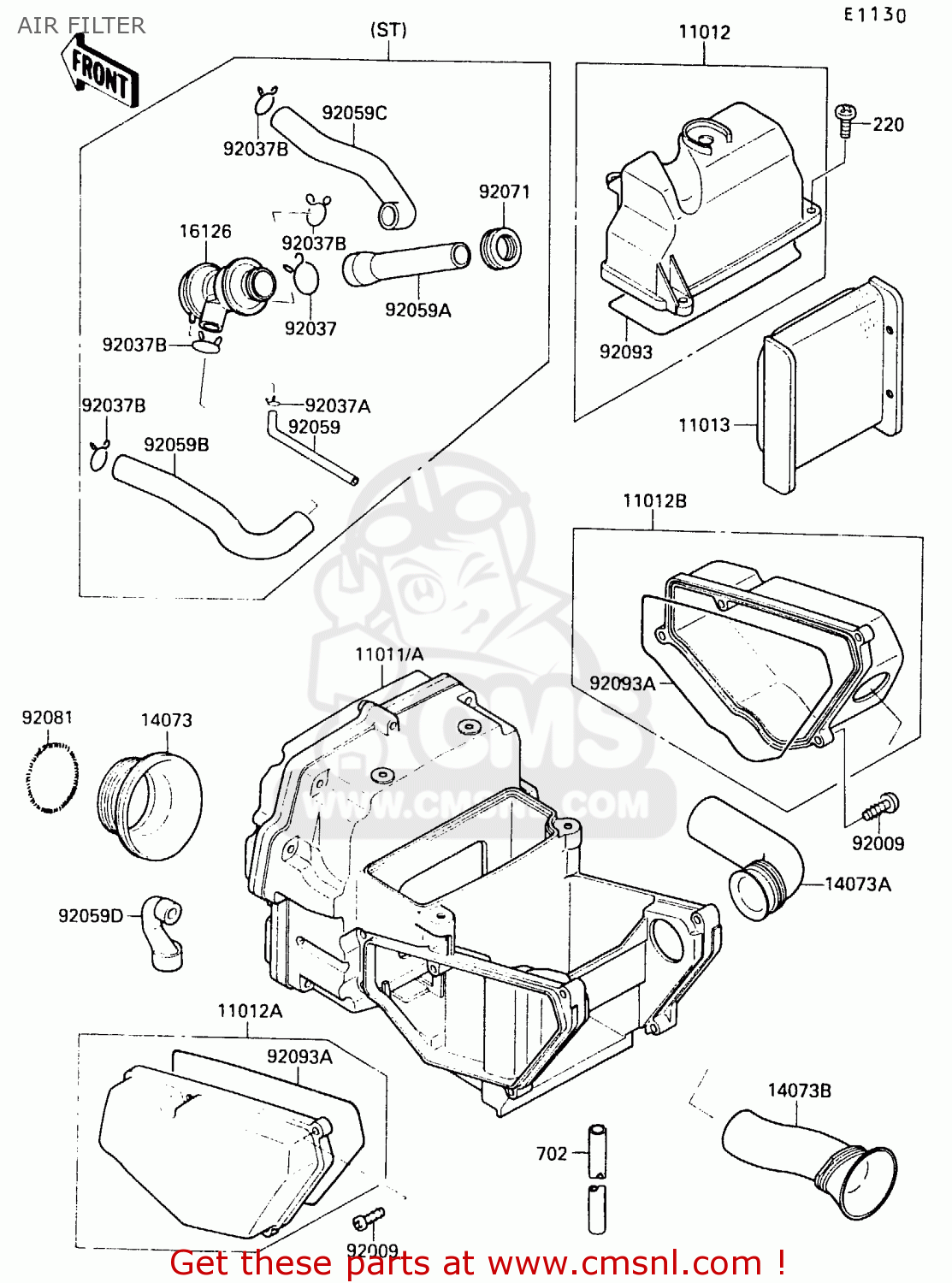

Air filter diagram EX500B1 1988 EUROPE FR GR IT NR ST
AIR FILTER EX500B1 1988 EUROPE FR GR IT NR ST
×
prices are in EUR
ref
part #
description
quantity
11011
110111268
ref: 11011
ST
CASE-AIR FILTER
€ 167.00
11011A
110111270
ref: 11011A
EU, FR, GR, IT, NR,
CASE-AIR FILTER
€ 122.50
11012
110121571
ref: 11012
CAP,AIR FILTER CASE,U
€ 32.50
11012A
110121608
ref: 11012A
CAP,AIR FILTER,LH
€ 28.00
11012B
110121609
ref: 11012B
CAP,AIR FILTER,RH
€ 28.00
11013
110131155
ref: 11013
ELEMENT-AIR FILTER
€ 28.00
14073
140731292
ref: 14073
DUCT,CARBURATOR
€ 17.00
14073A
140731293
ref: 14073A
DUCT,INTAKE
€ 10.00
14073B
140731295
ref: 14073B
DUCT
€ 14.00
16126
161261005
ref: 16126
ST
VALVE,AIR SWITCH
€ 130.50
92009
920091488
ref: 92009
SCREW
€ 3.00
92037
920371076
ref: 92037
ST
CLAMP,TUBE
€ 4.00
92037A
920371712
ref: 92037A
ST
CLAMP
€ 3.00
92037B
92037213
ref: 92037B
ST
CLAMP, BREATHER TUBE
€ 2.50
92059
920591043
ref: 92059
ST
TUBE,TUBE 4X9X290
€ 7.00
92059A
920591770
ref: 92059A
ST
TUBE,AIR FILTER-ACV
€ 9.00
92059B
920591771
ref: 92059B
ST
TUBE,AIR SWITCH,LH
€ 14.50
92059C
920591772
ref: 92059C
ST
TUBE,AIR SWITCH,RH
€ 14.00
92059D
920591773
ref: 92059D
TUBE,BREATHER
€ 7.50
92071
920711028
ref: 92071
ST
GROMMET AIR FILTER
€ 4.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
€ 7.00
92093
920931233
ref: 92093
SEAL,AIR FILTER CAP
€ 6.00
92093A
920931234
ref: 92093A
SEAL,AIR FILTER
€ 7.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
