IGNITION SWITCH

EX305B5 GPZ305 1987 UNITED KINGDOM / BELT DRIVE

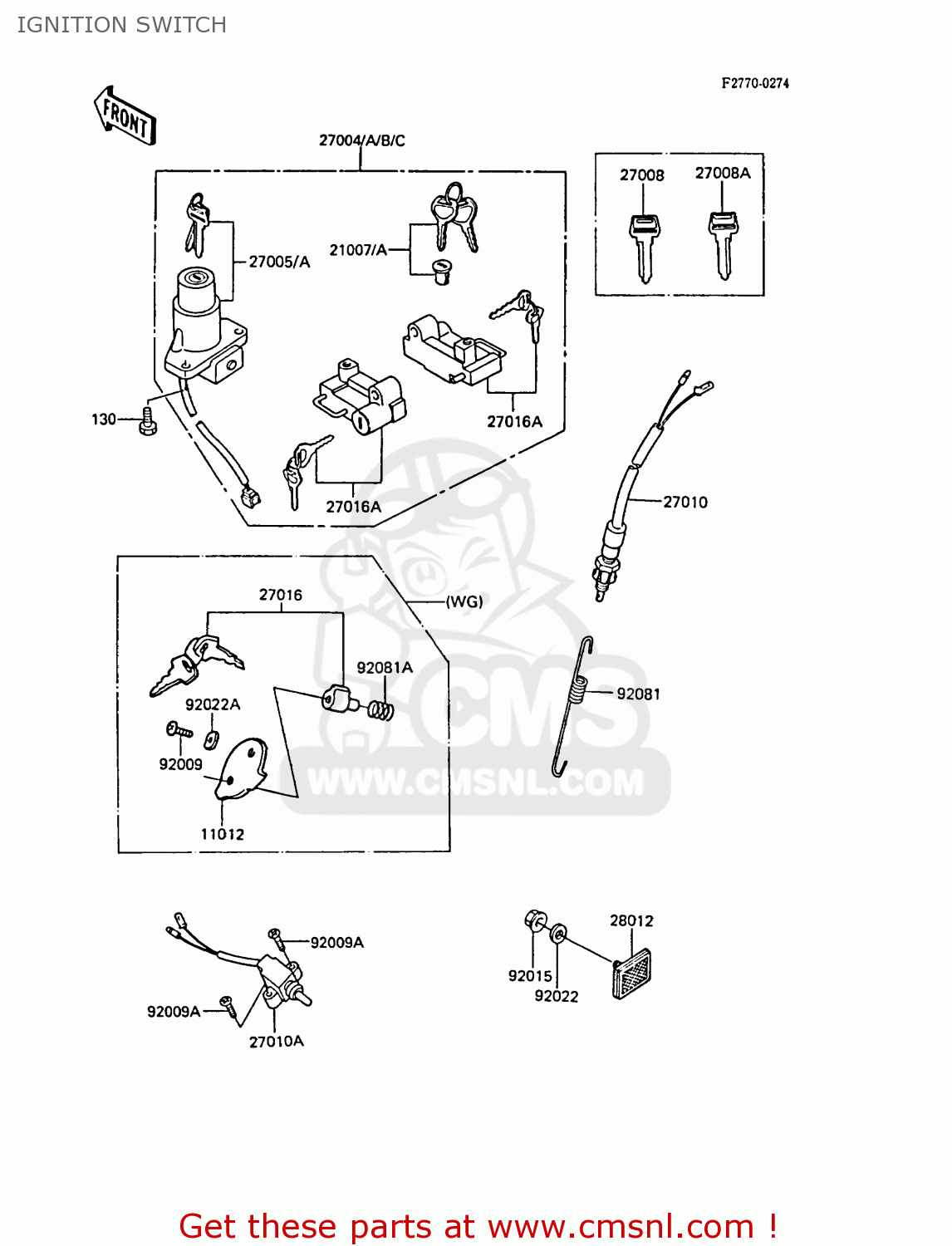

Ignition switch diagram EX305B5 GPZ305 1987 UNITED KINGDOM / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

130

130D0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

21007A

210075022
ref: 21007A

ROTOR,LOCK,TANK CAP

€ 50.50

27004B

270045321
ref: 27004B

SWITCH-ASSY

€ 196.00

27005

270051071
ref: 27005

SWITCH-ASSY-IGNITION

€ 128.00

27008

270081034
ref: 27008

KEY,BLANK

€ 13.00

27008A

270081035
ref: 27008A

KEY,BLANK

€ 12.50

27010

270101019
ref: 27010

SWITCH,REAR BRAKE

€ 23.00

27010A

270101227
ref: 27010A

SWITCH,SIDE STAND

€ 37.00

27016A

270165052
ref: 27016A

LOCK-ASSY,SEAT&HELMET

€ 39.50

28012

280121055
ref: 28012

REFLECTOR-REFLEX,RR

€ 12.50

92009A

920091459
ref: 92009A

SCREW

€ 2.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92081

27011021
ref: 92081

SPRING,BRAKE LAMP SW

€ 15.50
