SWINGARM

EX305B2 GPZ305 1984 EUROPE UK GR IT FG / BELT DRIVE

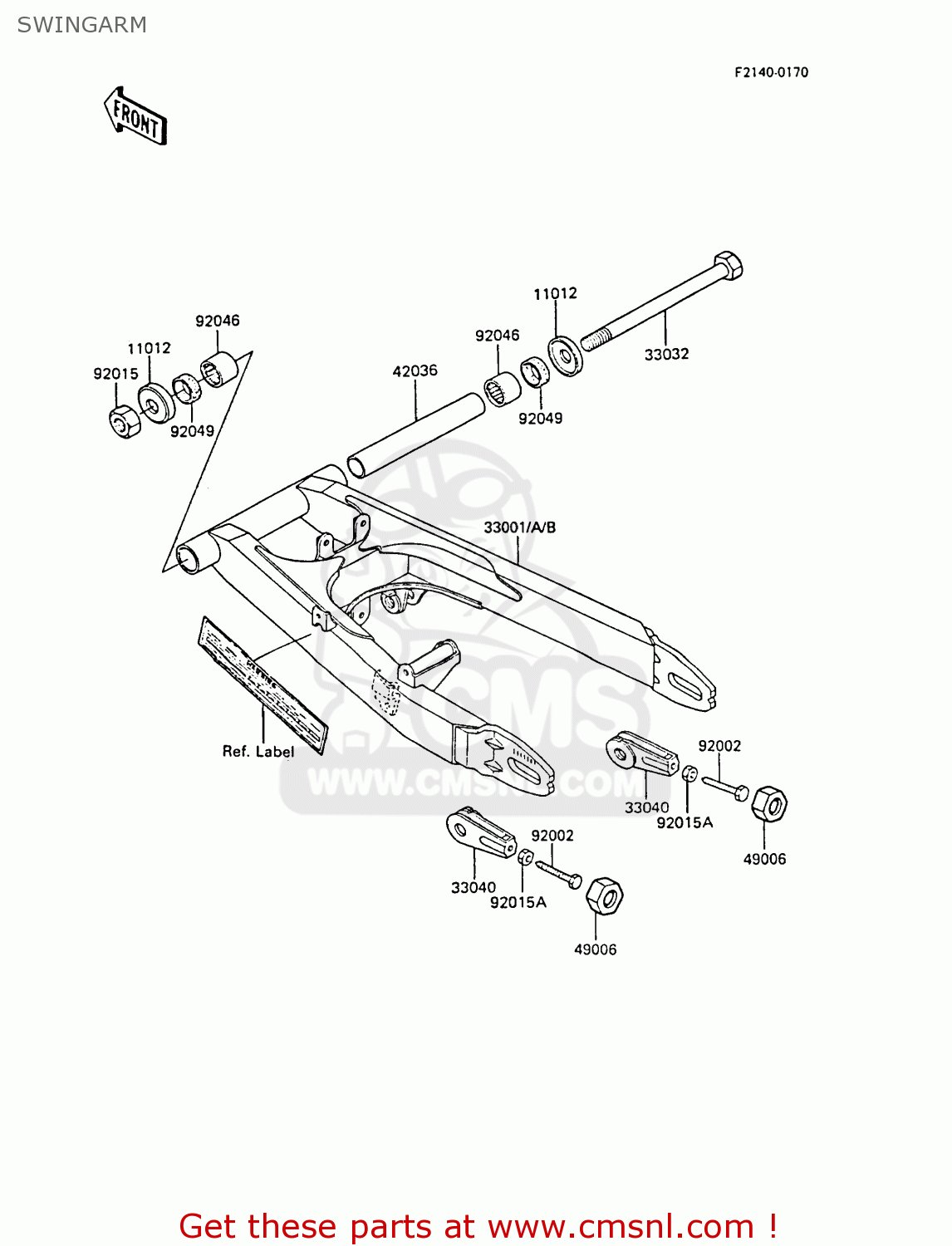

Swingarm diagram EX305B2 GPZ305 1984 EUROPE UK GR IT FG / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

11012

110121029
ref: 11012

CAP,SWING ARM

€ 13.50

33001

330011167F2
ref: 33001

ARM-COMP-SWING,G.SILV

€ 268.00

33032

330321041
ref: 33032

SHAFT-SWING ARM

€ 37.50

33040

33040043
ref: 33040

ADJUSTER-CHAIN

€ 20.50

42036

420361021
ref: 42036

SLEEVE,SWING ARM,14.1

€ 48.50

92002

920021076
ref: 92002

BOLT,8X50

€ 6.00

92015

920151212
ref: 92015

NUT,LOCK,14MM,BLACK

€ 5.50

92015A

920151364
ref: 92015A

NUT,8MM

€ 2.50

92046

92046061
ref: 92046

NEEDLE BEARING

€ 24.00

92049

920491059
ref: 92049

OIL SEAL,MHA22284

€ 7.00
