REAR MASTER CYLINDER

EX250H9 ZZR250 1998 SPAIN

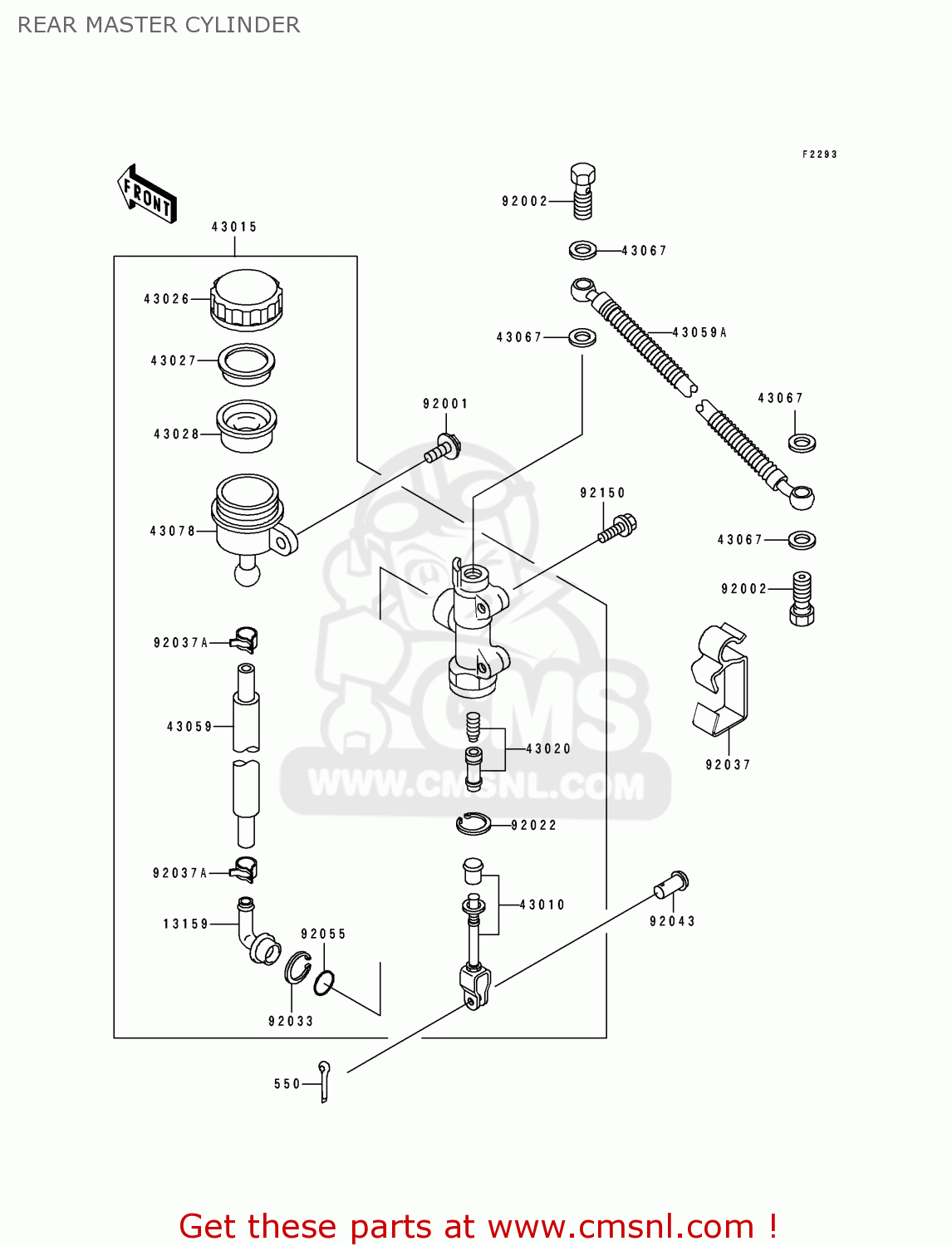

Rear master cylinder diagram EX250H9 ZZR250 1998 SPAIN

REAR MASTER CYLINDER EX250H9 ZZR250 1998 SPAIN
REAR MASTER CYLINDER EX250H9 ZZR250 1998 SPAIN
REAR MASTER CYLINDER EX250H9 ZZR250 1998 SPAIN
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015
430151497
ref: 43015
CYLINDER-ASSY-MASTER,
€ 273.50
43020
430201073
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261077
ref: 43026
CAP-BRAKE
430261077
€ 23.00
43027
430271053
ref: 43027
PLATE-DIAPHRAGM
430271053
€ 4.00
43028
430281065
ref: 43028
DIAPHRAGM
430281065
€ 13.00
43059
430591651
ref: 43059
HOSE-BRAKE,RR MASTER
430591651
€ 24.50
43059A
430591805
ref: 43059A
HOSE-BRAKE,RR
€ 85.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781080
ref: 43078
RESERVOIR
430781080
€ 19.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371498
ref: 92037
CLAMP,RR BRAKE HOSE
920371498
€ 5.00
92037A
920371710
ref: 92037A
CLAMP
920371710
€ 6.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
