CRANKCASE BOLT PATTERN

EX250F7 GPX250R 1993 UNITED KINGDOM

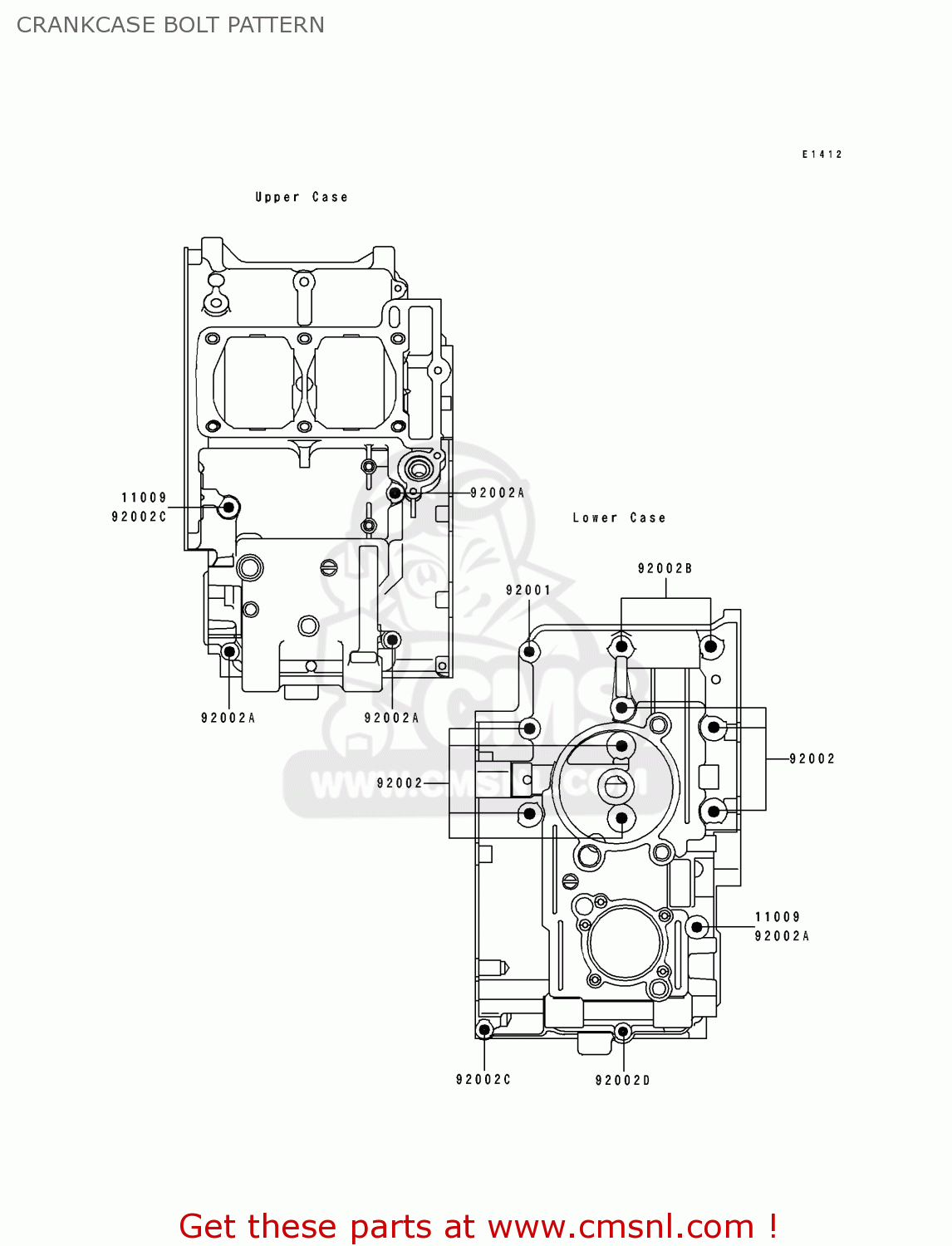

Crankcase bolt pattern diagram EX250F7 GPX250R 1993 UNITED KINGDOM

CRANKCASE BOLT PATTERN EX250F7 GPX250R 1993 UNITED KINGDOM
CRANKCASE BOLT PATTERN EX250F7 GPX250R 1993 UNITED KINGDOM
CRANKCASE BOLT PATTERN EX250F7 GPX250R 1993 UNITED KINGDOM
prices are in EUR
ref
part #
description
quantity
11009
110091568
ref: 11009
GASKET,6.5X12X1.0 (NAS)
110091568
€ 2.50
92001
920011899
ref: 92001
BOLT,6X38
920011899
€ 2.50
92002
920021057
ref: 92002
BOLT,8X90
920021057
€ 6.50
92002A
920021306
ref: 92002A
BOLT
920021306
€ 3.50
92002B
920021329
ref: 92002B
BOLT,8X72
920021329
€ 6.50
92002C
920021584
ref: 92002C
BOLT,6X60
920021584
€ 3.50
92002D
920021687
ref: 92002D
BOLT,6X135
920021687
€ 5.50
