RADIATOR

EX250F6 NINJA 250R 1992 USA CALIFORNIA CANADA

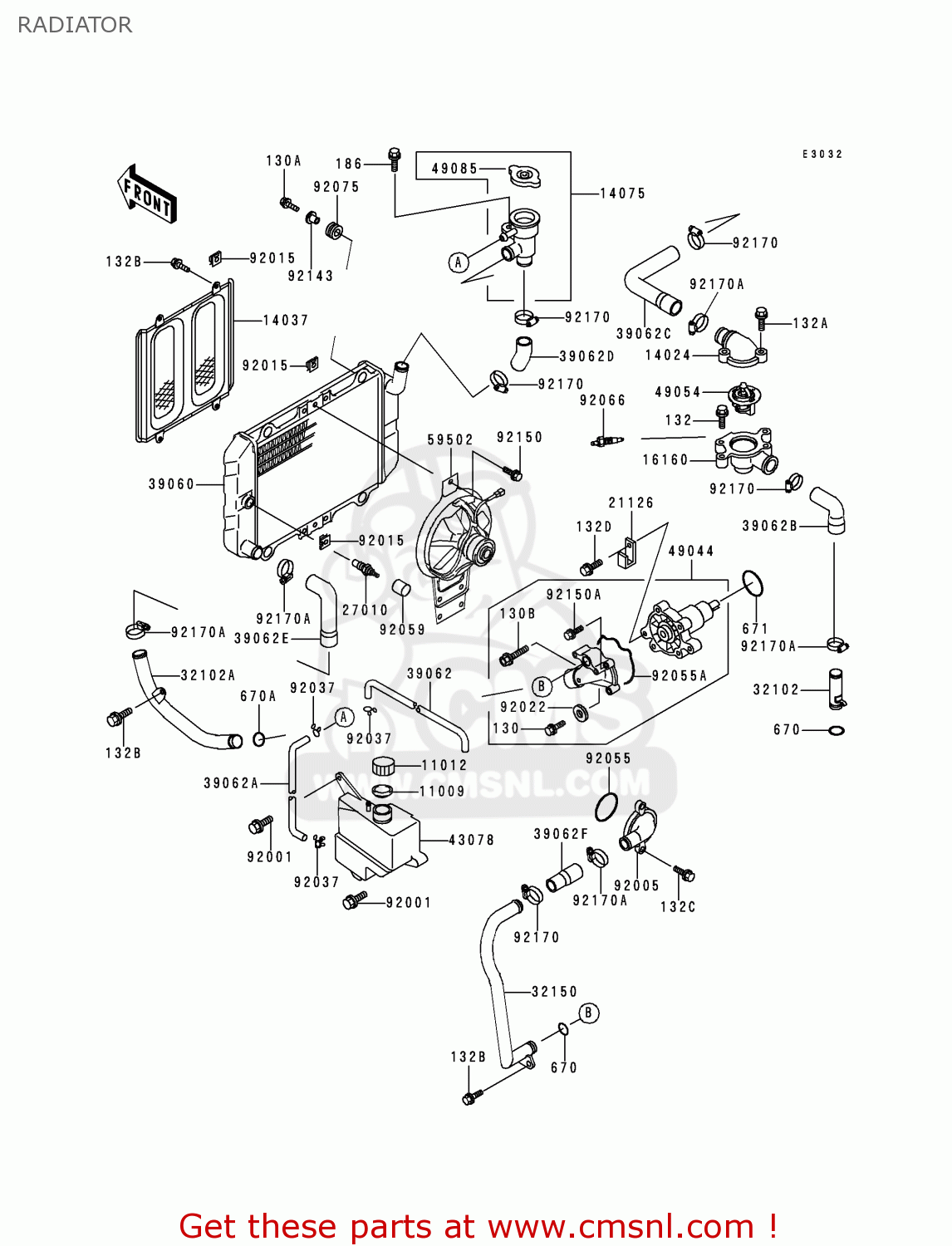

Radiator diagram EX250F6 NINJA 250R 1992 USA CALIFORNIA CANADA

RADIATOR EX250F6 NINJA 250R 1992 USA CALIFORNIA CANADA
RADIATOR EX250F6 NINJA 250R 1992 USA CALIFORNIA CANADA
RADIATOR EX250F6 NINJA 250R 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14024
140241232
ref: 14024
COVER,THERMOSTAT UPP
140241232
€ 43.00
14037
140371078
ref: 14037
SCREEN
140371078
€ 43.50
14075
140751061
ref: 14075
CAP-ASSY
140751061
€ 128.00
16160
161601110
ref: 16160
BODY,THERMOSTAT
€ 29.50
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
21126008
€ 3.00
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
270101304
€ 63.00
32102
321021021
ref: 32102
PIPE,HEAD-THERMOSTAT
321021021
€ 17.50
32102A
321021531
ref: 32102A
PIPE
321021531
€ 41.50
32150
321501143
ref: 32150
PIPE
€ 53.00
39060
390601087
ref: 39060
RADIATOR
390601087
€ 639.50
39062
390621007
ref: 39062
HOSE-COOLING,RESERVIR
€ 25.00
39062A
390621028
ref: 39062A
HOSE-COOLING
€ 25.00
39062B
390621170
ref: 39062B
HOSE-COOLING,HEAD-THE
390621170
€ 14.00
39062C
390621171
ref: 39062C
HOSE-COOLING,CAP-THER
€ 25.50
39062D
390621172
ref: 39062D
HOSE-COOLING,RADIATOR
€ 17.00
39062E
390621173
ref: 39062E
HOSE-COOLING,RADIATOR
€ 11.00
39062F
390621246
ref: 39062F
HOSE-COOLING,PUMP-CYL
390621246
€ 7.50
43078
430781070
ref: 43078
RESERVOIR
€ 32.00
49044
490441064
ref: 49044
PUMP-WATER
490441064
€ 244.00
49054
490541058
ref: 49054
THERMOSTAT
490541058
€ 41.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
59502
595021066
ref: 59502
FAN-ASSY
595021066
€ 425.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
920011516
€ 3.00
92005
920051145
ref: 92005
FITTING,CYLINDER
920051145
€ 22.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055091
ref: 92055
0 RING
92055091
€ 4.00
92055A
920551432
ref: 92055A
RING-O
920551432
€ 7.50
92059
920591979
ref: 92059
TUBE
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92075
920751665
ref: 92075
DAMPER
920751665
€ 5.00
92143
921431063
ref: 92143
COLLAR
921431063
€ 6.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501562
ref: 92150A
BOLT, FLANGED 6X18
€ 2.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
92170A
921701286
ref: 92170A
CLAMP
921701286
€ 13.00
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
130B
130J0635
ref: 130B
BOLT-FLANGED,6X35
130J0635
€ 3.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
132G0625
€ 3.00
132B
132J0612
ref: 132B
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132C
132J0616
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0630
ref: 132D
BOLT-FLANGED-SMALL
132J0630
€ 2.50
186
186C0616
ref: 186
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
671
671D2535
ref: 671
O RING
671D2535
€ 4.00
