GEAR CHANGE MECHANISM

EX250F4 NINJA 250R 2000 USA CALIFORNIA

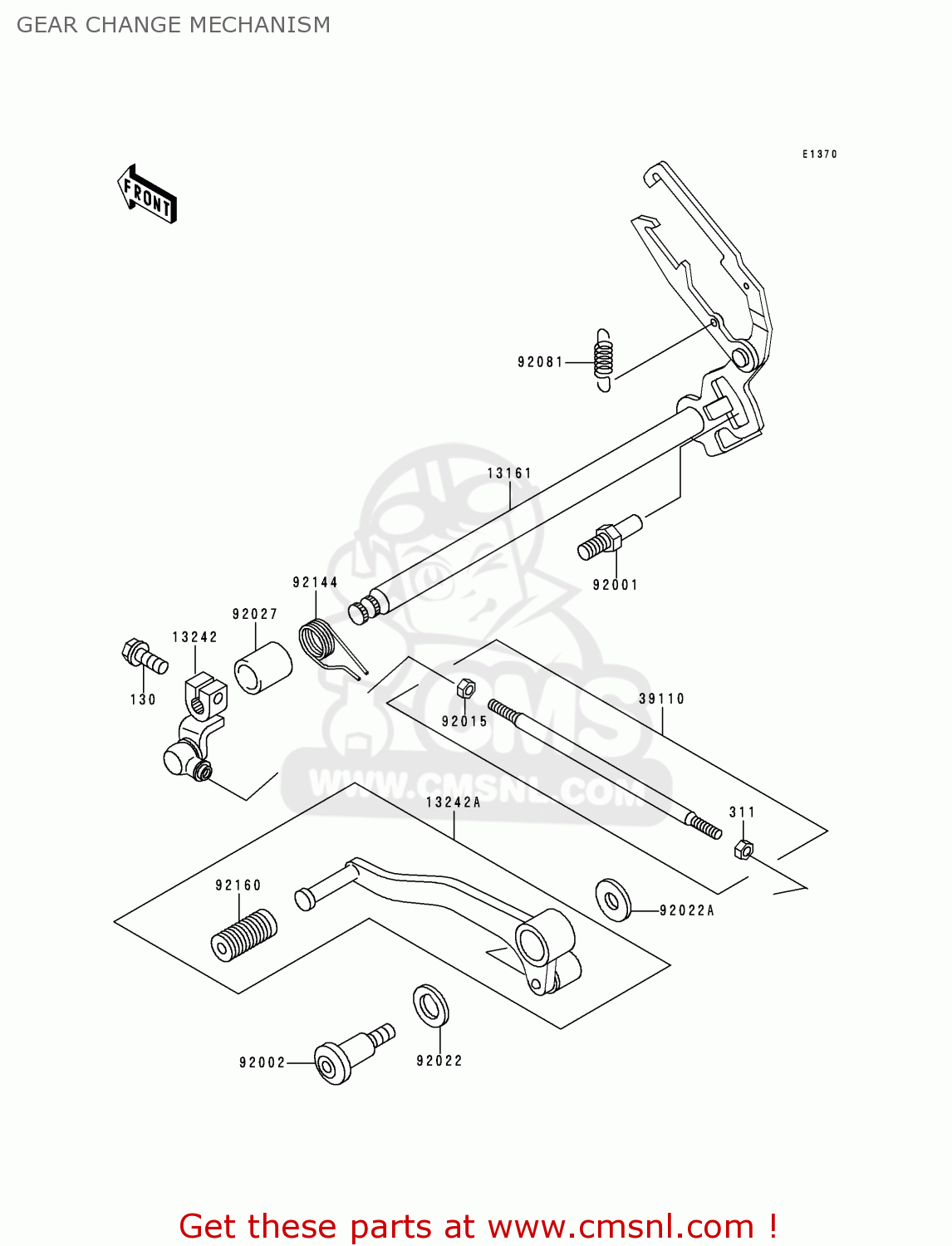

Gear change mechanism diagram EX250F4 NINJA 250R 2000 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

311

311J0600
ref: 311

NUT-HEX

€ 1.00

13161

131611131
ref: 13161

LEVER-COMP-CHANGE SHA

€ 77.00

13242

132421214
ref: 13242

LEVER-ASSY-CHANGE

€ 25.00

13242A

132421215
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 40.00

39110

391101075
ref: 39110

ROD-ASSY-TIE

€ 9.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021926
ref: 92002

BOLT,CHANGE PEDAL

€ 10.50

92015

920151178
ref: 92015

NUT

€ 2.50

92022

92022072
ref: 92022

WASHER,12.5X22X1.2

€ 2.50

92022A

920221561
ref: 92022A

WASHER,8.5X20X1.6

€ 2.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92144

921441074
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.50

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
