FRONT HUB
EX250F3 GPX250R 1989 EUROPE UK

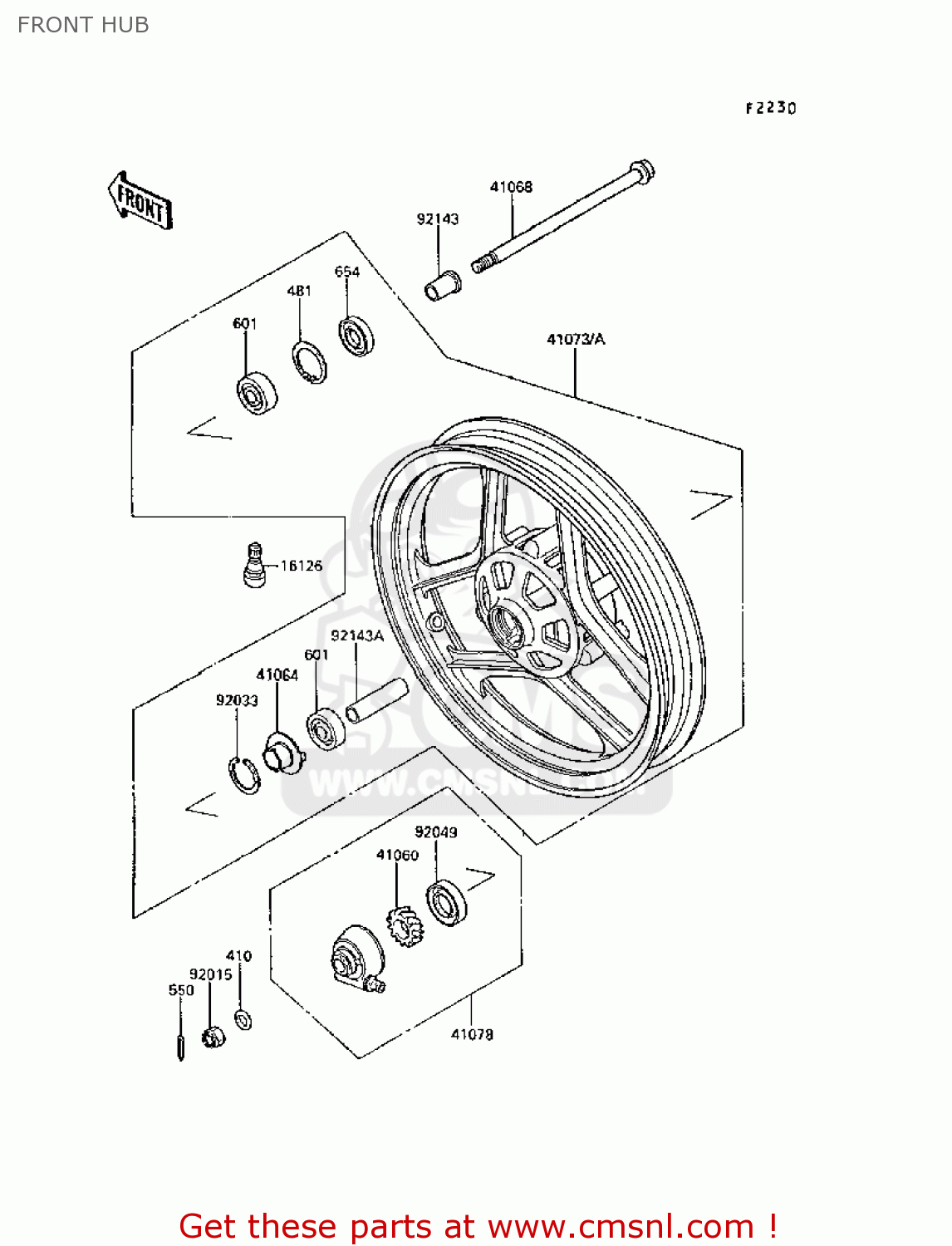

Front hub diagram EX250F3 GPX250R 1989 EUROPE UK
FRONT HUB EX250F3 GPX250R 1989 EUROPE UK
×
prices are in EUR
ref
part #
description
quantity
410
410B1400
ref: 410
410B1400
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
654
654A223508
ref: 654
OIL SEAL
€ 7.50
16126
161261140
ref: 16126
VALVE,TIRE
€ 20.50
41060
410601107
ref: 41060
GEAR-METER SCREW,23T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681220
ref: 41068
AXLE,FR
€ 49.00
41073
410731365T6
ref: 41073
WHEEL-ASSY,FR,WHITE N
€ 585.00
41073A
410731365X4
ref: 41073A
WHEEL-ASSY,FR,F.RED
€ 574.00
41078
410781055
ref: 41078
CASE-ASSY-METER GEAR
€ 102.50
92015
42045020
ref: 92015
NUT,14MM
€ 6.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92143
920271979
ref: 92143
COLLAR,L=36.5
€ 13.50
92143A
920271980
ref: 92143A
COLLAR,15.2X22X60
€ 9.50
