CRANKCASE
EX250F2 GPX250R 1988 UNITED KINGDOM

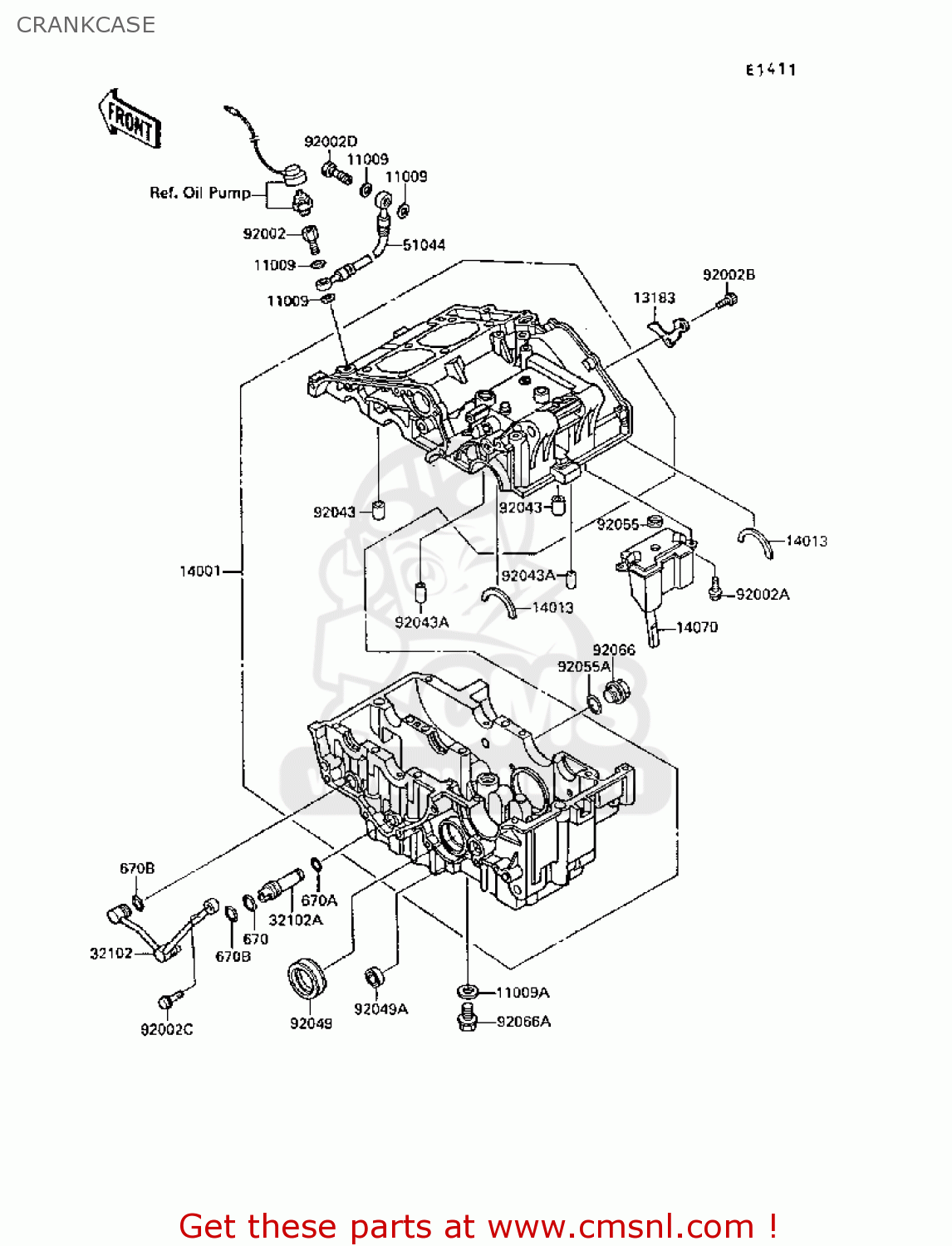

Crankcase diagram EX250F2 GPX250R 1988 UNITED KINGDOM
CRANKCASE EX250F2 GPX250R 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
670
670D1509
ref: 670
O RING,9MM
€ 3.00
670A
670D2010
ref: 670A
O RING,10MM
€ 1.00
670B
670D2012
ref: 670B
O RING,12MM
€ 1.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
13183
131691659
ref: 13183
PLATE
€ 6.00
14001
140015237
ref: 14001
SET-CRANKCASE
€ 1,169.50
14013
14013004
ref: 14013
RING-BEARING SETTING
€ 7.00
14070
140701065
ref: 14070
BODY-BREATHER
€ 52.00
32102
321021017
ref: 32102
PIPE
€ 65.00
32102A
321021018
ref: 32102A
PIPE
€ 11.50
51044
510441074
ref: 51044
TUBE-ASSY
€ 46.00
92002
920021427
ref: 92002
BOLT,OIL SWITCH
€ 15.50
92002A
920021449
ref: 92002A
BOLT,6X10
€ 2.50
92002B
920021592
ref: 92002B
BOLT,6X12
€ 2.50
92002C
920021705
ref: 92002C
BOLT,BANJO,8X20
€ 6.00
92002D
920021907
ref: 92002D
BOLT
€ 3.50
92043
920431265
ref: 92043
PIN,9.2X12X14
€ 4.50
92043A
920431309
ref: 92043A
PIN,3.5X6X16
€ 3.00
92049
92050024
ref: 92049
OIL SEAL SC325210
€ 5.00
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920661096
ref: 92066
PLUG,MAIN GALLARY,18X
€ 7.50
92066A
920661174
ref: 92066A
PLUG,OIL DRAIN,12X15
€ 4.00
