FRONT FORK
EX250F19 NINJA 250R 2005 USA CALIFORNIA

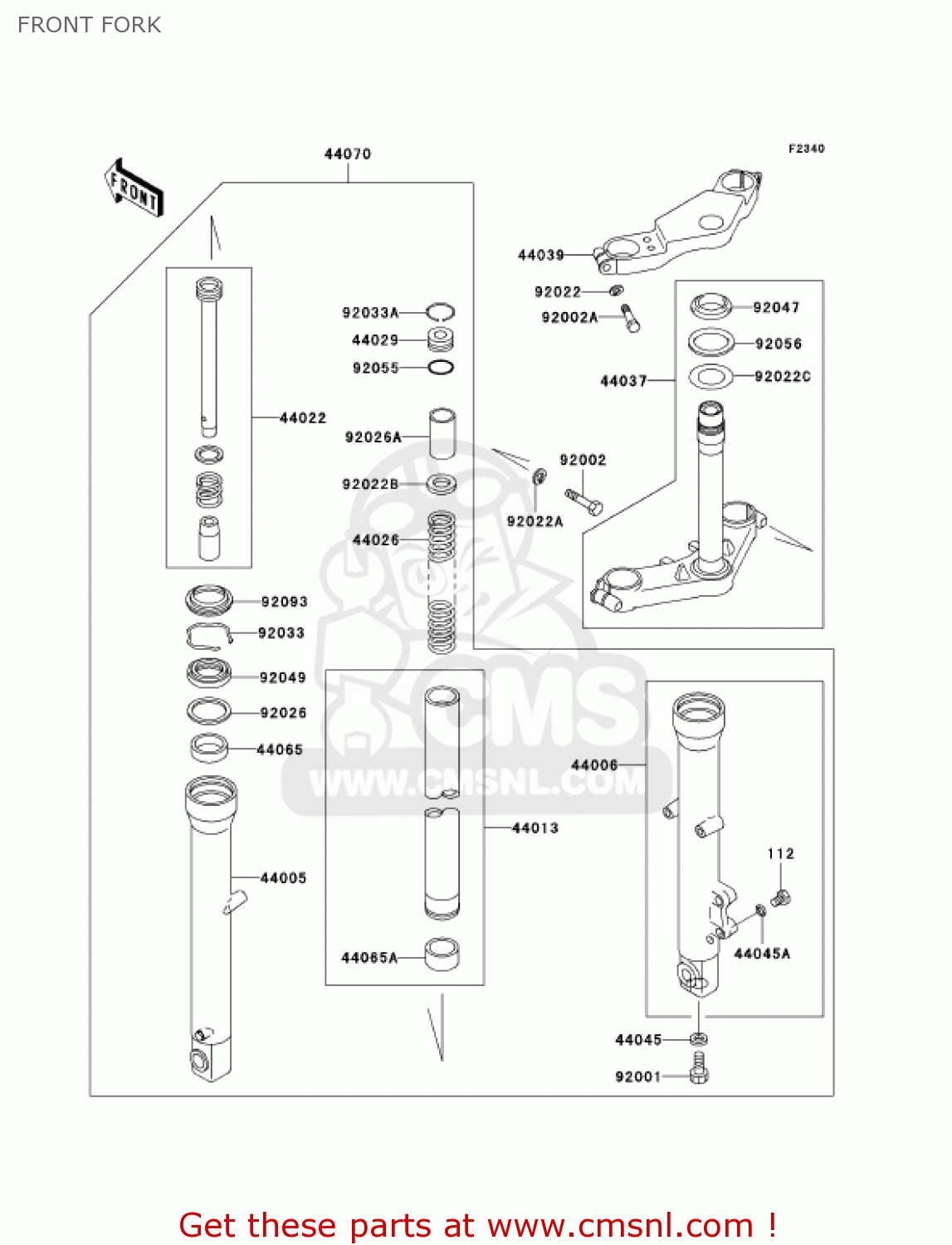

Front fork diagram EX250F19 NINJA 250R 2005 USA CALIFORNIA
FRONT FORK EX250F19 NINJA 250R 2005 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
44005
440051258
ref: 44005
PIPE-LEFT FORK OUTER
€ 332.00
44006
440061255
ref: 44006
PIPE-RIGHT FORK OUTER
€ 366.00
44013
440131273
ref: 44013
PIPE-FORK INNER
€ 147.00
44022
440221206
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261362
ref: 44026
SPRING-FRONT FORK
€ 28.50
44029
440291127
ref: 44029
SEAT-FORK SPRING
€ 33.00
44037
440371217
ref: 44037
HOLDER-FORK UNDER
€ 250.50
44039
440391163
ref: 44039
HOLDER-FORK UPPER
€ 229.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651082
ref: 44065A
BUSHING-FRONT FORK
€ 13.00
44070
440705026
ref: 44070
DAMPER-ASSY,FORK
€ 1,100.50
92001
920011464
ref: 92001
BOLT
€ 4.00
92002
920021811
ref: 92002
BOLT,10X32
€ 7.50
92002A
920021959
ref: 92002A
BOLT
€ 6.50
92022
920221552
ref: 92022
WASHER,SPRING,8MM
€ 2.50
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
€ 2.00
92022B
920221879
ref: 92022B
WASHER
€ 3.00
92022C
92022231
ref: 92022C
WASHER,PLAIN
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92026A
920261291
ref: 92026A
SPACER
€ 5.00
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331236
ref: 92033A
RING-SNAP
€ 5.00
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551384
ref: 92055
RING-O,FORK SPRING SE
€ 3.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
€ 15.50
