COWLING
EX250F17 NINJA 250R 2003 USA CALIFORNIA

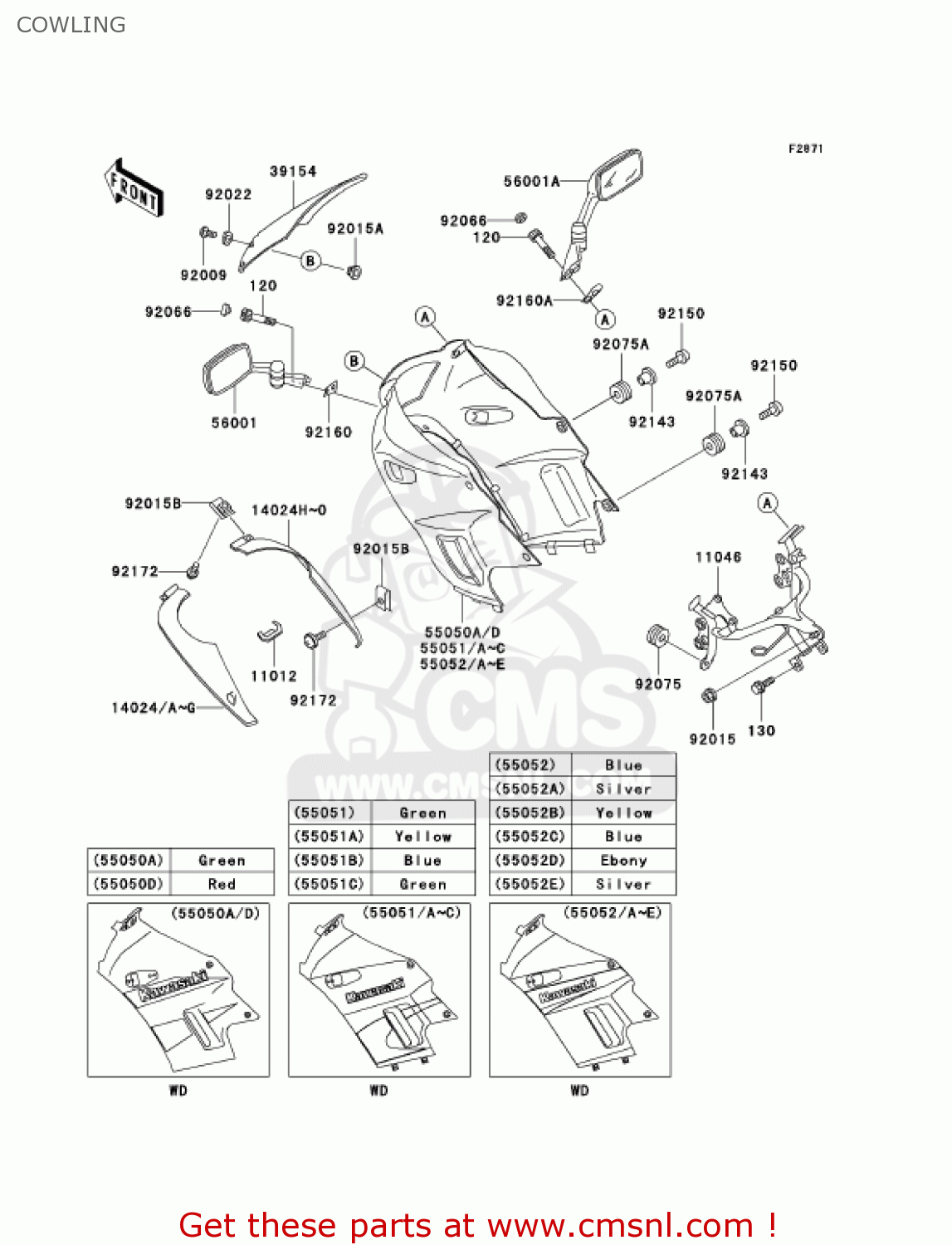

Cowling diagram EX250F17 NINJA 250R 2003 USA CALIFORNIA
COWLING EX250F17 NINJA 250R 2003 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11012
110121587
ref: 11012
CAP,RADIATOR COVER
€ 5.50
11046
110461289
ref: 11046
BRACKET,COWLING STAY
€ 259.50
14024A
140241580GW
ref: 14024A
COVER,RADIATOR,LH,M.S
€ 53.50
14024E
1402415801B
ref: 14024E
COVER,RADIATOR,LH,P.C
€ 53.50
14024G
1402415807F
ref: 14024G
RADIATOR COVER,LH,LIME GREEN
€ 50.50
14024I
140241581GW
ref: 14024I
COVER,RADIATOR,RH,M.S
€ 53.50
14024M
1402415811B
ref: 14024M
COVER,RADIATOR,RH,P.C
€ 53.50
14024O
1402415817F
ref: 14024O
RADIATOR COVER,RH,LIME GREEN
€ 51.50
39154
391541083
ref: 39154
WINDSHIELD
€ 148.00
55051A
5505151021B
ref: 55051A
COWLING-ASSY,UPP,P.C.
€ 532.00
55051B
550515292GW
ref: 55051B
COWLING-ASSY,UPP,M.S.
€ 532.00
55051C
5505152947F
ref: 55051C
COWLING-ASSY,UPP,L.GR
€ 532.00
120
120S0840
ref: 120
BOLT-SOCKET,8X40,BLAC
€ 3.00
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
56001
560011337
ref: 56001
MIRROR-ASSY,LH
€ 137.00
56001A
560011338
ref: 56001A
MIRROR-ASSY,RH
€ 137.00
92009
920091652
ref: 92009
SCREW
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
€ 3.00
92015B
920151602
ref: 92015B
NUT,6MM
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92066
920661312
ref: 92066
PLUG
€ 3.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92075A
920751634
ref: 92075A
DAMPER
€ 3.00
92143
921431226
ref: 92143
COLLAR,BLACK
€ 7.50
92150
921501553
ref: 92150
BOLT,SOCKET,6X18
€ 4.00
92160
921601060
ref: 92160
DAMPER,MIRROR,LH
€ 3.50
92160A
921601061
ref: 92160A
DAMPER,MIRROR,RH
€ 3.50
92172
921720002
ref: 92172
SCREW,6X18
€ 2.00
