FRAME FITTINGS

EX250F12 NINJA 250R 1998 USA CALIFORNIA CANADA

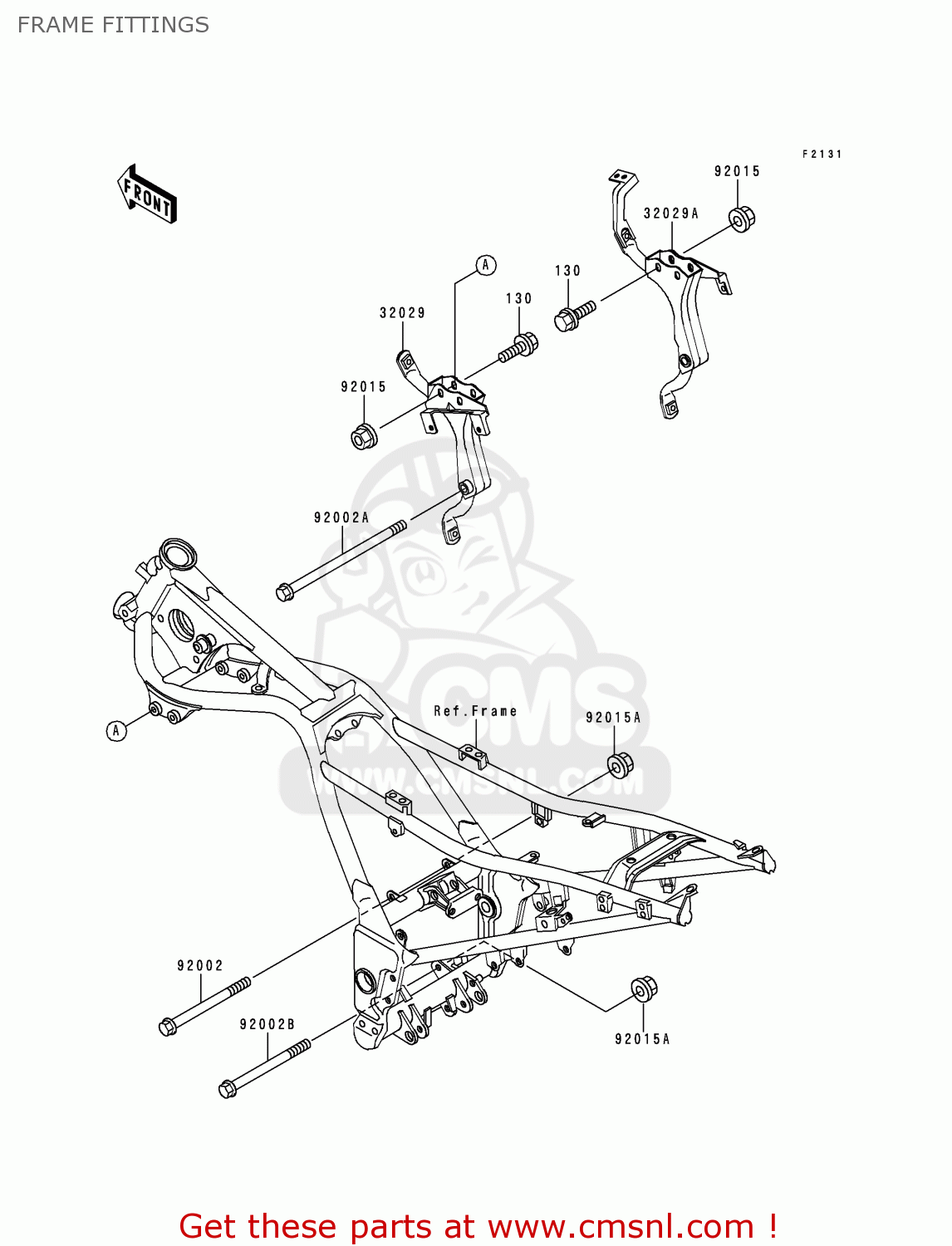

Frame fittings diagram EX250F12 NINJA 250R 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130G0840
ref: 130

BOLT-FLANGED,8X40

€ 1.00

32029

320291542
ref: 32029

BRACKET-ENGINE,HEAD,L

€ 95.00

32029A

320291543
ref: 32029A

BRACKET-ENGINE,HEAD,R

€ 95.00

92002

920021087
ref: 92002

BOLT,10X130

€ 6.50

92002A

920021470
ref: 92002A

BOLT,FLANGED,10X170

€ 13.50

92002B

920021795
ref: 92002B

BOLT

€ 8.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151180
ref: 92015A

NUT,FLANGED,10MM,BLAC

€ 2.50
