CHASSIS ELECTRICAL EQUIPMENT

EX250E2 NINJA 250R 1987 USA CALIFORNIA CANADA

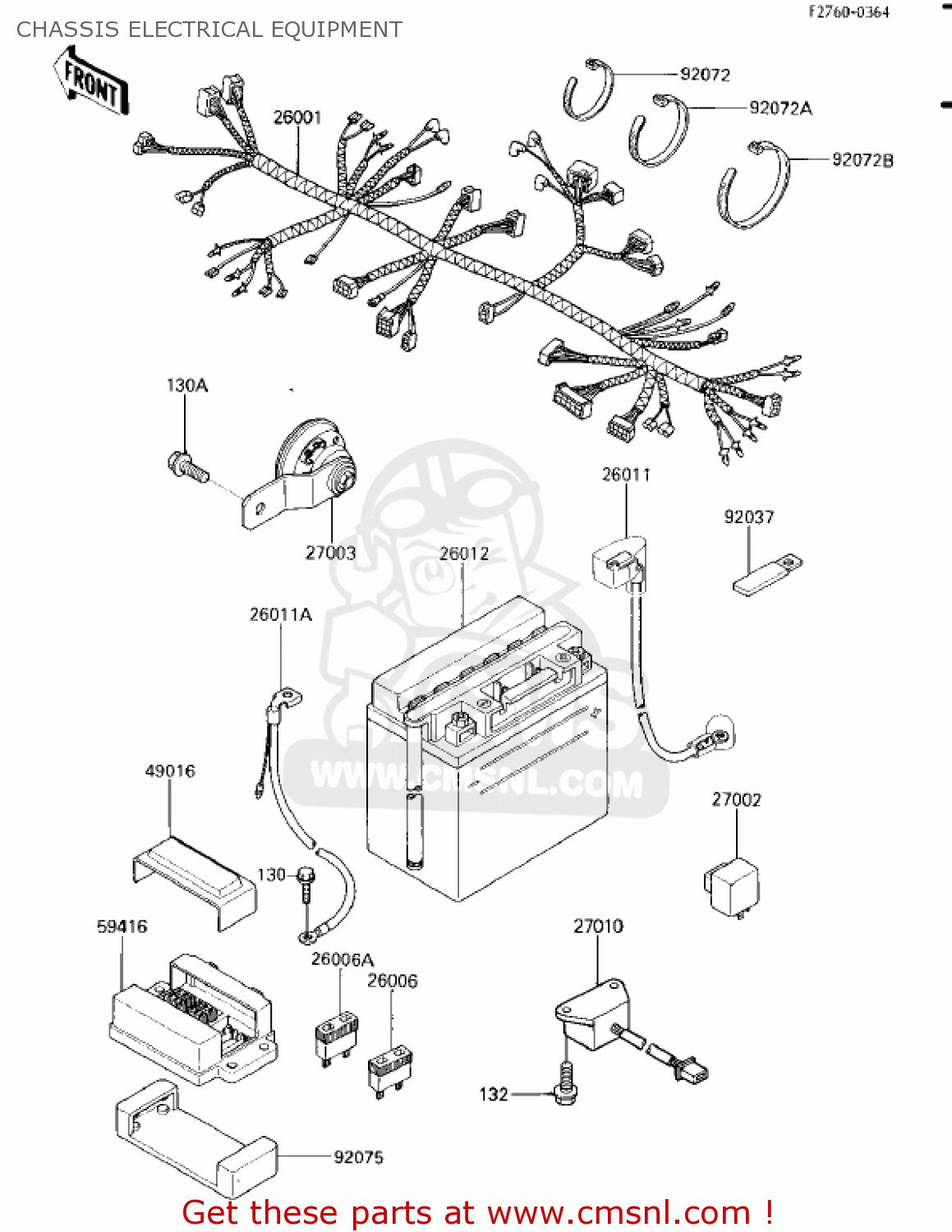

Chassis electrical equipment diagram EX250E2 NINJA 250R 1987 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

26001

260011783
ref: 26001

HARNESS,MAIN

€ 130.50

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111352
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 19.00

26011A

260111353
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 21.50

26012

260121127
ref: 26012

BATTERY,FB,FB9L-A2K (K2)

€ 60.00

27002

270021053
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 33.50

27003

270031242
ref: 27003

HORN

€ 46.00

27010

270101069
ref: 27010

SWITCH,RESERVE LIGTIN

€ 149.00

49016

490161125
ref: 49016

COVER-SEAL,FUSE

€ 6.00

59416

594161059
ref: 59416

CASE-ELECTRIC,JUNCTIO

€ 123.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92072B

92072032
ref: 92072B

BAND,LONG

€ 3.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

130A

130C0814
ref: 130A

BOLT-FLANGED

€ 2.50

132

132H0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00
