HANDLEBAR(ER500-B2∼B4)
ER500B4 ER5 2000 EUROPE FR FG

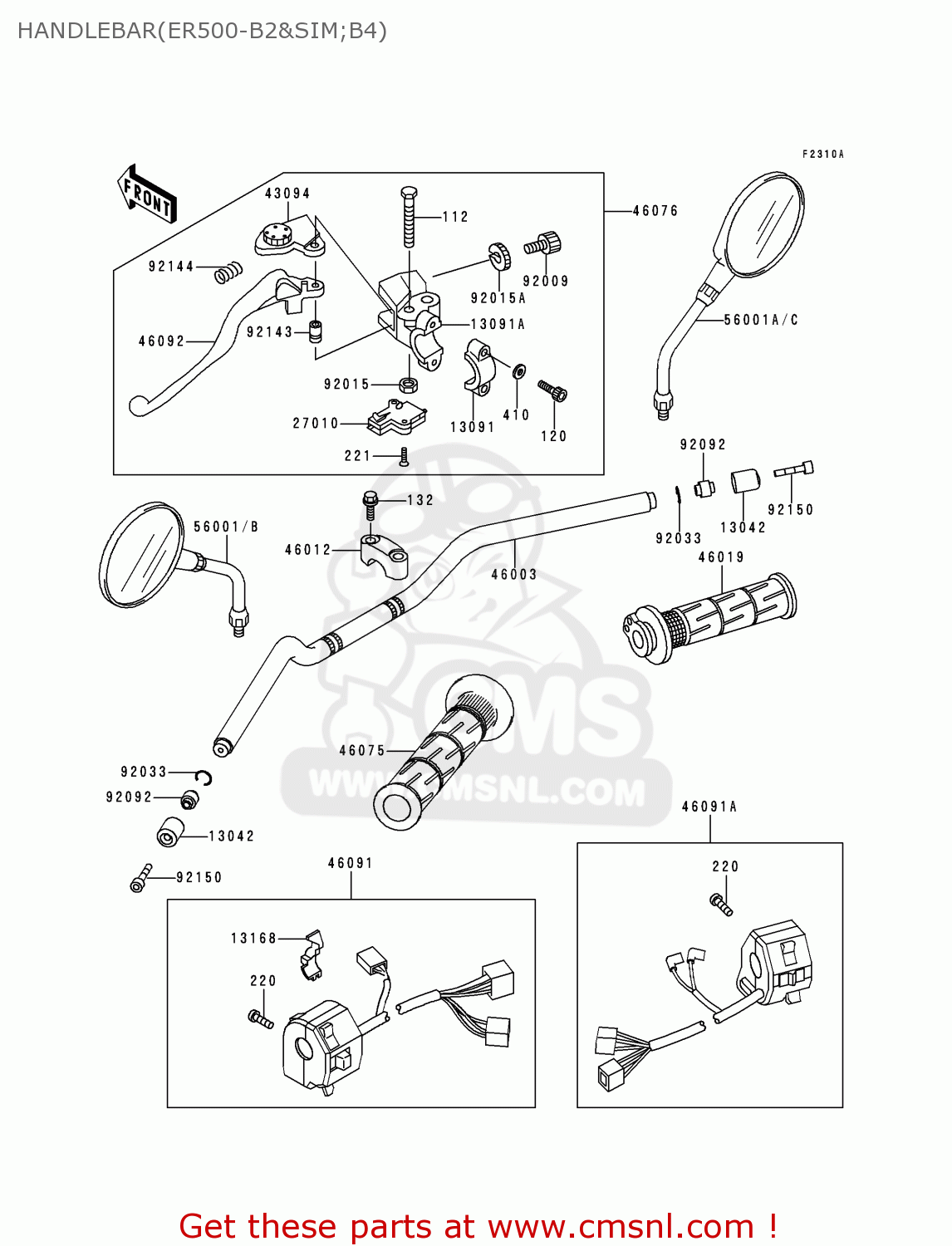

Handlebar(er500-b2∼b4) diagram ER500B4 ER5 2000 EUROPE FR FG
HANDLEBAR(ER500-B2∼B4) ER500B4 ER5 2000 EUROPE FR FG
×
prices are in EUR
ref
part #
description
quantity
112
112C0640
ref: 112
BOLT-UPSET
€ 2.50
120
120S0620
ref: 120
BOLT-SOCKET,6X20
€ 1.00
132
132E0835
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
220
220C0520
ref: 220
SCREW-PAN-CROS
€ 0.50
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
13042
130421006
ref: 13042
WEIGHT,HANDLE
€ 40.50
13091
130911624
ref: 13091
HOLDER,CLUTCH LEVER
€ 26.00
13091A
130911652
ref: 13091A
HOLDER,CLUTCH LEVER
€ 40.50
13168
131681448
ref: 13168
LEVER,CHOKE
€ 17.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
43094
430941053
ref: 43094
ADJUSTER,CLUTCH LEVER
€ 26.00
46003
460031490
ref: 46003
HANDLE
€ 136.50
46012
460121267
ref: 46012
HOLDER-HANDLE,UPP
€ 22.50
46019
460191090
ref: 46019
GRIP-ASSY,THROTTLE
€ 26.00
46075
460751144
ref: 46075
GRIP,LH
€ 11.50
46076
460761180
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 129.50
46091
460911658
ref: 46091
HOUSING-ASSY-CONTROL,
€ 127.00
46091A
460911659
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 127.50
46092
460921162
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.50
56001B
560011537
ref: 56001B
MIRROR-ASSY,LH
€ 86.00
56001C
560011538
ref: 56001C
MIRROR-ASSY,RH
€ 81.00
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92033
920331102
ref: 92033
RING-SNAP,OD=22.2
€ 2.50
92092
920921018
ref: 92092
BUSHING-RUBBER,HANDLE
€ 10.50
92143
921431379
ref: 92143
COLLAR
€ 6.50
92144
921441467
ref: 92144
SPRING
€ 4.00
92150
921501604
ref: 92150
BOLT,SOCKET,8X30
€ 3.50
