STARTER MOTOR

ER500A2 ER5 1998 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

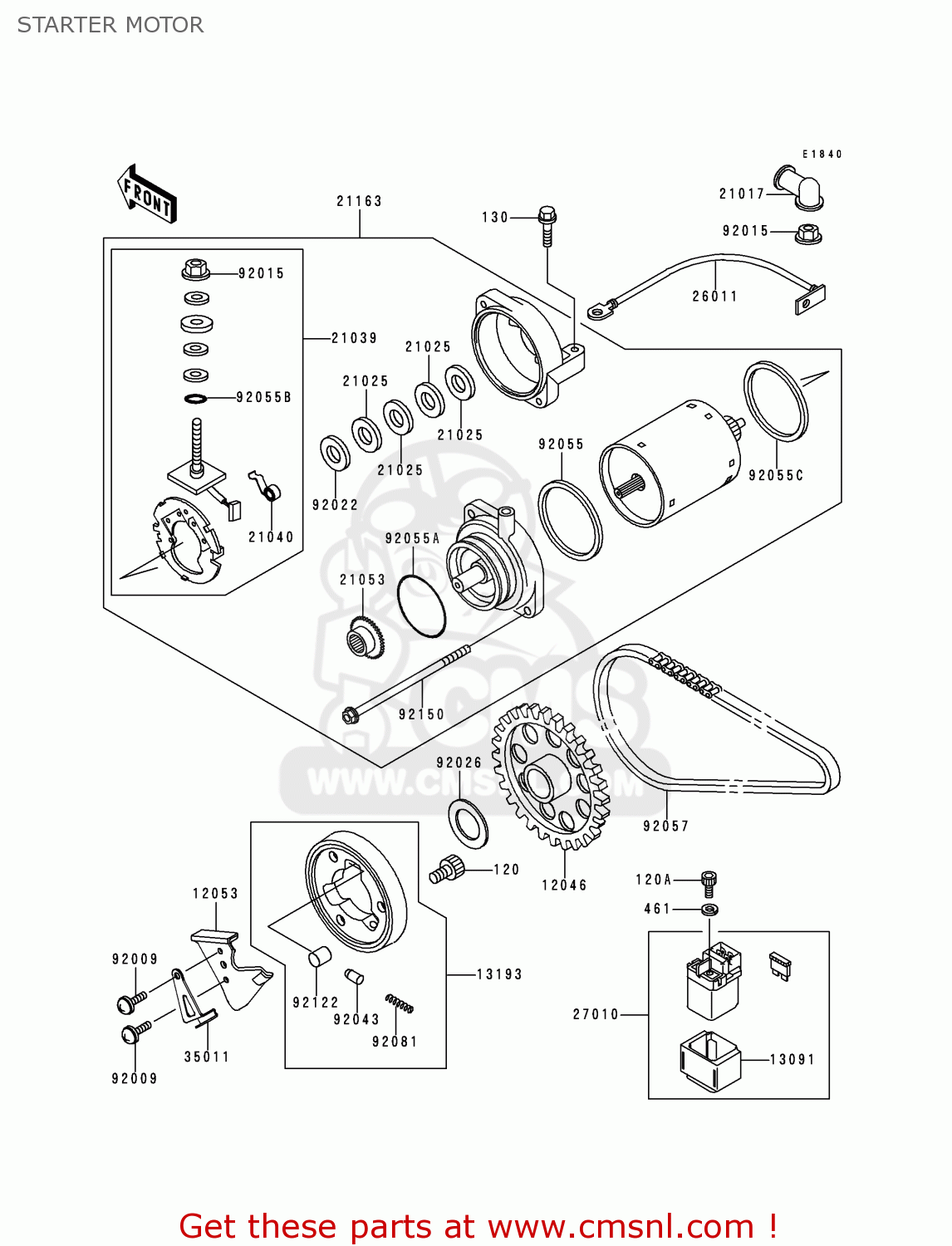

Starter motor diagram ER500A2 ER5 1998 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

STARTER MOTOR ER500A2 ER5 1998 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
STARTER MOTOR ER500A2 ER5 1998 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
STARTER MOTOR ER500A2 ER5 1998 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
120P0816
€ 2.50
120A
120S0510
ref: 120A
BOLT-SOCKET
120S0510
€ 0.50
130
130Y0625
ref: 130
BOLT-FLANGED
130Y0625
€ 2.00
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
12046
120461072
ref: 12046
SPROCKET,ONEWAY CLUTC
120461072
€ 69.00
12053
120531214
ref: 12053
GUIDE-CHAIN
120531214
€ 29.50
13091
130911992
ref: 13091
HOLDER
€ 5.50
13193
131931060
ref: 13193
CLUTCH-ASSY-ONEWAY
131931060
€ 122.00
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
210391062
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
210401057
€ 5.50
21053
210531057
ref: 21053
SPROCKET-ASSY
210531057
€ 28.50
21163
211631274
ref: 21163
STARTER-ELECTRIC
€ 466.50
26011
260111636
ref: 26011
WIRE-LEAD,STARTER MOT
€ 43.00
27010
270101376
ref: 27010
SWITCH,MAGNETIC
270101376
€ 106.50
35011
350111792
ref: 35011
STAY,CHAIN GUIDE
€ 3.50
92009
920091765
ref: 92009
SCREW
920091765
€ 2.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92026
920261285
ref: 92026
SPACER,25.2X40X1.0
920261285
€ 4.00
92043
92043087
ref: 92043
PIN
92043087
€ 8.00
92055
920551086
ref: 92055
O RING,64MM
920551086
€ 6.50
92055A
920551313
ref: 92055A
RING-O
920551313
€ 5.50
92055B
920551370
ref: 92055B
RING-O,4.5X2.0
920551370
€ 3.00
92055C
920551381
ref: 92055C
RING-O,STARTER MOTOR
920551381
€ 6.50
92057
920571197
ref: 92057
CHAIN,STARTER,BF05MX6
920571197
€ 15.50
92081
92081110
ref: 92081
SPRING
92081110
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
92122004
€ 7.00
92150
921501138
ref: 92150
BOLT,STARTER
921501138
€ 6.00
