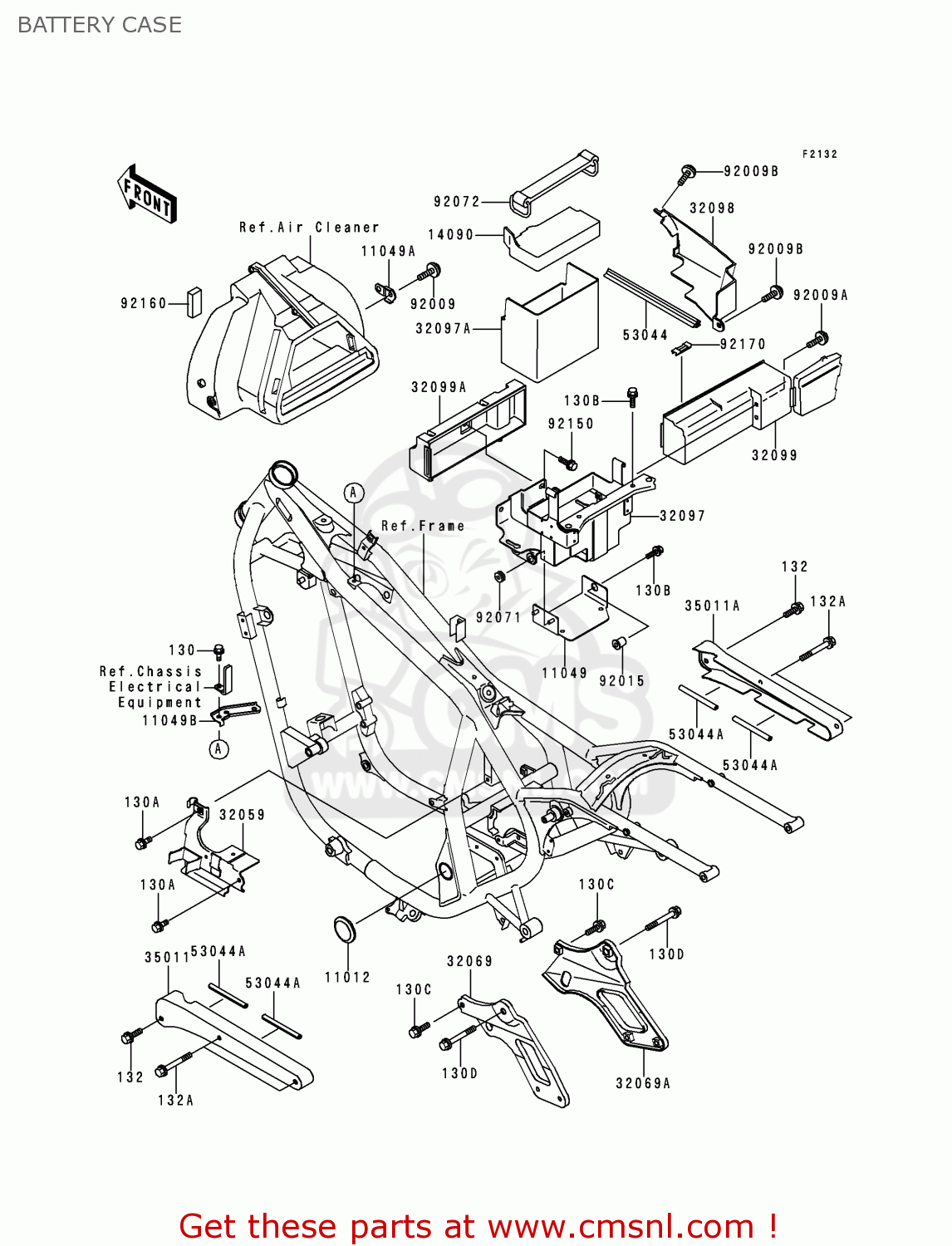

BATTERY CASE

ref

part #

description

quantity

130

130G0614
ref: 130

BOLT,FLANGED,6X14

€ 0.50

130A

130J0610
ref: 130A

BOLT-FLANGED

€ 1.50

130B

130J0616
ref: 130B

BOLT-FLANGED,6X16

€ 1.50

130C

130J0814
ref: 130C

BOLT-FLANGED,8X14

€ 2.50

130D

130J1055
ref: 130D

BOLT-FLANGED,10X55

€ 4.00

132

132E0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132E0850
ref: 132A

BOLT-FLANGED-SMALL

€ 3.50

11012

110121821
ref: 11012

CAP,PIVOT

€ 8.50

11049

110491576
ref: 11049

BRACKET,IGNITER

€ 7.50

11049A

110491577
ref: 11049A

BRACKET,AIR CLEANER

€ 3.00

11049B

110491795
ref: 11049B

BRACKET,THERMOSTAT

€ 4.50

14090

140901688
ref: 14090

COVER,BATTERY

€ 16.00

32059

320591132
ref: 32059

BRACKET-SWITCH

€ 16.50

32069

320691453
ref: 32069

BRACKET-MUFFLER,LH

€ 36.50

32069A

320691454
ref: 32069A

BRACKET-MUFFLER,RH

€ 36.50

32097

320971160
ref: 32097

CASE-BATTERY

€ 116.50

32097A

320971163
ref: 32097A

CASE-BATTERY

€ 13.00

32098

320981110
ref: 32098

CASE-TOOL

€ 19.50

32099

320991170
ref: 32099

CASE

€ 47.00

32099A

320991177
ref: 32099A

CASE

€ 22.50

35011

350111757
ref: 35011

STAY,LH

€ 98.00

35011A

350111758
ref: 35011A

STAY,RH

€ 98.00

53044

530441299
ref: 53044

TRIM,L=200

€ 8.00

53044A

530443728
ref: 53044A

TRIM,L=100

€ 3.50

92009

920091402
ref: 92009

SCREW,6X10

€ 1.50

92009A

920091651
ref: 92009A

SCREW

€ 2.50

92009B

920091661
ref: 92009B

SCREW

€ 2.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92071

920713733
ref: 92071

GROMMET

€ 2.50

92072

92072006
ref: 92072

BAND,L=142.1

€ 8.00

92150

921501198
ref: 92150

BOLT

€ 2.50

92160

921601439
ref: 92160

DAMPER

€ 3.00

92170

921701646
ref: 92170

CLAMP

€ 2.50
