FUEL EVAPORATIVE SYSTEM

EN500C1 VULCAN500LTD 1996 USA CALIFORNIA CANADA

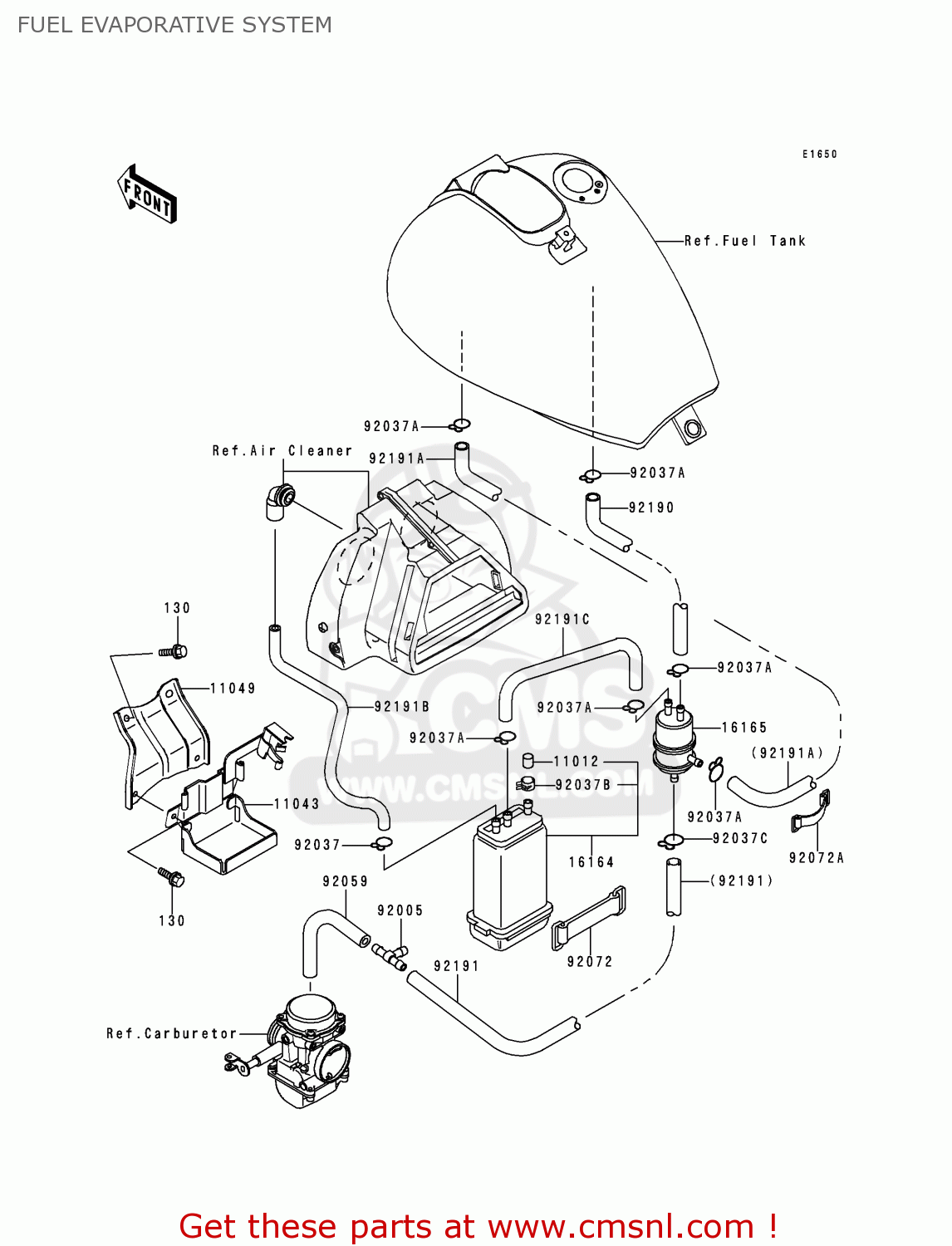

Fuel evaporative system diagram EN500C1 VULCAN500LTD 1996 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0610
ref: 130
CA

BOLT-FLANGED

€ 1.50

11012

110121388
ref: 11012
CA

CANISTER CAP

€ 5.50

11043

110431184
ref: 11043
CA

CANISTER BRACKET

€ 30.00

11049

110491663
ref: 11049
CA

BRACKET

€ 16.00

16164

161641054
ref: 16164
CA

CANISTER

€ 123.00

16165

161651001
ref: 16165
CA

SEPARATOR

€ 69.50

92005

920051017
ref: 92005
CA

FITTING,TUBE

€ 6.50

92037

920371104
ref: 92037
CA

CLAMP,HOSE

€ 1.00

92037A

92037147
ref: 92037A
CA

CLAMP,CHAIN OILER

€ 4.50

92037B

920371512
ref: 92037B
CA

CANISTER CLAMP

€ 3.50

92037C

920371712
ref: 92037C
CA

CLAMP

€ 3.00

92059

920591591
ref: 92059
CA

TUBE

€ 6.00

92072

92072006
ref: 92072
CA

BAND,L=142.1

€ 8.00

92072A

92072066
ref: 92072A
CA

BAND,L=50

€ 11.00

92190

921901620
ref: 92190
CA

SEPARATOR-TANK TUBE

€ 20.00

92191

921911062
ref: 92191
CA

TUBE,WHITE

€ 12.50

92191A

921911063
ref: 92191A
CA

TUBE,RED

€ 16.50

92191B

921911065
ref: 92191B
CA

TUBE,GREEN

€ 14.00

92191C

921911076
ref: 92191C
CA

TUBE,BLUE

€ 4.00
