FRONT FORK
EN500A7 VULCAN500 1996 USA CALIFORNIA

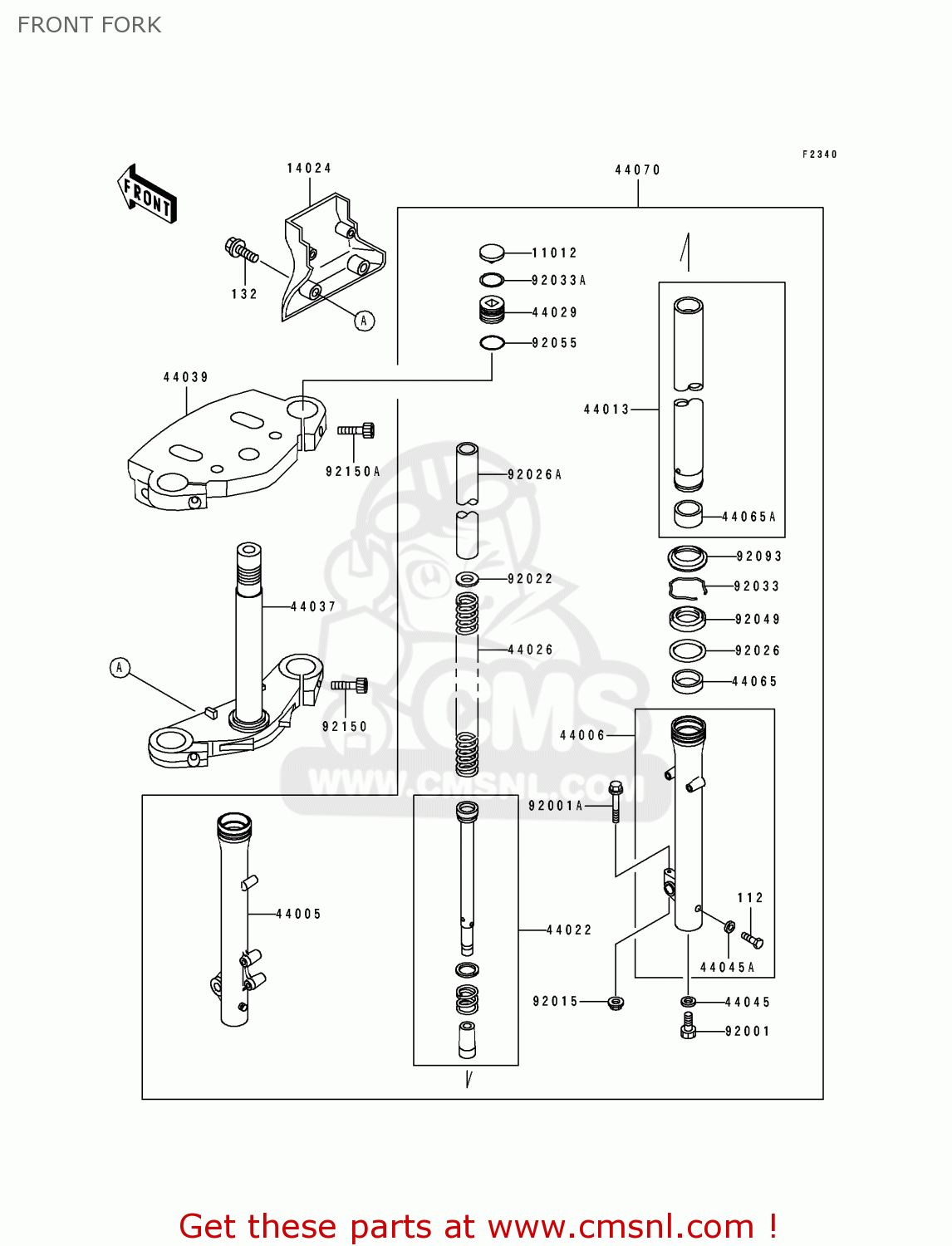

Front fork diagram EN500A7 VULCAN500 1996 USA CALIFORNIA
FRONT FORK EN500A7 VULCAN500 1996 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
11012
110121689
ref: 11012
CAP,FORK TOP
€ 21.00
14024
140241900
ref: 14024
COVER
€ 20.00
44005
440051230
ref: 44005
PIPE-LEFT FORK OUTER
€ 282.00
44006
440061230
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131286
ref: 44013
PIPE-FORK INNER
€ 154.00
44022
440221178
ref: 44022
CYLINDER-FORK
€ 78.50
44026
440261464
ref: 44026
SPRING-FRONT FORK
€ 29.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
€ 29.50
44037
440371265
ref: 44037
HOLDER-FORK UNDER
€ 195.50
44039
440391198
ref: 44039
HOLDER-FORK UPPER
€ 96.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.50
44070
440705031
ref: 44070
DAMPER-ASSY,FORK
€ 1,193.50
92001
920011464
ref: 92001
BOLT
€ 4.00
92001A
920011486
ref: 92001A
BOLT,FLANGED,8X50
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221702
ref: 92022
WASHER
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
€ 6.50
92026A
920261392
ref: 92026A
SPACER
€ 14.50
92033
920331193
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
€ 6.00
92049
920491226
ref: 92049
SEAL-OIL,FORK
€ 14.50
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
€ 15.50
92150
921501387
ref: 92150
BOLT,SOCKET,10X25
€ 3.50
92150A
921501407
ref: 92150A
BOLT
€ 2.00
