TAILLIGHT(S)

EN500A6 VULCAN500 1995 USA CALIFORNIA CANADA

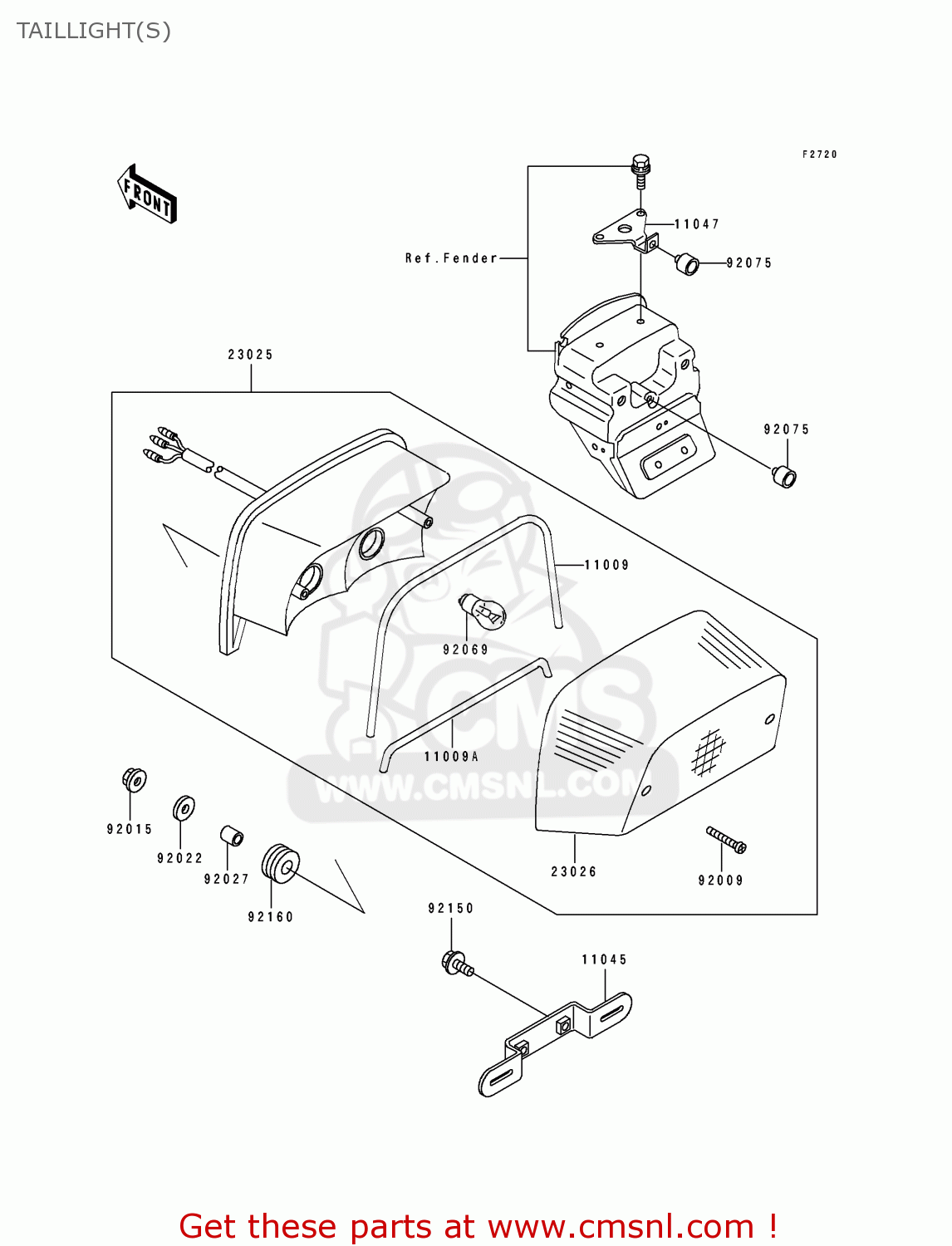

Taillight(s) diagram EN500A6 VULCAN500 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091811
ref: 11009

GASKET,TAIL LAMP LENS (NAS)

€ 6.00

11009A

110091812
ref: 11009A

GASKET,TAIL LAMP LENS (NAS)

€ 4.50

11045

110451387
ref: 11045

BRACKET,LICENSE

€ 11.00

11047

110471074
ref: 11047

BRACKET,REAR FENDER

€ 11.00

23025

230251199
ref: 23025

TAIL LAMP

€ 73.50

23026

230261122
ref: 23026

LENS,TAIL LAMP

€ 60.50

92009

920091506
ref: 92009

SCREW,TAPPING,4X30

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069059
ref: 92069

BULB,12V 32/3CP

€ 5.50

92075

92075035
ref: 92075

DAMPER

€ 3.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00

TAILLIGHT(S)

all assemblies
