REAR HUB
EN450A3 LTD450 1987 UNITED KINGDOM AR ST

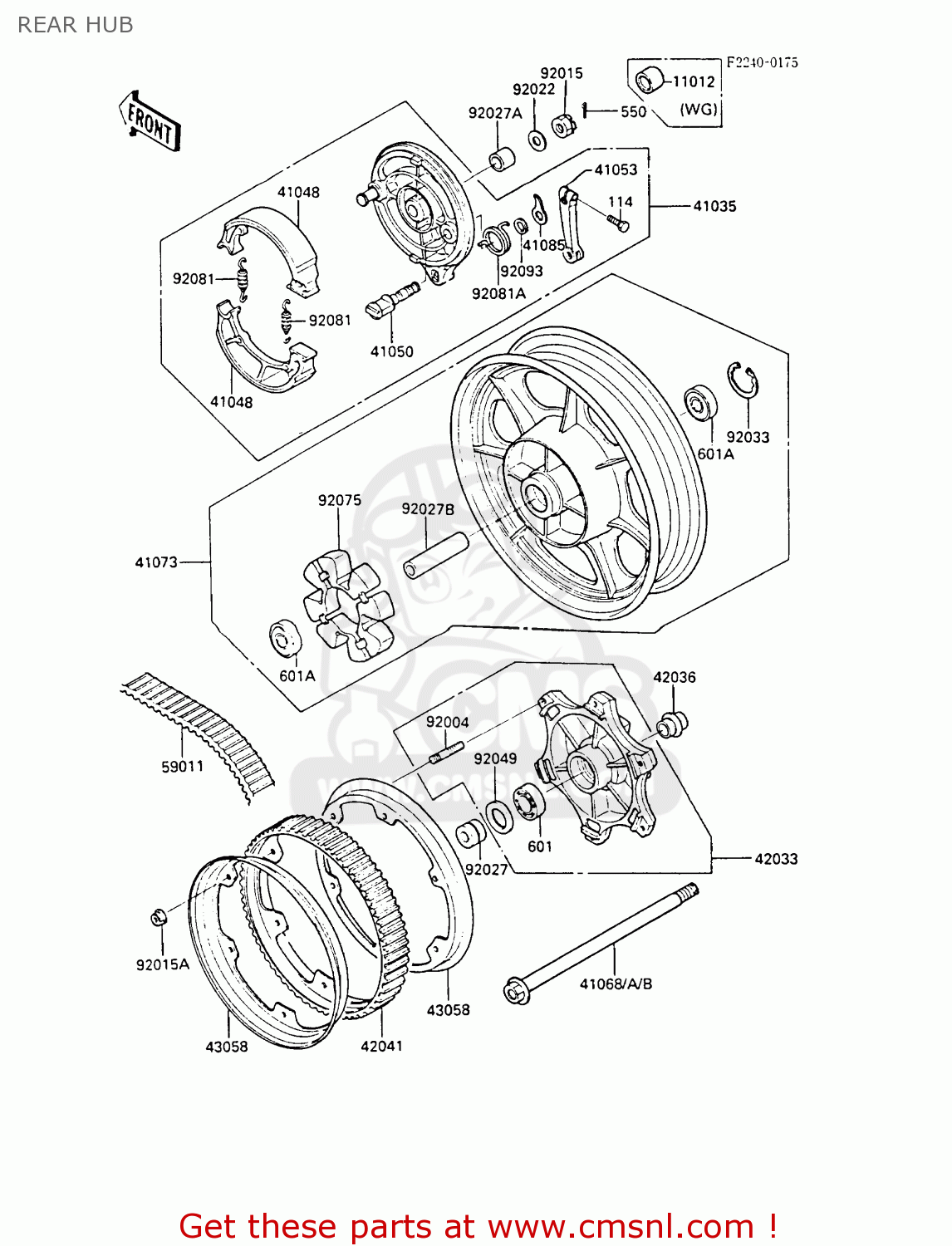

Rear hub diagram EN450A3 LTD450 1987 UNITED KINGDOM AR ST
REAR HUB EN450A3 LTD450 1987 UNITED KINGDOM AR ST
×
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205
ref: 601
BEARING-BALL,#6205C3
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
€ 32.50
41035
410351184
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 337.50
41048
410481059
ref: 41048
SHOE-BRAKE (MCA)
€ 26.00
41050
41050017
ref: 41050
CAM-BRAKE
€ 25.50
41053
42029039
ref: 41053
LEVER REAR BRAKE CAM
€ 37.00
41068A
410681205
ref: 41068A
AXLE,RR
€ 52.00
41073
41073130321
ref: 41073
WHEEL-ASSY,RR,F.BLACK
€ 493.00
41085
410851054
ref: 41085
INDICATOR
€ 9.00
42033
420331113
ref: 42033
COUPLING-ASSY,RR HUB
€ 256.50
42036
420361146
ref: 42036
SLEEVE,RR HUB,L=33
€ 34.00
42041
420411195
ref: 42041
SPROCKET-HUB,68T
€ 122.00
43058
430581054
ref: 43058
RING,HUB SPROCKET
€ 52.50
59011
590111051
ref: 59011
BELT,DRIVE,128T
€ 455.50
92004
920041145
ref: 92004
STUD,10X27
€ 5.00
92015
92015055
ref: 92015
NUT,16MM
€ 8.00
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92022
42046009
ref: 92022
WASHER-SLEEVE
€ 5.00
92027
920271368
ref: 92027
COLLAR,REAR AXLE,LH,L
€ 20.00
92027A
920271484
ref: 92027A
COLLAR,REAR AXLE,RH,L
€ 7.50
92027B
920271863
ref: 92027B
COLLAR,17.2X25X101
€ 19.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92049
92052006
ref: 92049
OIL SEAL WTC35527
€ 6.50
92075
920751687
ref: 92075
DAMPER,SHOCK,RR HUB
€ 54.50
92081
41049007
ref: 92081
SPRING-BRAK SHOE
€ 6.00
92081A
920811814
ref: 92081A
SPRING,BRAKE CAM LEVE
€ 6.50
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
€ 2.50
