WATER PUMP

EN450A1 LTD450 1985 EUROPE FR UK FG IT NR / LIQUID COOLED

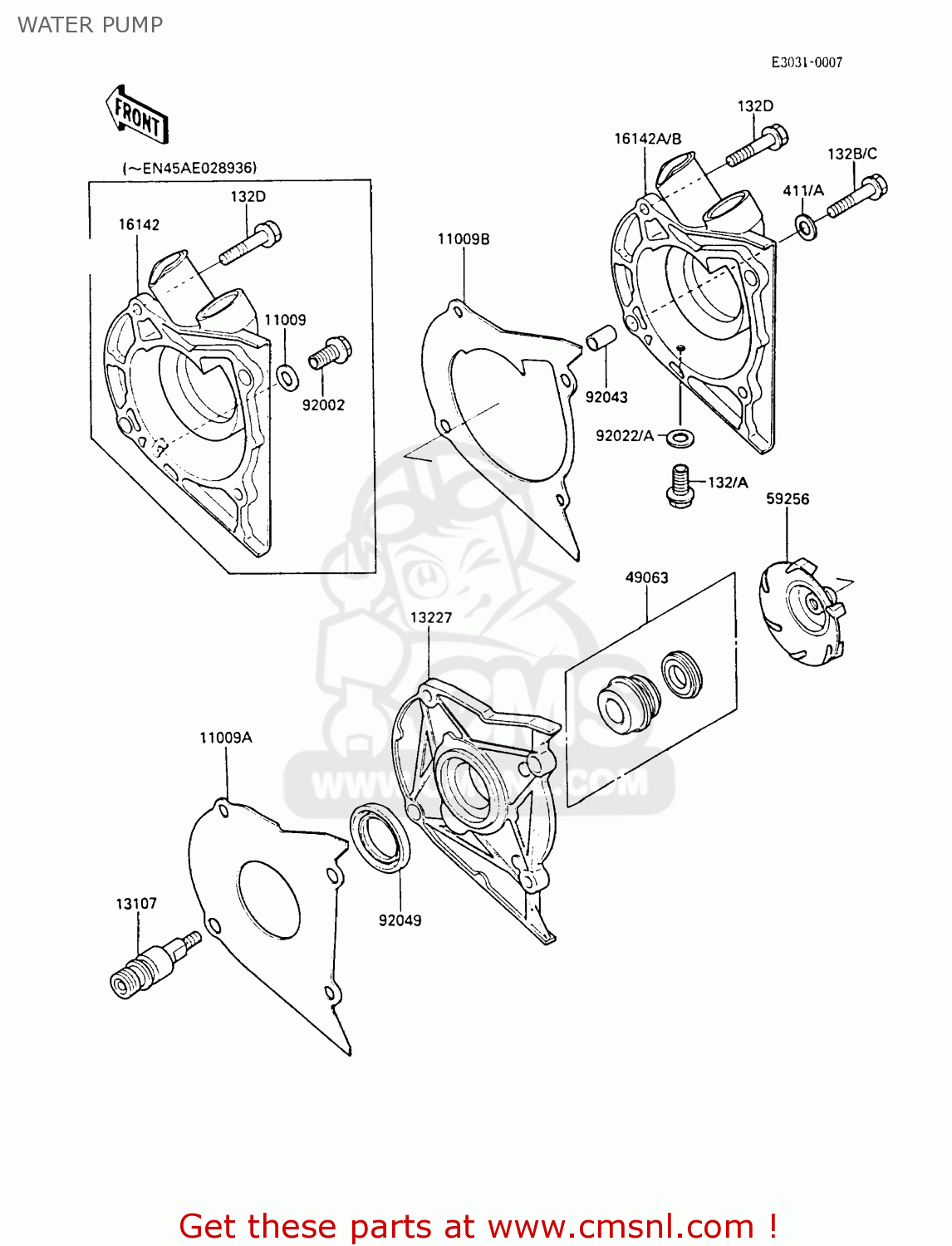

Water pump diagram EN450A1 LTD450 1985 EUROPE FR UK FG IT NR / LIQUID COOLED

prices are in EUR

ref

part #

description

quantity

132A

132E0612
ref: 132A

BOLT-FLANGED-SMALL

€ 3.50

132C

132E0630
ref: 132C

BOLT-FLANGED-SMALL

€ 3.00

132D

132E0635
ref: 132D

BOLT-FLANGED-SMALL

€ 3.00

411A

411B0600
ref: 411A

WASHER-PLAIN,6MM

€ 0.50

11009

110091344
ref: 11009

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11009A

110091491
ref: 11009A

GASKET,PUMP HOUSING (MCA)

€ 7.50

11009B

110091492
ref: 11009B

GASKET,PUMP COVER (MCA)

€ 9.50

13107

131071203
ref: 13107

SHAFT,IMPELLER

€ 38.50

13227

132271055
ref: 13227

HOUSING,WATER PUMP

€ 58.00

16142

161421062
ref: 16142

COVER-PUMP

€ 98.00

16142B

161421079
ref: 16142B

COVER-PUMP

€ 102.50

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561060
ref: 59256

IMPELLER

€ 24.00

92002

920021538
ref: 92002

BOLT,BANJO,8X14

€ 4.00

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491215
ref: 92049

SEAL-OIL

€ 10.00
